Klein Tools VDV501-851 Scout Pro 3 Cable Tester Kit
Description
Description

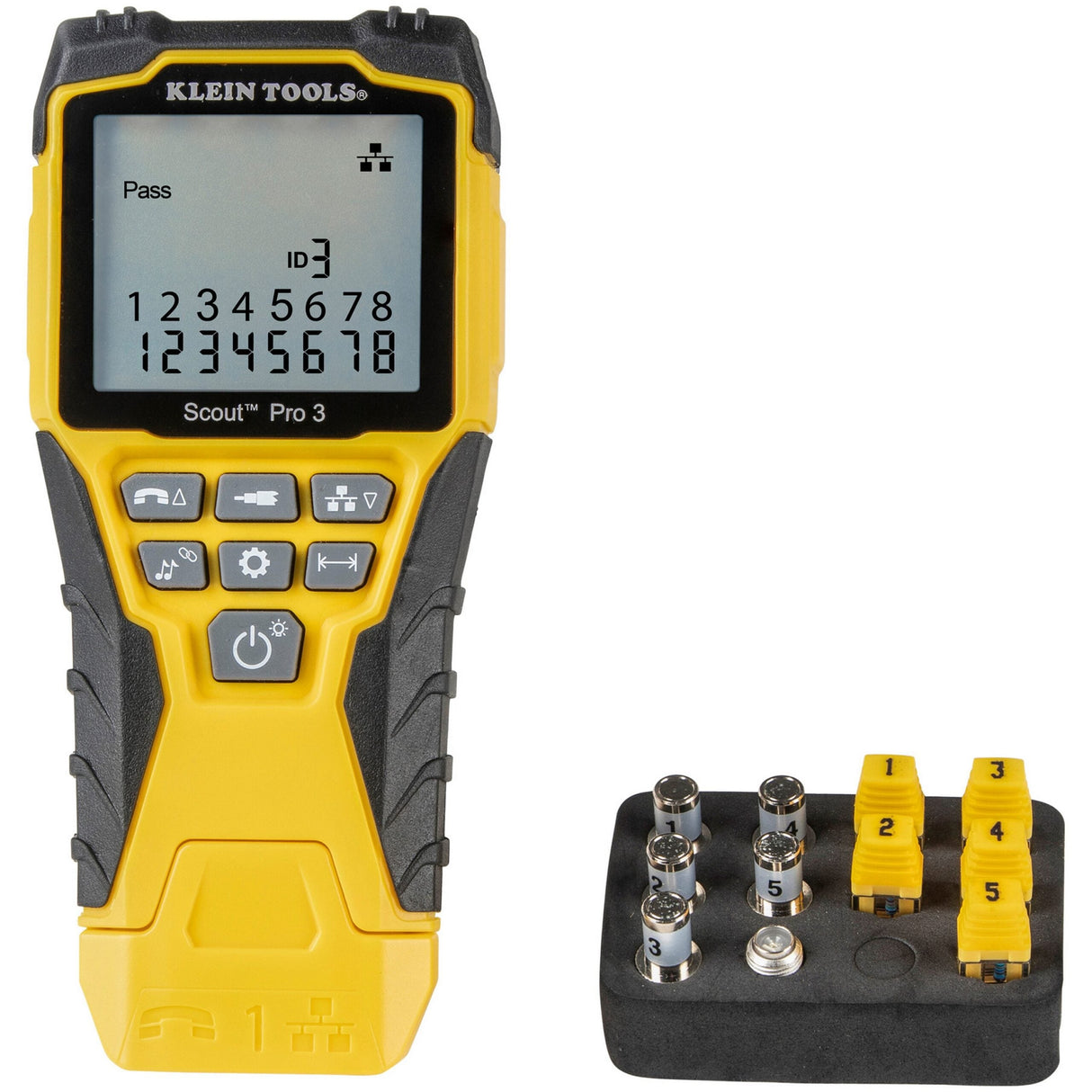

Klein Tools VDV501-851 Scout Pro 3 Cable Tester Kit
The Klein Tools VDV501-851 Scout Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Key Features
- Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) _ terminated cables with clearly defined results
- Measure cable length up to 2000 feet (610 m)
- Test for Open, Short, Miswire or Split-Pair faults
- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
- Hub blink mode to identify port location on a hub or a switch
- LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step
- Includes voltage warning, shield detection, auto power off, low battery indicator and a self-storing remote
- Auto Power-off feature to conserve battery life (9V included)
- Kit includes: Scout Pro 3 Tester, (1) self-storing remote, (5) LanMap RJ45 locator remotes, (5) CoaxMap F-connector locator remotes, (1) coax F-connector, manual and 9V battery
Technical Specifications
Type
Twisted Pair, DATA, Voice, LAN, and Coaxial
Application
Cable Testing
Special Features
Measures Cable Length; Backlit LCD; Hub Blink
Cable Type
Data
Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7
Coaxial
RG59, RG6/6Q
Material
Plastic and Metal
Test-n-Map ID Remotes
(1) Self-Storing
Location ID
(5) RJ45 Data and (5) F-Coax connector Locator Remotes
Batteries
9V Alkaline
Battery Life
50 Hours Active
Drop Protection
2 m
Supported Remotes
18
Connection & Adapter Types
RJ11, RJ12, RJ45, Coax F
Display
Backlit LCD
Multiple Style Tone Generator
Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected
Open, Short, Miswire
Test & Measure Types
Ethernet / Data and Coaxial
Standard
CE
Dimensions (LxHxW)
7 x 3 x 1.25” (17.8 x 7.6 x 3.2cm)
Weight
1.2Lbs (0.54kg)
Item Includes
1x Tester
1x Self-Storing Remote
5x LanMap RJ45 Locator Remotes
5x CoaxMap F-connector Locator Remotes
1x Coax F-adapter
1x Manual
1x 9V Battery
