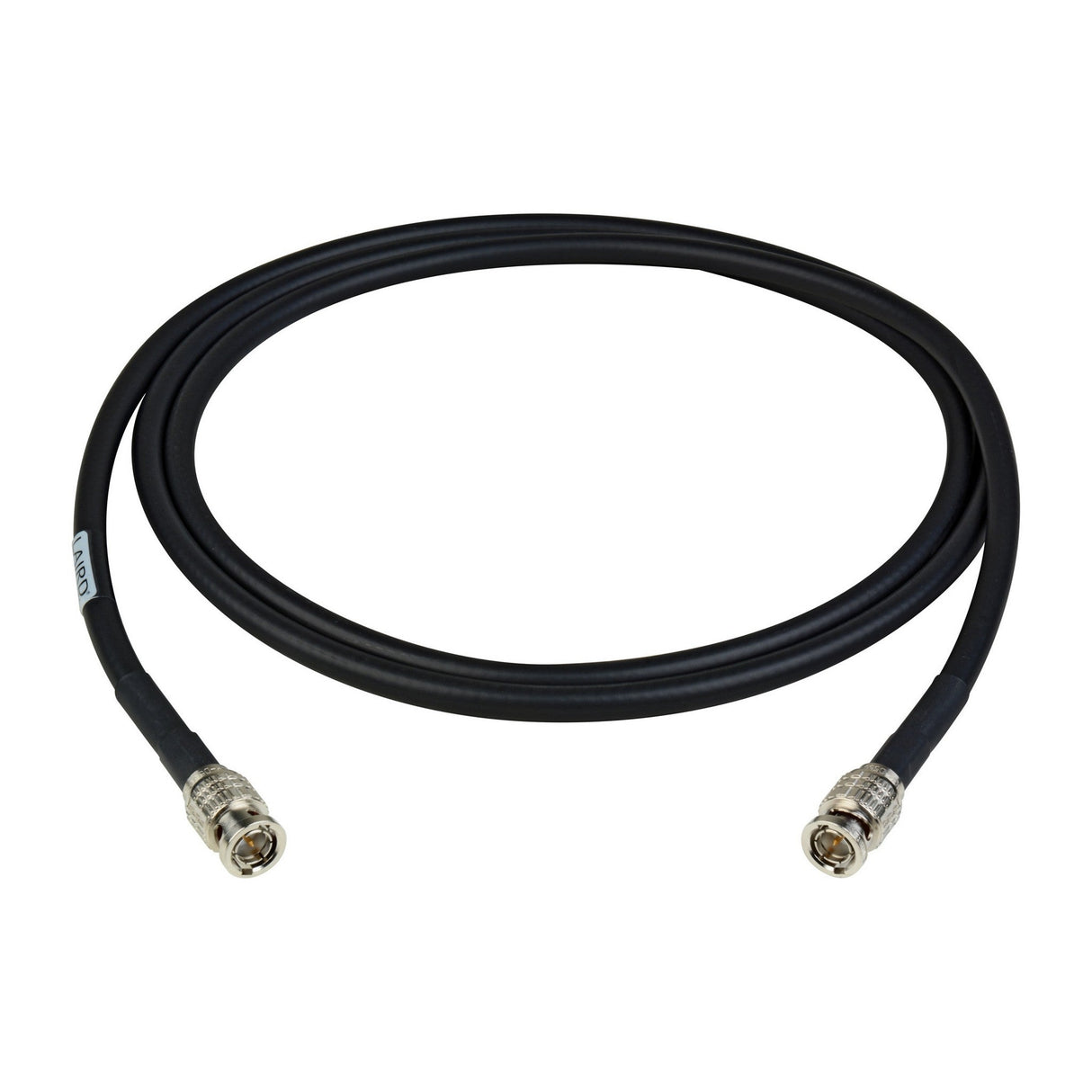

Laird 12GSDI-B-B-050 12G SDI/4K UHD Video BNC Cable, 50-Feet
Advanced BNC Coaxial Cables for 12G / 4K UHD Applications in Broadcast TV, Sports, Live Events, and Commercial Production Workflows
Laird offers the most advanced BNC coaxial cables in the market, specifically tailored for 12G / 4K UHD applications in broadcast TV, sports, live events, and commercial production workflows. These cables effectively transmit 12G-SDI signals up to 325 feet, and are suitable for new facility installations and broadcast towers, as they can handle future video formats and signals.
Features of the Laird Coaxial Cables
These coaxial cables boast enhanced attenuation characteristics that enable the transport of 12G signals at much greater distances than comparable-sized coax. They are fully compliant with SMPTE ST-2082-1 and are hand-crafted with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD BNC connectors. With a superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz, and 26 dB @ 3 GHz, these cables are perfect for 12G, 6G, and 3G systems. They are designed for Ultra High Definition and 4K signal transmission.
12G-SDI Maximum Distance
Laird certifies this cable to work at a maximum transmission distance of 250 Feet for 12G-SDI, even though Canare may show this distance as 300 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
Key Features
- Laird guarantees the functionality of this cable up to a maximum transmission distance of 250 Feet for 12G-SDI, even though Canare may claim a distance of 300 Feet.
- To meet the Laird standard, the cable must maintain 100% signal integrity without any CRC errors.
- Your 12G-SDI ST 2082 signals can operate without issues at or beyond the lengths certified by the manufacturer.
- However, the presence of CRC errors can result in drops in audio, video, meta, and ancillary data.
- In most cases, video integrity remains unaffected at the distances recommended by the original equipment manufacturer (OEM).
- The cable is specifically designed for UHD and 4K video transport.
- It supports various SDI formats, including 1.5G, 3G, 6G, and 12G.
- Complies with SMPTE 2082-1 standards.
- Suitable for fixed installations, cable reel deployment in studios, trucks, and permanent setups.
- The cable offers excellent attenuation properties and is terminated with 12G 75Ω BNC connectors. Additionally, it is flame retardant for added safety.
Technical Specifications
Canare Certified Max Transmission Distance
330 Feet for 12G/4K
Laird Certified Max Transmission Distance
250 Feet for 12G/4K
Canare 12G-SDI / 4K UHD Coax Single Channel BNC Cable
SMPTE ST-2082-1 Compliant for 12GSDI transmission
Return loss
15dB @ 12GHz, 20dB @ 6 GHz, 26dB @ 3GHz
Insulation Resistance
5000MΩ
Corrosion Resistance
50mΩ
Inner Conductor
Annealed Copper
Outer Conductor 1
Copper Laminated Tape
Outer Conductor 2
Tinned Annealed Copper Braid > =91%
Insulation
Foamed Polyethylene
Warranty
1 Year
