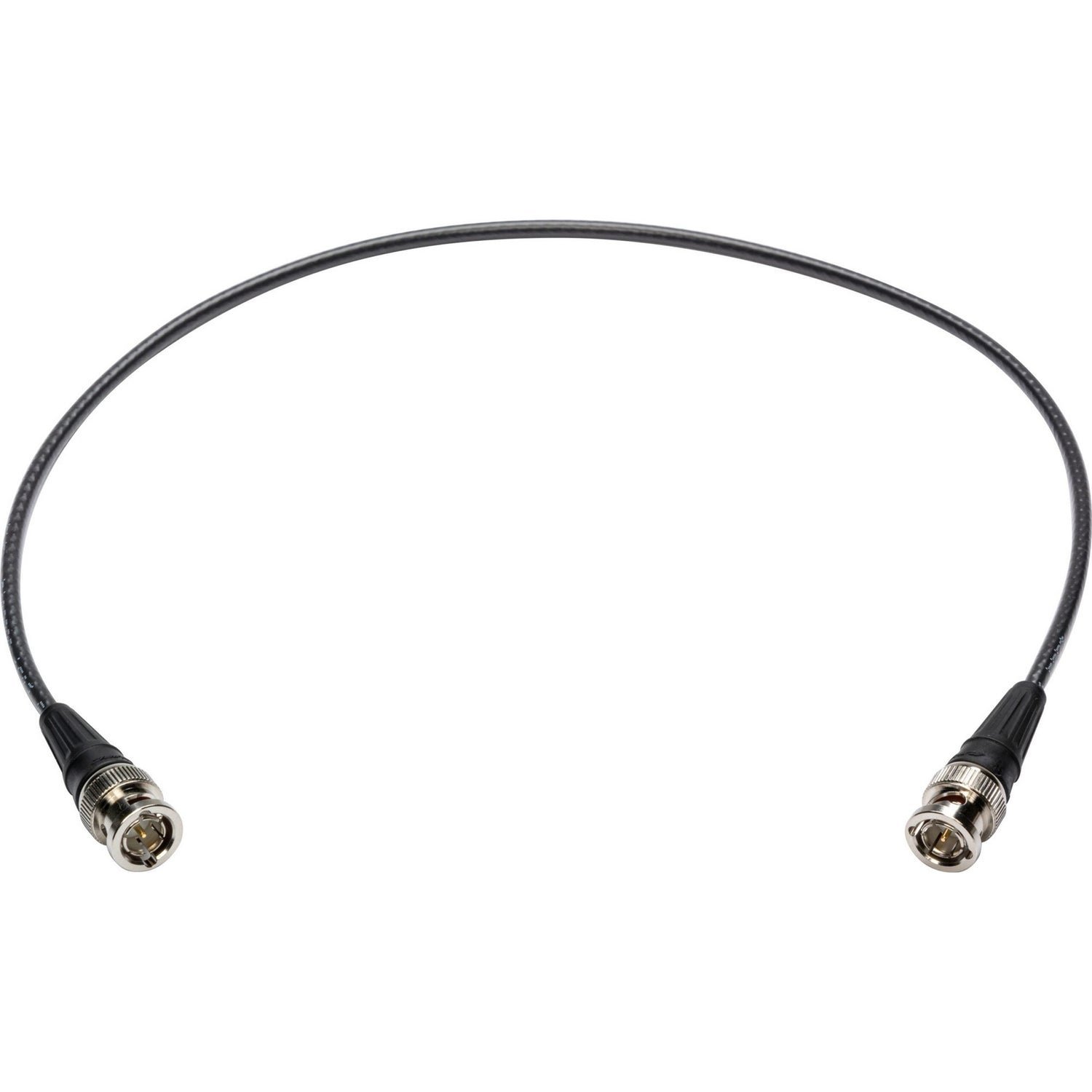

Laird 4855R-B-B-BK-003 Mini-RG59 12G-SDI/4K UHD Single Link BNC Cable, 3-Foot

Laird 4855R-B-B-BK-003 Mini-RG59 12G-SDI/4K UHD Single Link BNC Cable, 3-Foot

Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver-plated copper center conductor and a low-profile diameter of less than 1/8” making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.

Key Features

• Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable Single Link BNC Simplifies Installations Optimized Transmission Distance for UHDTV Transmits up to 150 ft/45m Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

Technical Specifications

Warranty
1 Year
