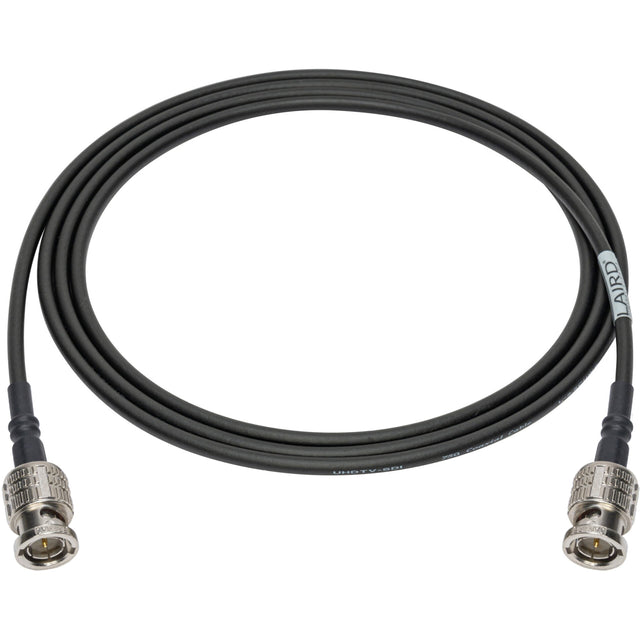

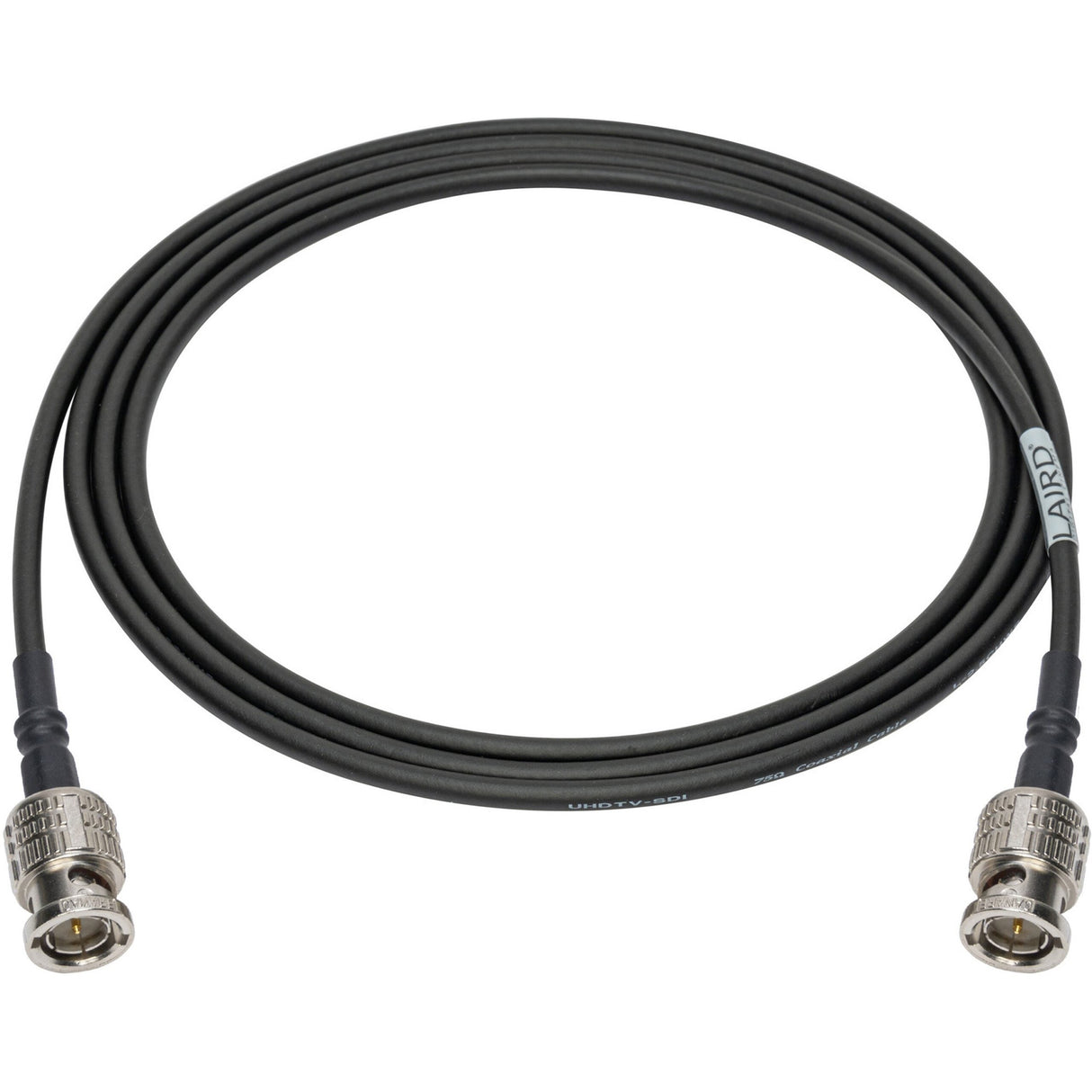

Laird L25CHWS-BB-006 L-2.5CHWS Ultra Slim 12G-SDI Cable BNC Male to Male, 6-Foot

Laird L25CHWS-BB-006 L-2.5CHWS Ultra Slim 12G-SDI Cable BNC Male to Male, 6-Foot

If you're needing a super low profile 12G-SDI BNC cable for your outside broadcast trucks and studio patches, the Laird L25CHWS series sets the gold standard! This series is based on Canare’s L-2.5CHWS 12G coax which is incredibly flexible because of its stranded center conductor. It also features a very slim 0.165” O.D. All of this adds up to a lightweight 12G BNC cable that’s easy to patch in tight spaces.

Key Features

• Flexible, Lightweight, Thin Canare Coaxial Cable Designed for Repeated Bending
• Highly-Foamed Insulation for Lower Attenuation
• High-Density Double-Braided Shield
• Low Loss Canare BNC Connectors
• Superior Cable Pull Strength

Technical Specifications

24 AWG Canare L-2.5CHWS Cable
Jacket
PVC Foam Polyethylene Dielectric
Stranded Annealed Copper Center Conductor
Dual Tinned Annealed Copper Braid Shields
Characteristic Impendence
75 OHM
Nominal O.D.
0.165 inch
Attenuation
15.1 dB/100 Meters @ 135MHz
Connectors
Impedance 75 Ohm
