Laird MICRO-VPATCH-010BE 12G-SDI Micro Video Patch Cable, Light Blue, 10-Feet

Laird MICRO-VPATCH-010BE 12G-SDI Micro Video Patch Cable, Light Blue, 10-Feet

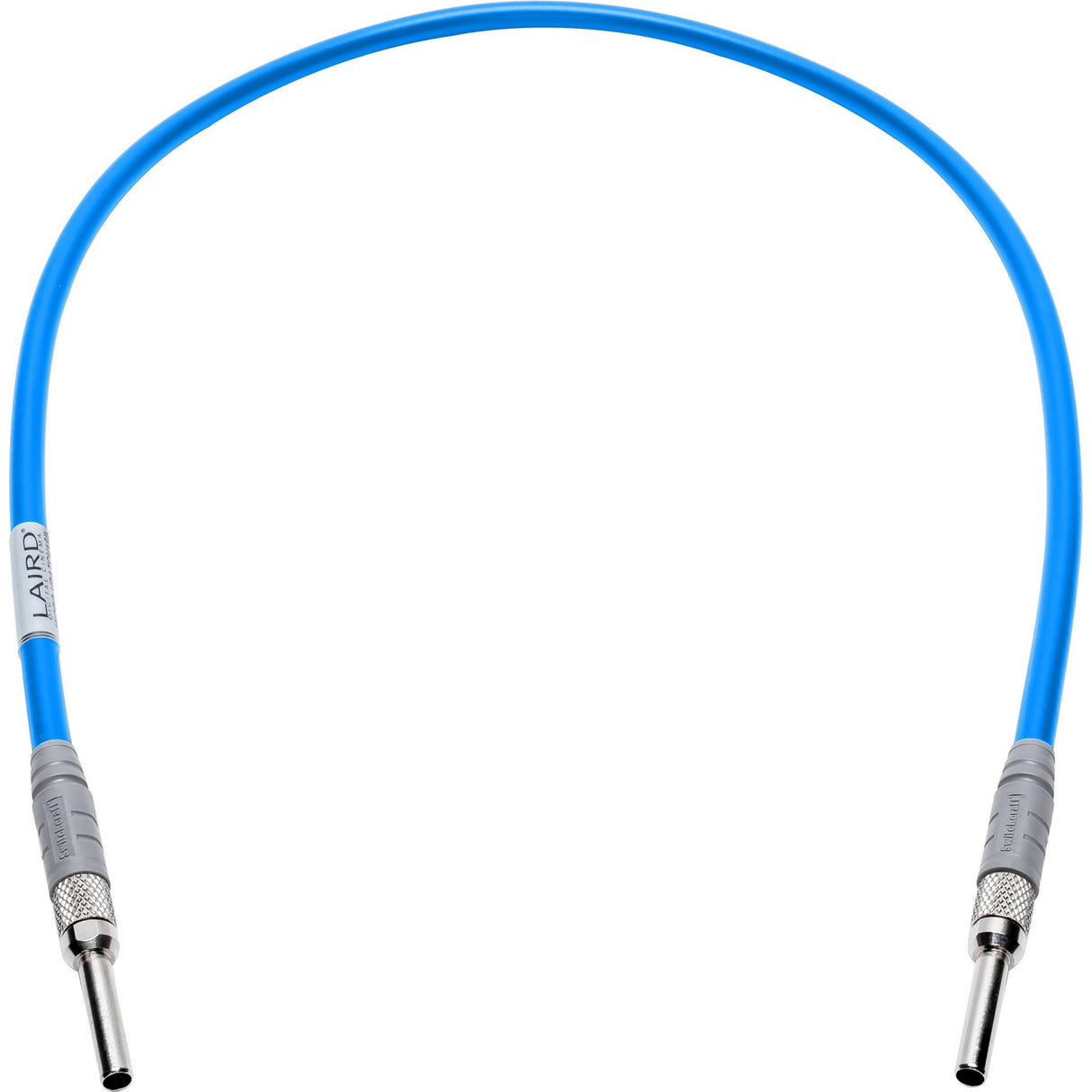

Coming from the broadcast video industry’s most trusted source in video cables, the Laird MICRO-VPATCH Series are the first choice in Micro Video Patch cords for 12Ghz panels. These patch cables are fully compatible with AVP, Bittree and Switchcraft brand video patchbays and ready to handle your critical video signals in 12G-SDI applications. Cables are a precision hand crafted work of art utilizing Belden 4505R coax and Switchcraft 2P7032 micro video patch plugs. Laird MICRO-VPATCH are lightweight and perfect in both studio and OB truck use.

Key Features

• Designed for UHD and 4K Video Transport
• 12 GHz, 4K UHD Precision 75-Ohm Video Cable
• Single Link Micro Video Patch Plug Simplifies Installations
• Optimized Transmission Distance for UHDTV
• Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
• Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
• Sweep tested 5 MHz to 12 GHz

Technical Specifications

Belden 4505R 20 AWG 12G SDI Coax Cable with PVC Jacket
Mechanical Characteristics
Operating Temperature Range
-30 Degrees C To +75 Degrees C
Max. Recommended Pulling Tension
52 lbs.
Min. Bend Radius/Minor Axis
2.500 in.
Electrical Characteristics
Impedance (Ohm)
75
Inductance (µH/ft)
0.107
Capacitance (pF/ft)
16.100
Nominal Velocity of Propagation (%)
83.000
Nominal Delay (ns/ft)
1.220
Nom. Conductor DCR @ 20 Degrees C (Ohm/1000 ft): 10.200
Nominal Outer Shield DCR @ 20 Degrees C (Ohm/1000 ft): 3.400
Max. Operating Voltage - UL
300 V RMS
Physical Characteristics
# Coax: 1
AWG
20
Stranding
Solid
Conductor Material
Silver Plated Copper
Dia. (in.)
0.032
Insulation Material/ Diameter (in.)
Gas-injected FHDPE - Foam High Density Polyethylene / .145”
Outer Jacket Material
PVC - Polyvinyl Chloride
Overall Nominal Diameter
0.233 in.
Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Patch Plug
Meets SMPTE 2082-1
Impedance (Ohm)
75
Contact Resistance
Less than 50 Milliohms
Life Cycle
5,000 min
Plug Barrel
Copper Alloy/Nickel Plated
Sleeve and Ferrule
Copper Alloy/Nickel Plated
Contact Pin
Copper Alloy/Gold Plated
Insulators
Teflon
Boot
Thermoplastic Elastomer, UL94-VO, Gray
Warranty
1 Year
