Leader  |  SKU: LEA-LV5350

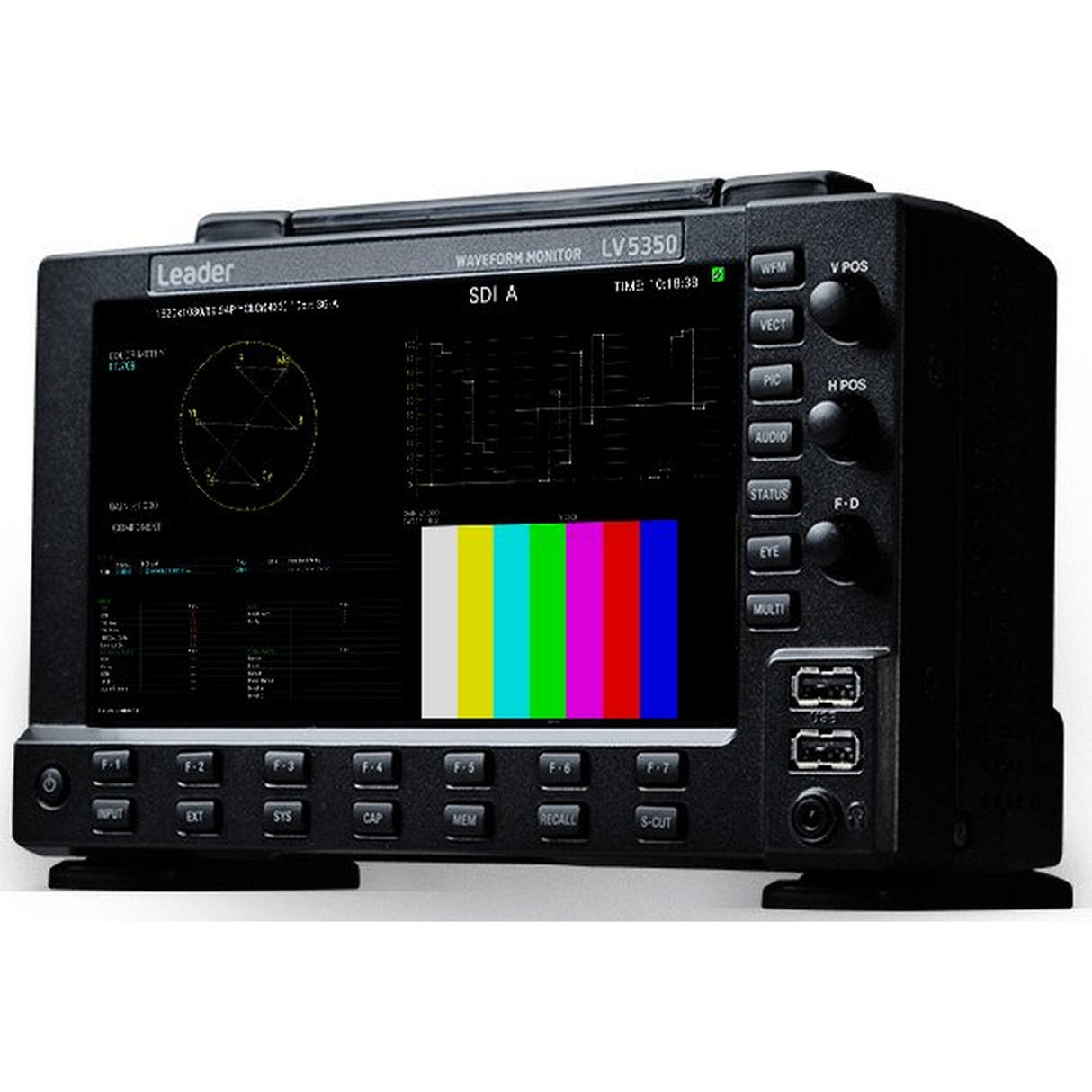

Leader LV5350 Waveform Monitor with SDI Inputs

$7,82500
🚚 Order within the next 2 hours, 15 minutes for delivery by 22 May, 2024.

Condition: New



Description

Leader LV5350 Waveform Monitor with SDI Inputs

The Leader LV5350 waveform monitor offers a 7-inch HD screen display in a compact 3 x 1/2 RU package that can operate on AC or DC. Waveform, vector and picture with 4K 12G-SDI and audio options . Easy menu operation with touch screen, mouse, and front panel button controls.

With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function.

Various video signals include video signal waveform display, vector display, picture display 5 BAR display, CIE chromaticity diagram display, CINELITE, etc. In addition to the various displays, freeze error,Black error, gamut error detection Function etc. Quality control (QoE) of video signals Functions Features are equipped.

For audio signals, SDI signals and audio signals superimposed on SDI signals can be displayed on a level meter. Furthermore, Lissajous display, mute, clip error detection, etc. are available. Audio format is compatible with L-PCM.

Key Features

  • The LV5350 supports SD, HD, 3G, and 12G- SDI single link formats.
    Custom Layout
  • User customizable screens allow displays to be arranged as needed.
    SDI Signal Generation
  • Accurately verify equipment and signal paths with the HD to 12G-SDI generator.
    HDR
  • Evaluate content for both SDR and HDR levels. Includes HDR Cinezone, which uses false colors on the picture to highlight what areas have HDR content.
    CIE Display
  • Quickly see if content falls within BT.709, BT.2020 or DCI P3 color space.
    Focus Assist
  • A proprietary algorithm allows accurate assessment of focus even in difficult, low-contrast lighting environments, saving time on set.

Technical Specifications

External synchronize input terminal
Input terminal: BNC terminal
Number of input terminals: 1 line 2 terminals
Input impedance: 15 k OHM Passive loop through
Input return loss: 30 dB or more (50 kHz to 30 MHz, 75 OHM termination)
Maximum input voltage: +/- 5 V (DC + peak AC)
Input signal: Ternary synchronization signal or NTSC/PAL, black burst signal, 10 Field ID correspondence
Function: SDI reference signal input for video signal waveform display and phase difference display

Headphone output terminal - Output terminal LV5300/LV5350
3.5 mm Mini jack 1 terminal (stereo)
Output signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)
Display (LV5300/LV5350)
Liquid crystal display: 7 type TFT color liquid crystal
Resolution: 1920x1080
Refresh rate: 60 Hz, 59.94 Hz, 50 Hz (Free run or frequency synchronization to external synchronization signal)
Touch panel: Electrostatic capacity type touch panel
Environmental conditions
Operating temperature range: 0 to 40 °C
Operating humidity range: 85% RH or less (with no condensation)
Performance guarantee temperature range: 10 to 30 °C
Usage environment: Indoors
Usable altitude up to 2,000 m
Overvoltage category: I
Pollution degree 2
Power supply: Voltage DC 10 to 18 V
Dimensions(W x H x D): LV5300 8.46 inch x 5.19 inch x 3.34 inch (215 x 132 x 85 mm)
