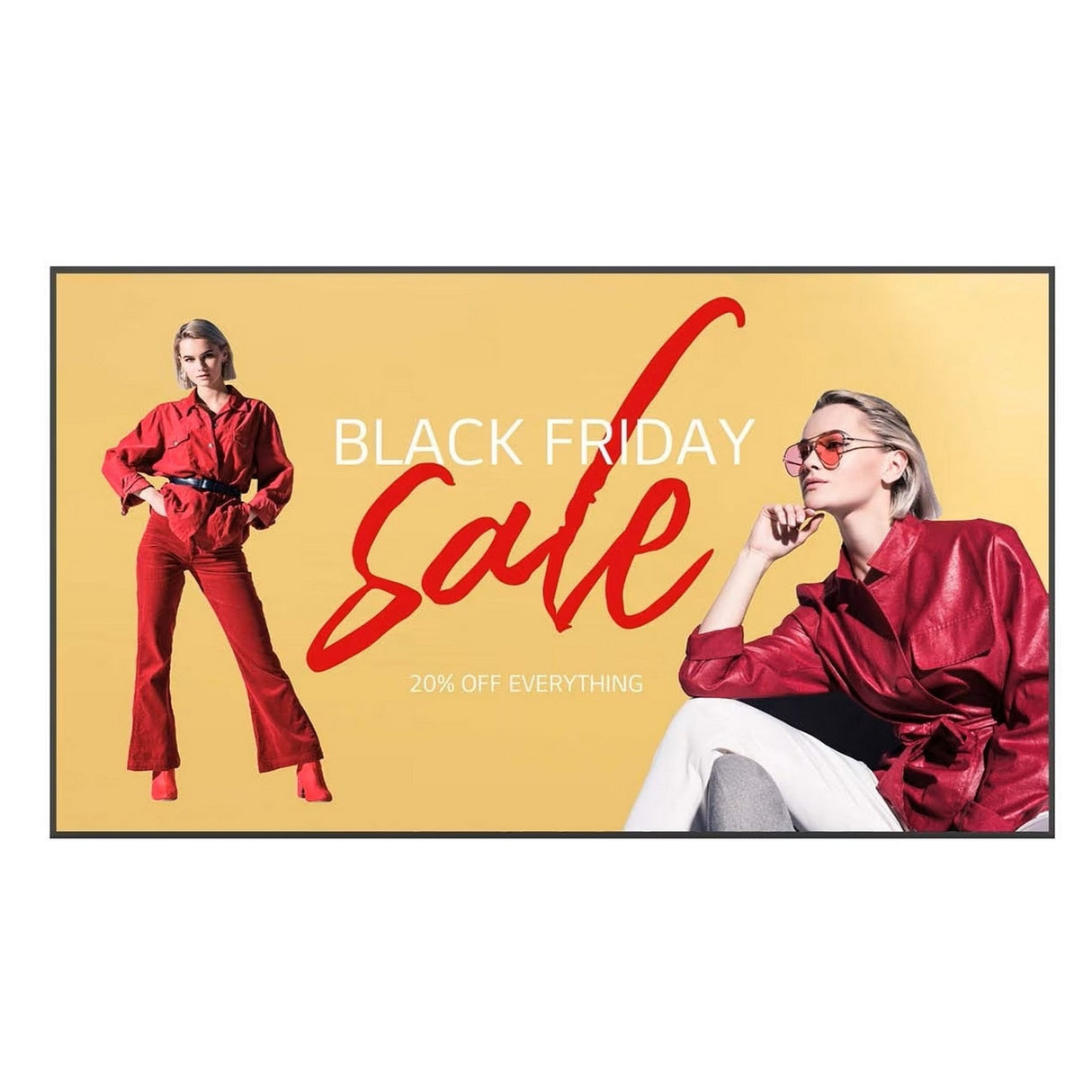

LG 110UM5K 110-Inch UHD Large Screen Signage Display with webOS Platform

LG 110UM5K 110-Inch UHD Large Screen Signage Display with webOS Platform

Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
* Internal Built-in Speaker Support (L/R max 10 W)

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Key Features

• Brightness : 500 nit (Typ.)
• Resolution : ULTRA HD (3,840 x 2,160)
• Bezel : 17 mm (Even bezel)
• Built-in Speaker (10 W + 10 W)
• Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor

Technical Specifications

Screen Size
110"Panel Technology
ADS
Back Light Type
DirectAspect Ratio
16 : 9
Native Resolution
3,840 × 2,160 (UHD)
Refresh Rate
120 Hz
Brightness (Typ.)
500 nit
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color gamut
DCI-P3 88%
Viewing Angle (H x V)
178 x 178
Color Depth
1.07 Billion Colors (8 bits + FRC)
Response Time
8 ms (G to G)
Surface Treatment (Haze)
0.01%
Lifetime
50,000 Hrs (Min.)
Operation Hours (Hours / Days)
16 / 7
Portrait / Landscape
No / Yes
Bezel Color
Black
Bezel Width
17 mm (Even Bezel)
Weight (Head)
80kg
Packed Weight
110kg
Monitor Dimensions (W × H × D)
2,474 × 1,408 × 99 mm
Carton Dimensions (W × H × D)
2,680 × 1,730 × 320 mm
Handle
Yes
VESA™ Standard Mount Interface
1,500 × 600 mm
Operation Temperature
0°C to 40°C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-In Power
Typ./Max.
540 W / 600 W
Smart Energy Saving (70%)
378 W
DPM
0.5W
Power off
0.5W
BTU (British Thermal Unit)
1,843 BTU/Hr (Typ.), 2,047 BTU/Hr (Max.)
OPS Type Compatible
No
OPS Power Built In
No
Software Compatibility
SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS
Input
HDMI (3 (HDMI1/2 : HDCP 2.2/1.4, HDMI3)), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4 Pin Phone-jack), RJ45 (LAN), IR In, USB 2.0 Type A
Output
HDMI Out, Audio Out, RS-232C Out (4 Pin Phone-jack), Daisy Chain (Input HDMI, DP, DVI / Output HDMI)
Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ErP
Yes (NewErP)
Basic
Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, Regulation Book, Phone to RS-232C Gender
Optional
No
