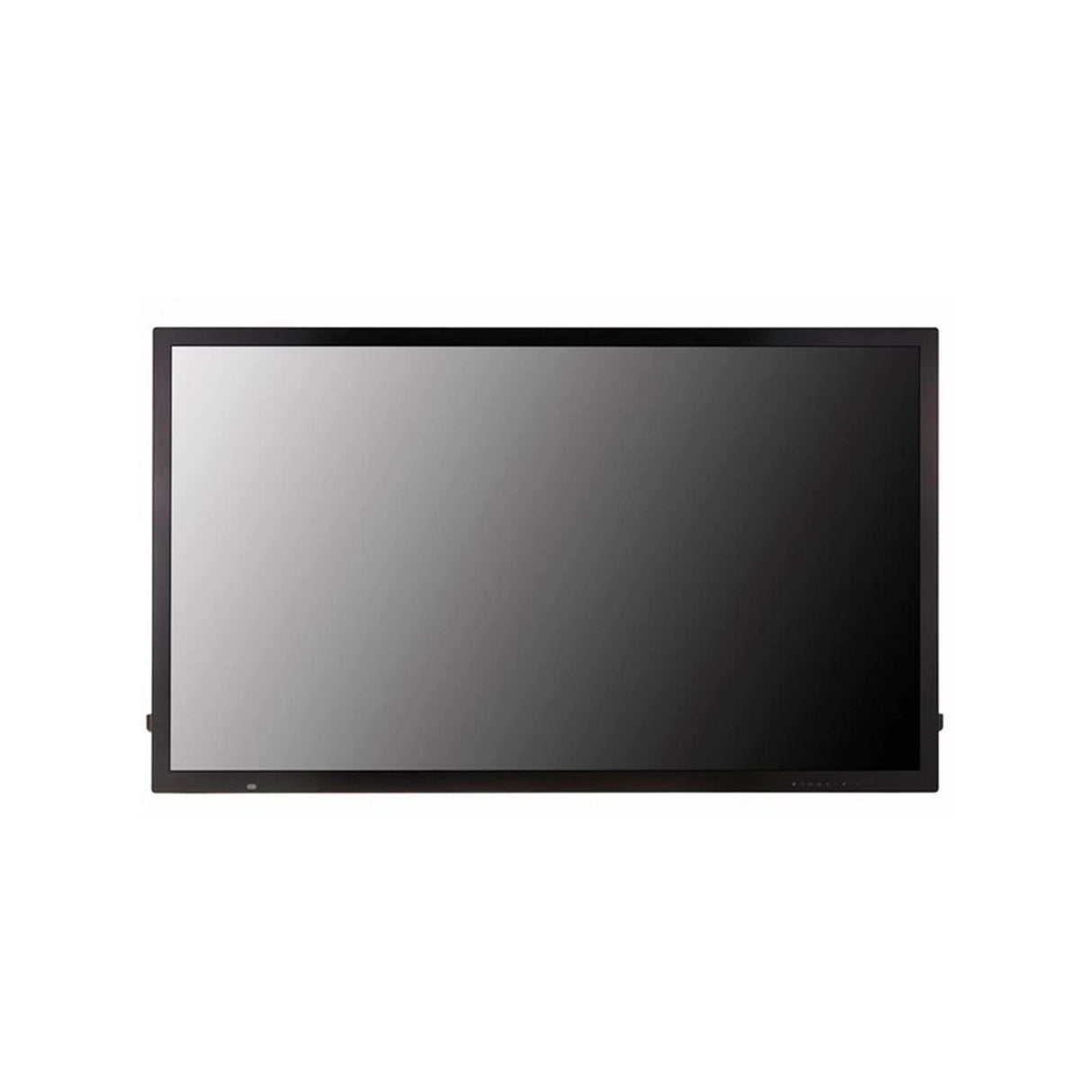

LG 55TC3CG-H 55 Inch IPS UHD Multi Touch Screen Digital Display

LG 55TC3CG-H 55 Inch IPS UHD Multi Touch Screen Digital Display

The 55TC3CG-H offers high touch performance and great color with vivid details that can seen at virtually any angle. The screen accurately recognizes extremely small touch points and instantly shows a response. This means that SIs can compose GUI icons in a variety of sizes on the 55TC3CG-H and users can fully enjoy their touch experience with no lagging. Capable of recognizing up to 40 point-touches at once, the screen provides multiple users a smooth and natural sense of touch. Unlike infrared touch screens, the 55TC3CG-H accurately detects touch points even at the corners or edges of the display. This allows a variety of touch-based customer services to be provided throughout the entire screen. Touch screens in public spaces can be scratched in heavy use or even abuse situations. The 55TC3CG-H has an advanced tempered screen coating to minimize scratches. In addition, its anti-shatter glass is designed to minimize harm to the user, even in the event the product being subject to abuse. The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on the circuit board virtually eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.

Key Features

• IPS Display with wide viewing angles
• Multi Touch Screen (Up to 40 points)
• webOS 4.1 Smart Signage Platform
• Anti-shatter Glass & Conformal Coating
• SuperSign CMS, Control/Control+

Technical Specifications

DISPLAY
Screen Size
55”
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
350nits (Typ.)
Contrast Ratio
1100:1
Color gamut
NTSC 72%
Viewing Angle (H x V)
178 x 178
Response Time
8ms (G to G)
Surface Treatment (Haze)
28%
Lifetime Operation
50,000 Hrs (min)
Operation Hours (Hours/Day)
24/7
Orientation
Portrait or Landscape
TOUCH PANEL
Available object size for touch
6mm
Reponse Time
10ms
Accuracy
2mm 0.2mm
Interface
USB 2.0
Protection Glass Thickness
3.2T (Anti-Glare)
Protection Glass Transmission
83%
Operating System Support
Win 8.1, Win 10, Linux (Kernel v3.0 above)
Multi touch point
Max 40 Points
CONNECTIVITY
HDMI
Yes (2), HDCP2.2/1.4
DP
Yes (1), HDCP2.2/1.3
RS232C In
Yes (1)
RJ45 (LAN)
Yes (1)
IR In
Yes (1)
USB
USB2.0 Type A (2)
DP Out
Yes (1), Input HDMI1/2/DP/OPS
Audio Out
Yes (1)
Touch USB
USB2.0 Type-B (1)
External Speaker Out
Yes (6ohm)
RS232C OUT
Yes (1)
OPS type compatible
Yes (Piggyback)
MECHANICAL
Bezel Color
Black
Bezel Width
33.5/33.4/33.4/38 mm
Weight
78.0 lbs/34.5kg
Shipping Weight
87.7 lbs/39.8kg
Monitor Dimension (W x H x D)
50.3 x 29.6 x 1.8 in/1276.4 x 751.9 x 44.9 mm
Shipping Dimensions (W x H x D)
55.5 x 34.6 x 8.1 in/1410 x 880 x 207 mm
VESATM Standard Mount Interface
300 x 300
Power Consumption (Smart Enegy Saving)
74W
Power Consumption (DPM / Power Off)
Less than 0.5W
HARDWARE FEATURES
Internal Memory
8GB (System 4GB + Available 3.6GB)
Temperature Sensor
Yes
Auto Brightness sensor
Yes
Local Key Operation
Yes
Operation Temperature
32F to 104F/0C to 40C
Operation Humidity
10% to 80%
SOFTWARE FEATURES
webOS Signage
Version 4.1
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS-232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes
Video Tag
Yes
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Inside
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
ELECTRICAL
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-In Power
Power Consumption (Typ.)
105W
Power Consumption (Max.)
145W
Power Consumption (Smart Enegy Saving)
74W
Power Consumption (DPM / Power Off)
Less than 0.5W
CERTIFICATIONS
FCC (Regulatory)
FCC Class "A" (NRTL)
ErP (Environmental)
EPA 8.0
