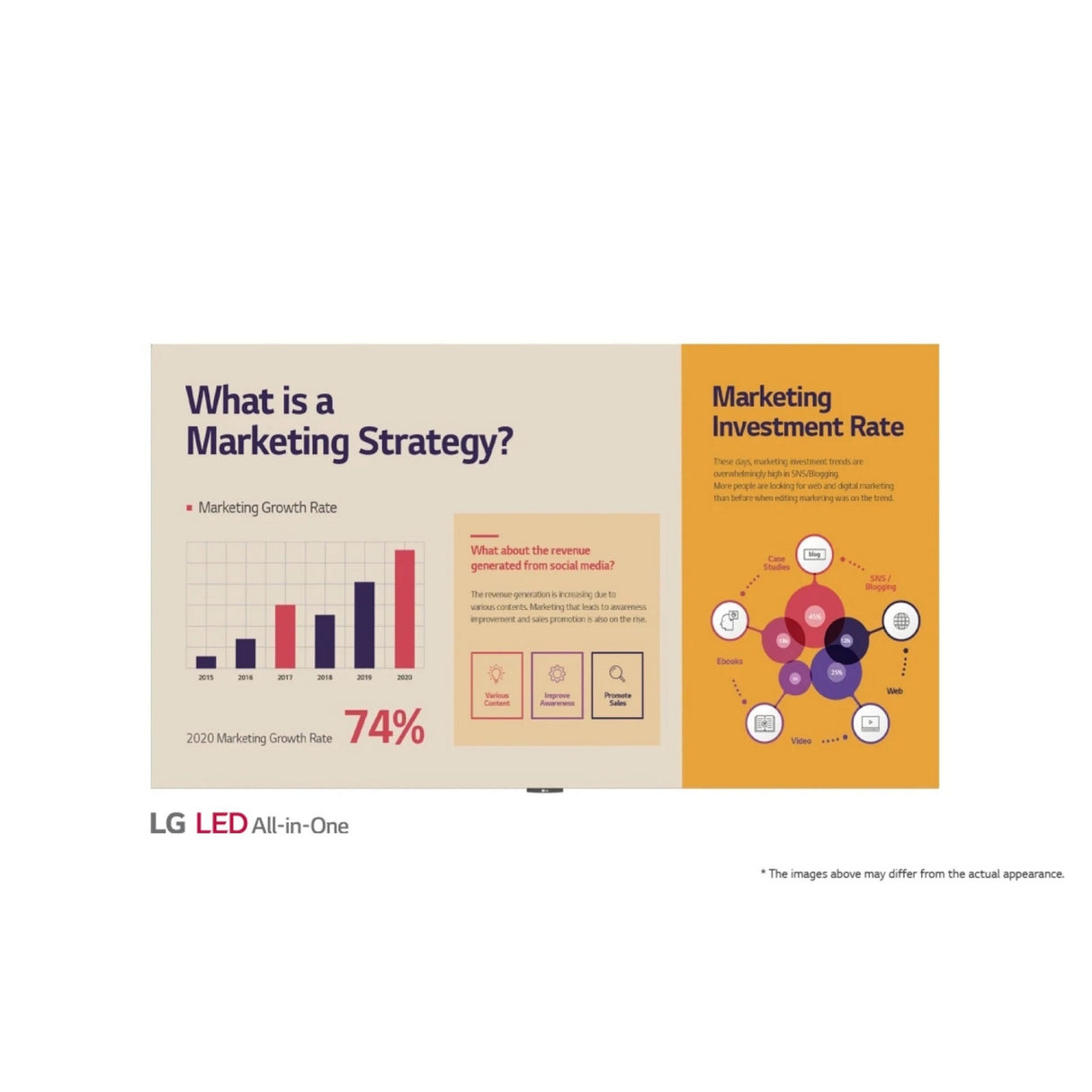

LG LAEB015 136-Inch All-in-One Essential Full HD DV LED Screen

LG LAEB015 136-Inch All-in-One Essential Full HD DV LED Screen

LG's All-in-one Essential series is a 136-inch large LED screen which includes an embedded controller. After a simple installation process, all you need to do is to turn on the screen with a remote control like a home TV.

Accessory Kits
The 136” All-in-one comes with the flight case which includes the landscape wall mount and tools for installation. The motorized stand is optional. With this stand, you can adjust the height of the screen including stand from 2.0 m to 2.5 m.

Easy Installation
The installation process for the 136” All-in-one Essential series is simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable.

Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Simple Power Connection
The LAEB series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.

Operating in a Humid Environment
The All-in-one Essential series can be operated under 90% RH* environment

Power Saving Standby Mode
When there is no input with remote control for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode, helping to reduce power consumption.

Key Features

• Pixel Pitch: 1.56 mm
• Screen Size: 136" (Full HD)
• Brightness: 800nits
• Embedded System Controller
• Dedicated Accessories : Wall Mount, Motorized Stand (Optional)

Technical Specifications

Pixel Configuration
3 in 1 SMD
Pixel Pitch
1.56mm
Screen Resolution
1,920 x 1,080
Module Dimensions (W H)
250 x 281.25 mm
No. of Modules per Screen (W H)
12 x 6 (Total 72)
Screen Dimensions Including Bezel (W x H x D)
118.3" x 66.6" x 1.4"/3,004.6 x 1692.1 x 35.5 mm
Screen Dimensions Without Bezel (W x H x D)
118.1" x 66.4" x 1.4"/3,000 x 1687.5 x 35.5 mm
Screen Surface Area
5.06m2/54.5ft2
Screen Weight
288.8 lbs/131kg
Physical Pixel Density pixels/m2
409,600pixels/m2
Flatness of Cabinet
+/-0.2mm
Cabinet Material
Aluminum
Service Access
Front
Brightness
800nits
Color Temperature
6,500
Visual Viewing Angle (H V)
160 - 160
Brightness Uniformity
98%
Color Uniformity
+/-0.015 Cx, Cy
Contrast Ratio
3,000:1
Processing Depth
16bit
Max Power Consumption Per Cabinet
3,000W
Avg Power Consumption Per Cabinet
1,200W
Max Power Consumption per Unit Area
593W/m2
Power Supply Voltage
100 to 240 V
Frame Rate
50/60 Hz
Refresh Rate
>=2,880Hz
Lifetime (Half brightness)
100,000 hours
Operating Temperature
32F to 104F/0C to +40C
Operating Humidity
<90% RH (without condensation)
IP Rating (Front / Rear)
IP40/IP20
Regulatory Certifications
FCC, CE
Environmental Compliance
RoHS, REACH
Controller
Embedded
