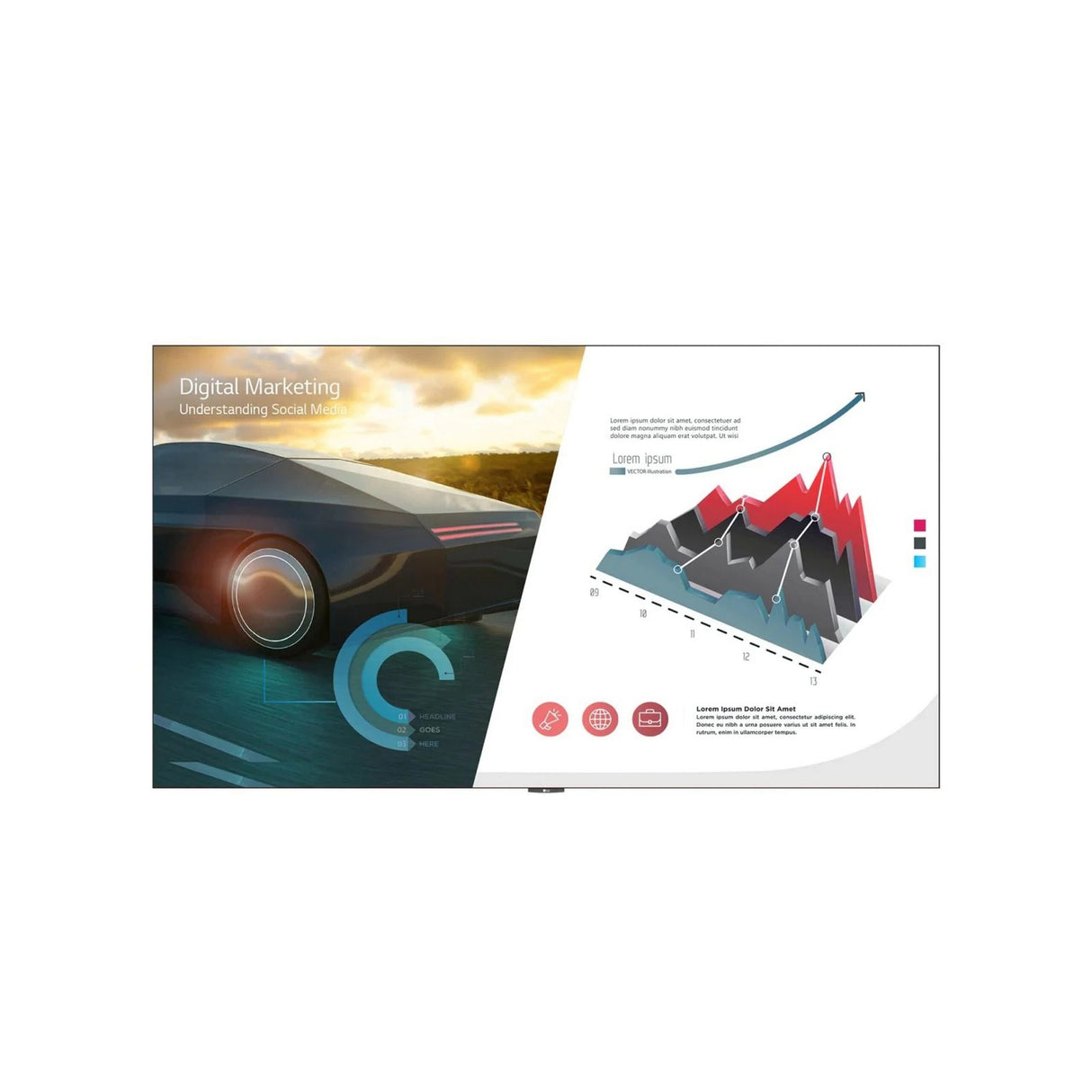

LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display
Description
Description
LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display
All-in-One LED Screen with Built-in Speaker
The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
LG One: Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with its USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
Simple Power Connection
The LAEC series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.
Key Features
- Pixel Pitch: 1.56 mm
- Screen Size: 136” (Full HD)
- Brightness: 500 nits
- Embedded System Controller
- Built-in Speaker
Technical Specifications
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.5625
Screen Resolution
1,920x1,080
Module Dimensions (WxH, mm)
250x281.25
No. of Modules per Screen (W x H)
12x6 (Total 72)
Screen Dimensions (W x H x D, mm, including bezel)
3,004.6x1692.1x36.5 (Thickest 70)
Screen Surface Area (m2)
5.06
Weight of the screen
129
Physical Pixel Density (pixels/m2)
409,600
Flatness of Unit Case (mm)
0.2
Unit Case material
Aluminum
Service Access
Front
OPTICAL
Min. Brightness (After Calibration)
500
Color Temperature
7300K
Visual Viewing Angle (H x V)
160 Degrees x 160 Degrees
Brightness Uniformity
98%
Color Uniformity
0.015 Cx, Cy
Contrast Ratio
3000:1
Processing Depth (bit)
16
ELECTRICAL
Power Consumption (W/screen, Max.)
2,000
Power Consumption (W/screen, Avg.)
800
Power Consumption (W/m2, Max.)
395
Power Consumption (BTU/h/Screen, Max.)
6,824
Power Consumption (BTU/h/Screen, Avg.)
2,730
Power Consumption (BTU/h/m2, Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
>2880
OPERATION
LED Lifetime (Half brightness)
100,000
Operating Temperature (Degrees Celsius)
0 Degrees Celsius to +40 Degrees Celsius
Operating Humidity
<90%RH (without condensation)
IP rating Front
IP30
IP rating Rear
IP20
SPEAKER
Speaker
Built-in(9W+9W)
CERTIFICATION
Certification
CE, FCC, ETL, CB
Environment
RoHS, REACH
Controller
Embedded
