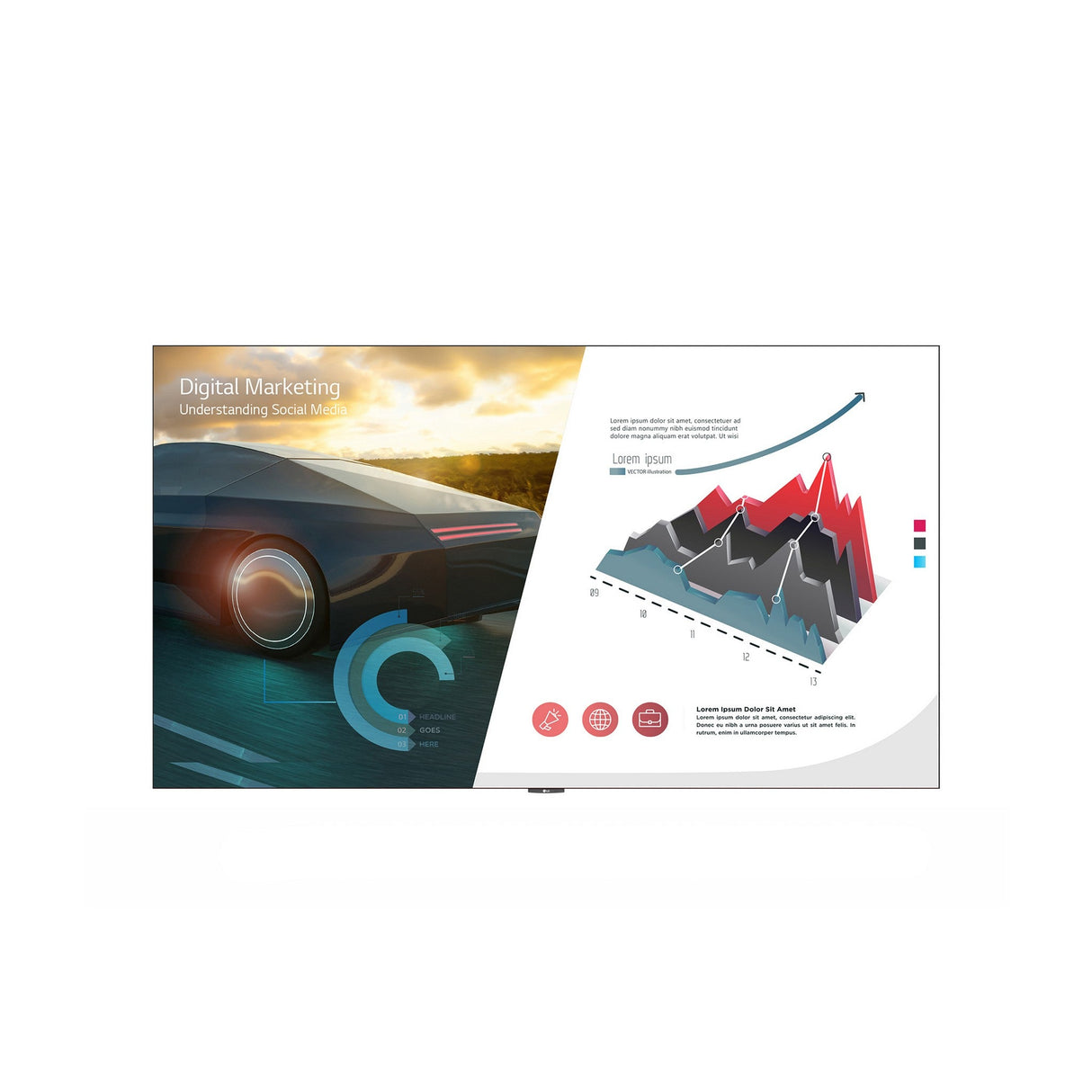

LG LAEC018-GN2 FHD 163-Inch All-in-One LED Display with Stacking Feature, No Bezel

LG LAEC018-GN2 FHD 163-Inch All-in-One LED Display with Stacking Feature, No Bezel

All-in-One LED Screen with Built-in Speaker
LG’s LED All-in-One LAEC series has two size of screens; 136- inch and a 163-inch. The LAEC series is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

High Performance with webOS
Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
* Fixing screws or installing wall mount / accessories is needed additionally.
* The image is illustrated as an example of LAEC015 model.

Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.
* Stand accessories differ by models, and need to be purchased separately.

Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability of LG ConnectedCare differs by region.
** Stand accessories differ by models, and need to be purchased separately.

Compatible with AV Control Systems
The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

Wireless Screen Sharing
The LAEC series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.
* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.

Magic Remote for Easy of Use
With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
* LG Magic Remote needs to be purchased separately.
** The FREEZE function is only available when the LAEC is connected to an external input signal.

Key Features

• Pixel Pitch: 1.88 mm
• Screen Size: 163” (Full HD)
• Brightness: 500 nit (Max., after calibration)
• Embedded System Controller
• Built-in Speaker
• Dedicated Accessories : Wall Mount, Dedicated Stand (Optional)

Technical Specifications

Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.88
Module Dimensions (W x H, mm)
300 × 168.75
Screen Resolution (WxH)
1,920 x 1,080
Screen Dimension (W x H x D,mm)
3,604 × 2,029 × 45.5 (Thickest 81)
Screen Weight (kg)
190
No. of Modules per Screen (W x H)
12 × 12 (Total 144)
Screen Surface Area (㎡)
7.29
Physical Pixel Density (pixels/m²)
284,444
Flatness of Cabinet
±0.2 mm
Cabinet Material
Aluminum
Service Access
Front
Max Brightness (After Calibration, nit)
500
Color Temperature (K)
3,200 - 9,300
Visual Viewing Angle (Horizontal/Vertical)
160 / 160
Brightness Uniformity
98%
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
3000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Screen, Max.)
2,200
Power Consumption (W/Screen, Avg.)
880
Power Consumption (W/m², Max.)
302
Power Consumption (BTU/h/Screen, Max.)
7,506
Power Consumption (BTU/h/Screen, Avg.)
3,004
Power Consumption (BTU/h/㎡, Max.)
1,030
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,000
Lifetime (Hours to Half Brightness)
100,000
Operating Temperature (°C)
0℃ to +40℃
Operating Humidity
10-90% RH
IP rating Front / Rear
IP30 / IP20
Speaker
Built-in (9W + 9W)
Certification
CE, FCC, ETL, CB
Environment
RoHS, REACH
Controller
Embedded
