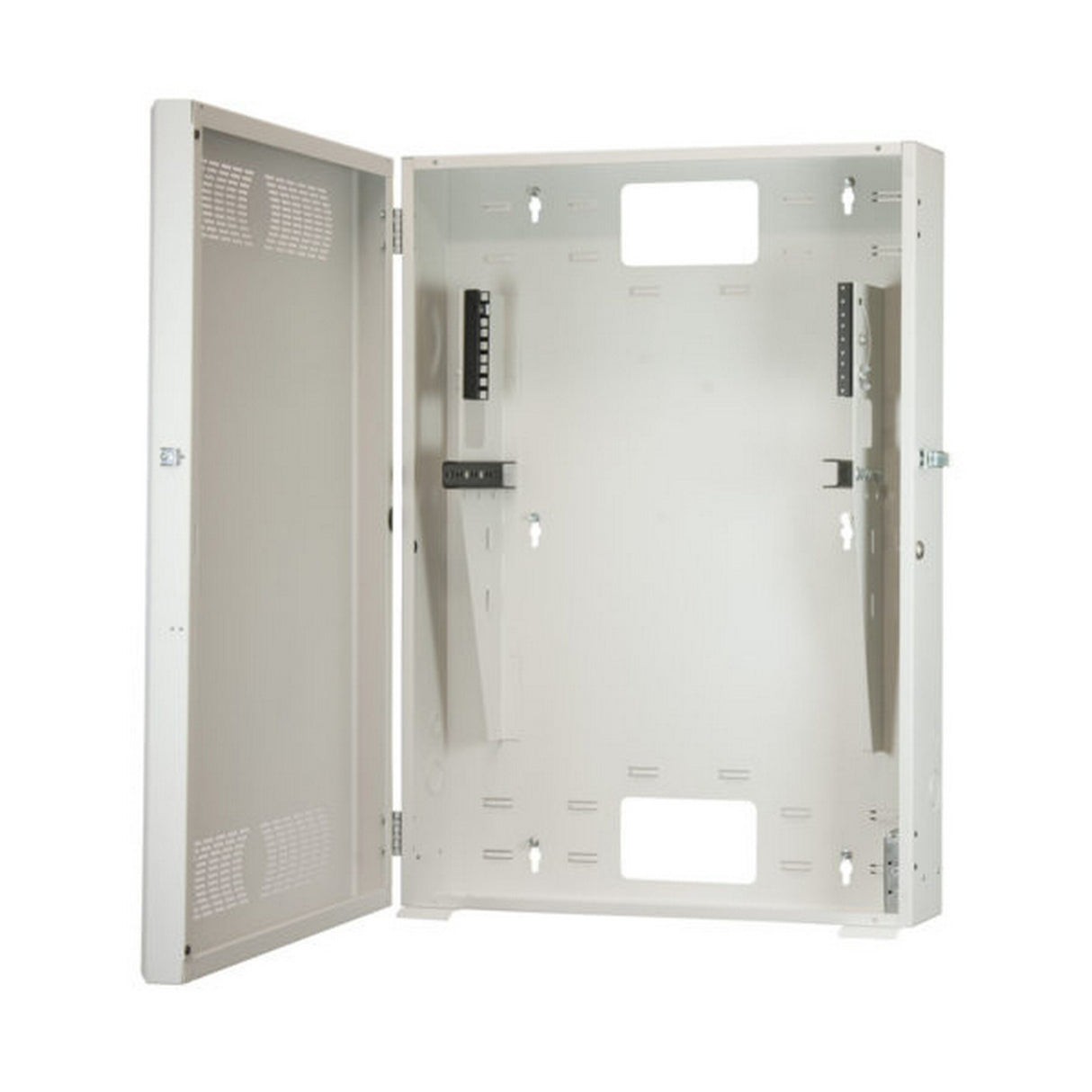

Lowell RCC-3436 Low Profile Wall-Mount Remote Consolidation Cabinet

Lowell RCC-3436 Low Profile Wall-Mount Remote Consolidation Cabinet

Low profile wall-mount cabinet secures 19” E.I.A. network equipment with minimal intrusion into the room. The cabinet maximizes internal space by providing two mounting bays with separate rail sets. The 3U top bay allows pivot-down access for a horizontally-mounted panel such as a shallow patch panel (not included). The 4U bottom bay features rails to vertically-mount hubs, servers, or similar active equipment.

Key Features

• 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
• 11-gauge rails in the 3U top section will accommodate a shallow patch panel. Rails pivot down for access.
• 11-gauge rails in the 4U bottom section will vertically-mount 19” equipment.
• Dual-punch rails: All rails have holes tapped 10-32 (for use with included screws) plus square openings for alternate hardware (12-24 or 6mm screws, not included).
• Vented front door with beveled edges and inset handle
• Knockouts in top and base
• Multiple bridge lances
• Vents in base accommodate (optional) single fan kits
• Includes E.O. box in base
• Side key lock
• Network Grey powder epoxy finish
• Load Capacity: 150 lbs.

Technical Specifications

Rack Space
3U horizontal plus 4U vertical
Measurements
25.5”W x 36”H (30.2”D usable) x 7.5”D
COMPLIANCE & CERTIFICATION
EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.
