Lumantek BAT-SD | Mini Converter BAT Series - SDI 6 Distributor
Lumantek BAT-SD | Mini Converter BAT Series - SDI 6 Distributor is backordered. Please call for ETA 877-779-8964
Condition: New
Lumantek BAT-SD | Mini Converter BAT Series - SDI 6 Distributor
Description
Description

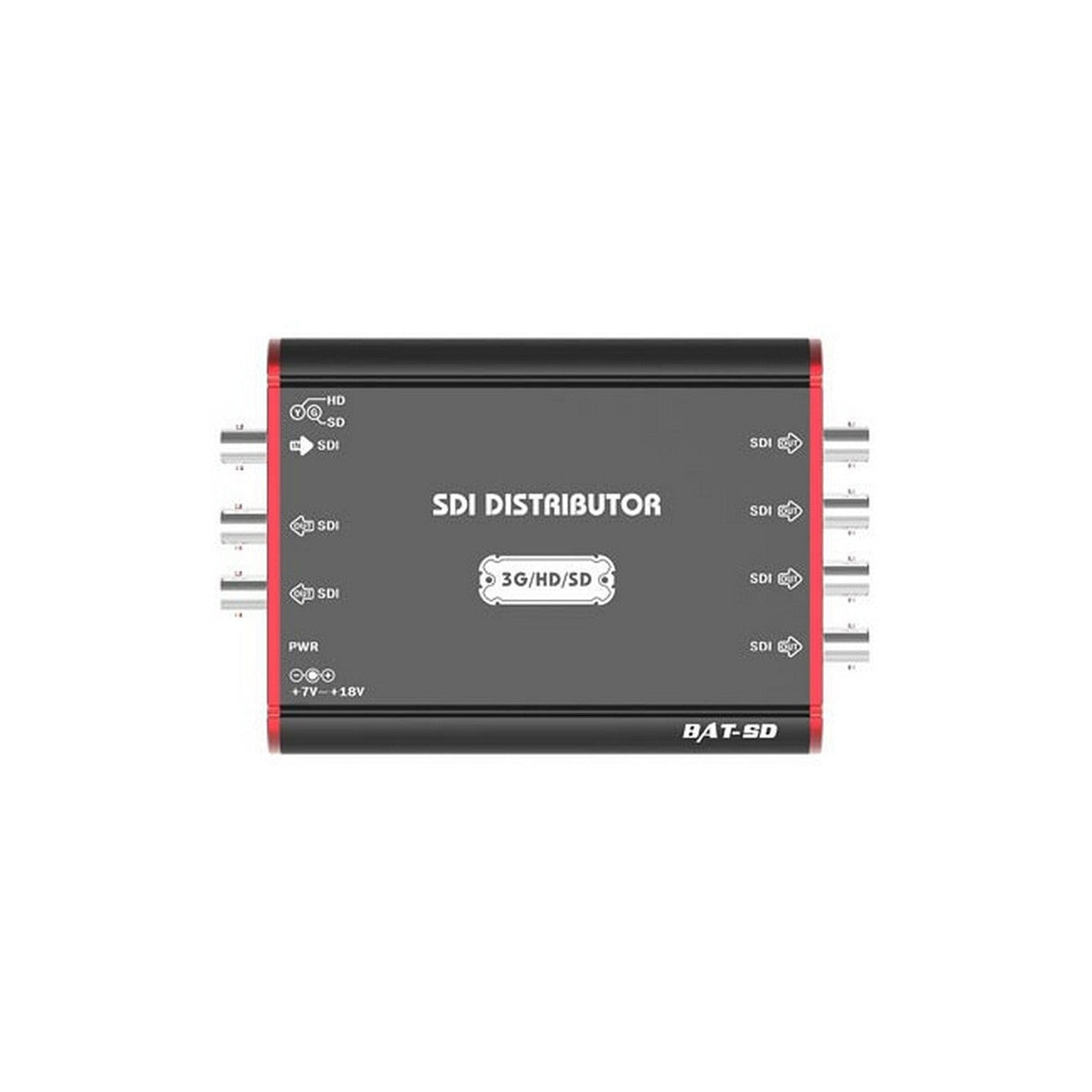

Lumantek BAT-SD Mini Converter BAT Series - SDI 6 Distributor
Lumantek Mini Converter BAT Series - SDI 6 Distributor
Technical Specifications
Input Electrical Specifications
SDI Input Cable Lengths
SD-SDI (Belden 1694A): 250m
HD-SDI (Belden 1694A): 170m
3G-SDI (Belden 1694A): 155m
RF Input
Connector (1 Port): 75ohm, 1 x BNC type female
Display
Input SDI Detect: SD(Green), HD/3G(Yellow)
Output Electrical Specifications
Rise/Fall time
SD-SDI : rise/fall time(20-80%): 600ps
HD-SDI : rise/fall time(20-80%): 100ps
3G-SDI : rise/fall time(20-80%): 100ps
Peck to Peck Voltage Swing
SD/ HD/ 3G-SDI: 720~880 mVpp
Overshoot/Undershoot
SD/ HD/ 3G-SDI: -10~+10%
RF Input
Connector (1 Port): 75ohm, 1 x BNC type female
General Specifications
DC Input power: 7~18V
Lowest Power Consumption: 2W
