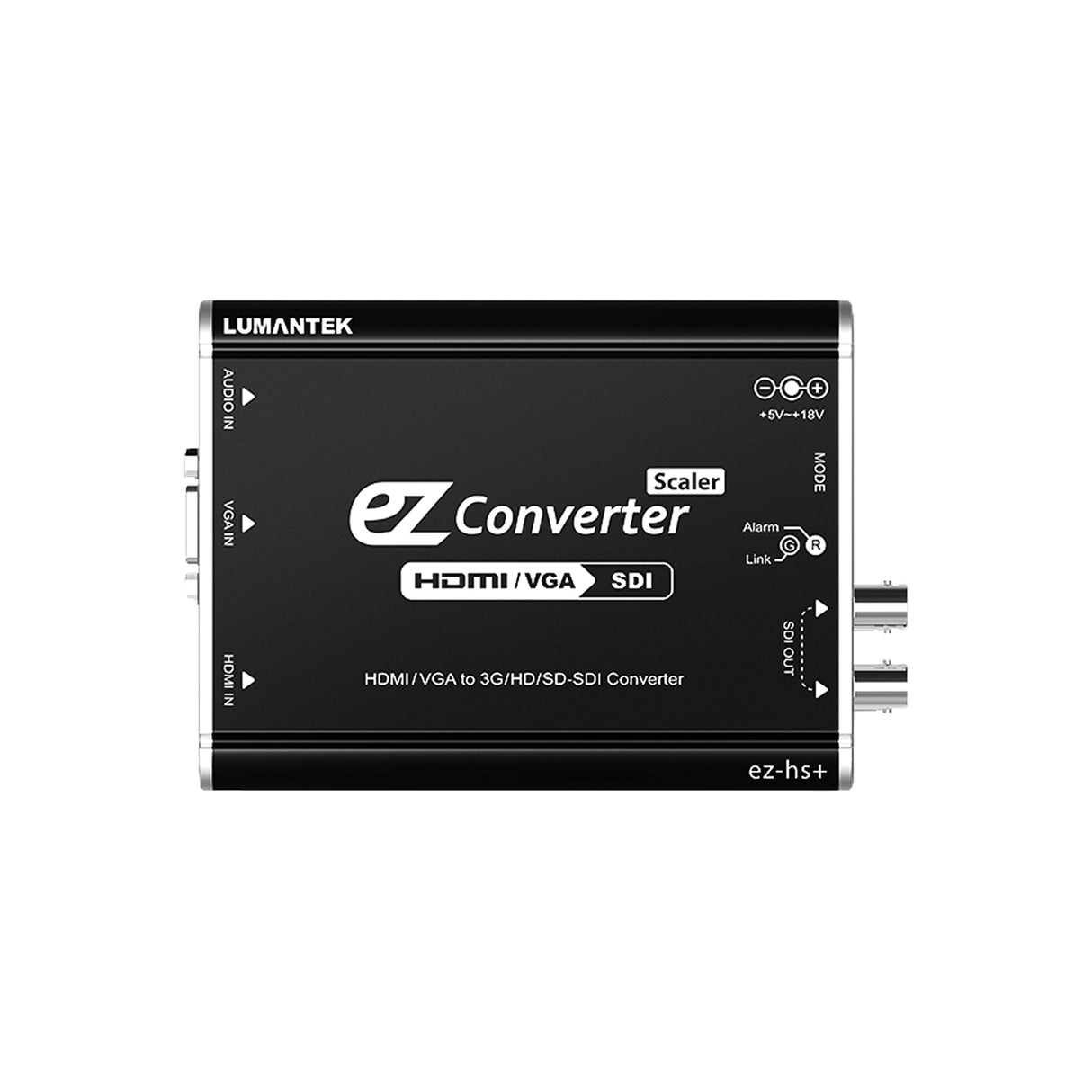

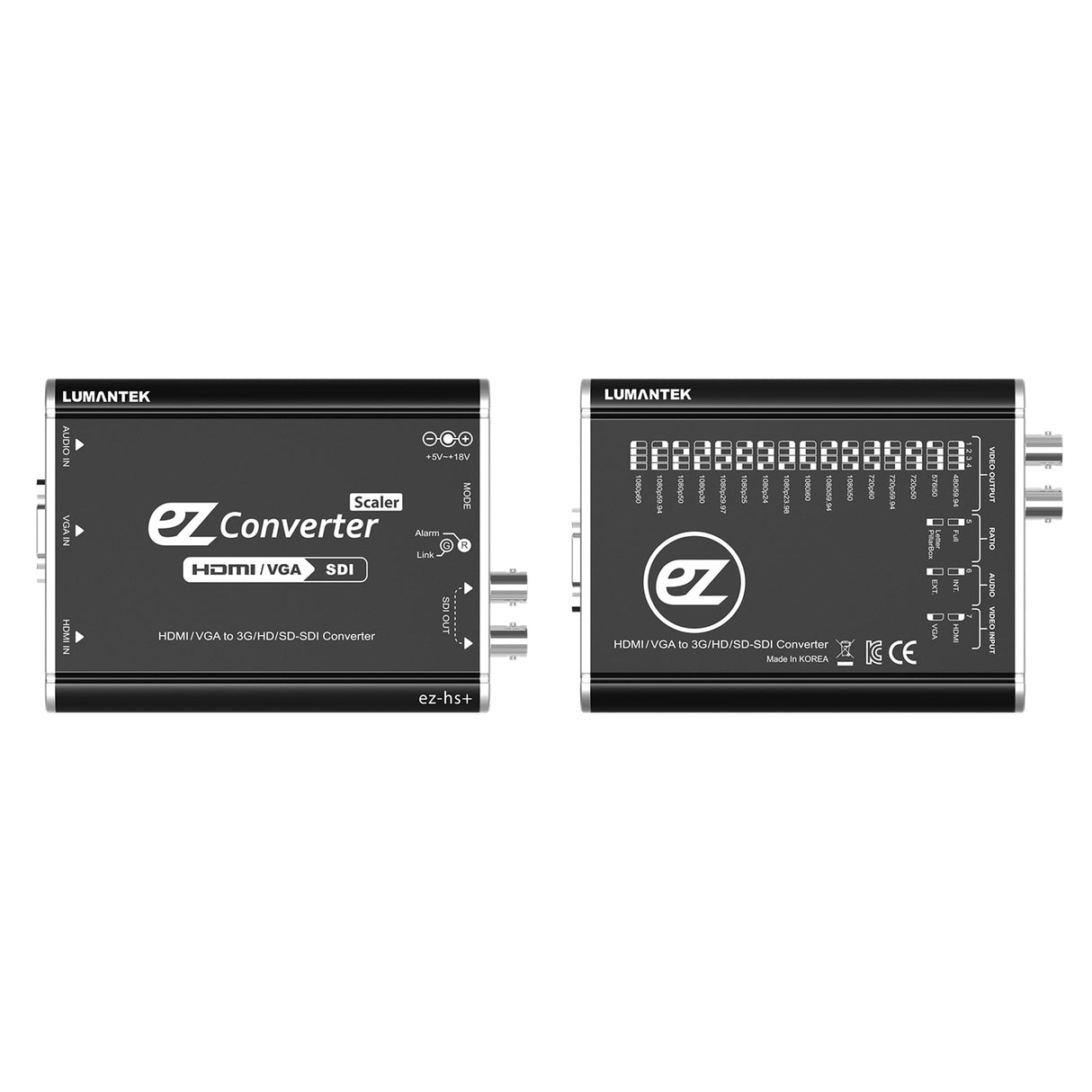

Lumantek ez-Converter HS+ | HDMI,VGA to 3G,HD,SD-SDI Converter with Scaler
Lumantek ez-Converter HS+ | HDMI,VGA to 3G,HD,SD-SDI Converter with Scaler is backordered. Please call for ETA 877-779-8964
Condition: New
Lumantek ez-Converter HS+ | HDMI,VGA to 3G,HD,SD-SDI Converter with...
Description
Description
Lumantek ez-Converter HS+ HDMI,VGA to 3G,HD,SD-SDI Converter with Scaler
ez-hs+ HDMI / VGA to 3G/HD/SD-SDI Converter
Technical Specifications
Video Formats
HDMI
720x480i@59.94/60
720x576i@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
1920x1080p@23.94/24/25/29.97/30
1920x1080p@50/59.94/60
VGA
640x480p@60/72/75/85
800x600p@60/56/72/75/85
1024x768p@60/70/75/85
1152x864p@75
1280x720p@50/60
1280x768p@60@60RB
1280x800p@60
1280x960p@60
1280x1024p@60/75
1360x768p@60
1440x900p@60
1400x1050p@60/75
1600x1200p@60
1680x1050p@60
1920x1080i@50/60
1920x1080p@24/50/60
1920x1200p@60
Audio:3.5mm Stereo Jack x 1
HDMI: Connector (1 Port) Type A
VGA: Connector (1 Port) D-SUB 15 female
Output Electrical Specifications
Video Formats
720x480i@59.94
720x576i@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
1920x1080p@
23.94/24/25/29.97/30
1920x1080p@50/59.94/60
Audio Output: 48KHz
SDI Output
Connector (2 Port): 75ohm, 2 x BNC type female
General Specifications
Operating Temperature: -20~75
Relative humidity: 0~90%
DC Input Power: 5~18V
