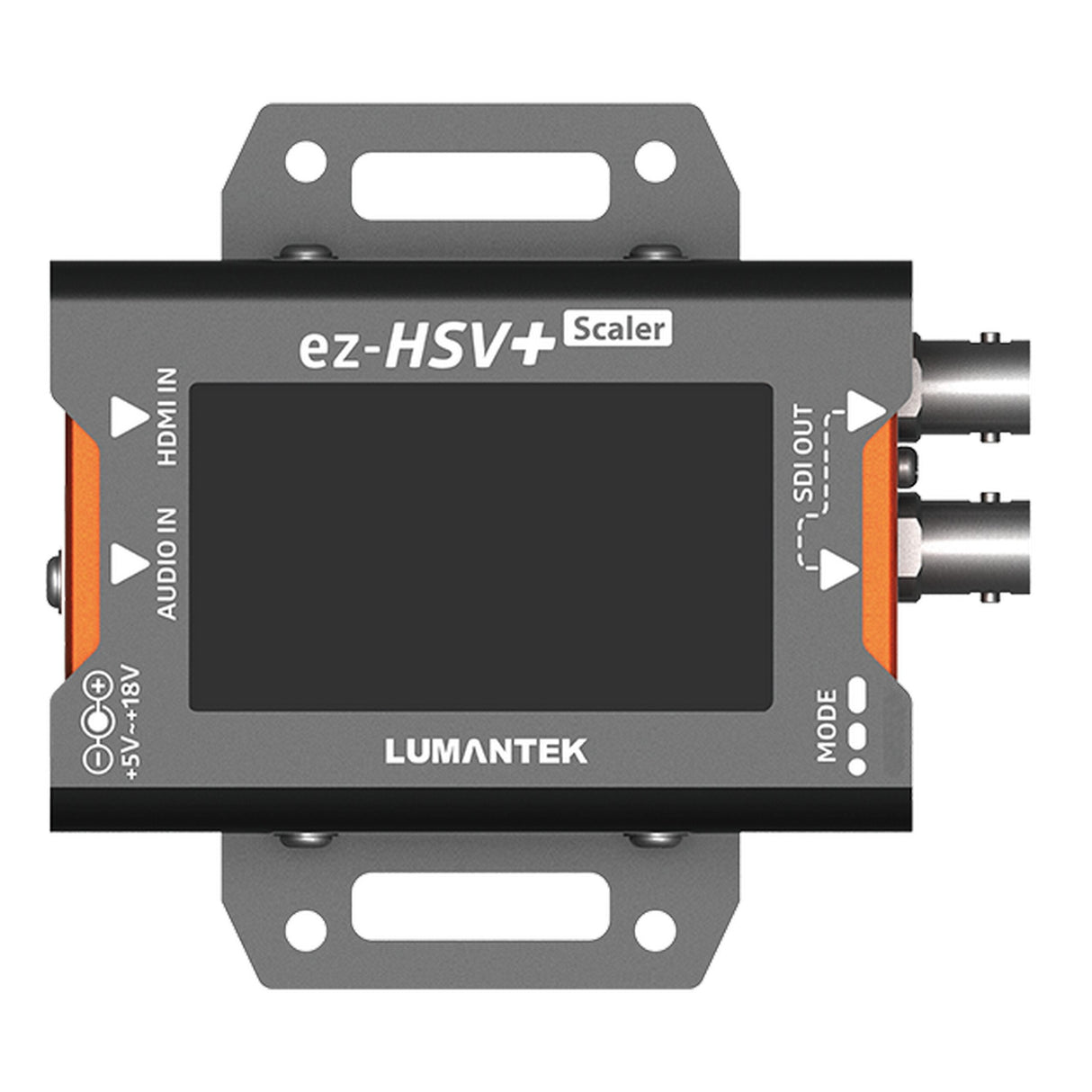

Lumantek ez-HSV+ HDMI to SDI Converter with Display
Now you can monitor HDMI video with ez-HSV+. Features you can check are audio bar, incoming resolution and scaled out resolution. The ez-HSV+ comes with the capability to embed external audio as well to give you a more convenient way to plan your production scheme.
24/7 Video Monitoring
Through the 2.7 inch TFT LCD screen, you can monitor the incoming video and in/output source resolution.
Audio Level Meter
You can also check the sound through the audio level meter on the screen. No more worries with audio!
Low Power Consumption
The Maximum power consumption of ez-HSV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility in connecting power. You can also use a power bank to use this coverter.
Global Power Adaptor
All ez-Converters come with AC/DC power adaptor.
With three different types of replaceable plugs, make your work easy wherever you are.
Technical Specifications
Analog Audio Input
Stereo Jack x 1
HDMI Video Input
SD/ HD/ 3G (HDMI Type A) x 1
Video Formats
- 720x480i@59.94/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60
SDI Video Output
SD/HD/3G-SDI (BNC 75Ω) x1
Video Formats
- 720x480i@59.94 (DIP SW : 1111)
- 720x576i@50 (DIP SW : 0111)
- 1280x720p@50 (DIP SW : 1011)
- 1280x720p@59.94 (DIP SW : 0011)
- 1280x720p@60 (DIP SW : 1101)
- 1920x1080i@50 (DIP SW : 0101)
- 1920x1080i@59.94 (DIP SW : 1001)
- 1920x1080i@60 (DIP SW : 0001)
- 1920x1080p@23.98 (DIP SW : 1110)
- 1920x1080p@24 (DIP SW : 0110)
- 1920x1080p@25 (DIP SW : 1010)
- 1920x1080p@29.97 (DIP SW : 0010)
- 1920x1080p@30 (DIP SW : 1100)
- 1920x1080p@50 (DIP SW : 0100)
- 1920x1080p@59.94 (DIP SW : 1000)
- 1920x1080p@60 (DIP SW : 0000)
Power
DC Power Input (OD: 5.5mm, ID:2.1mm) x1
DIP Switch
(6 Pole) x1 Video In/Out Resolution, Video Output Ratio, Audio (INT. or EXT.)
MODE
(Push Switch) x 1 LCD ON/OFF, Menu Selection
Display
2.7 inch TFT LCD
Input Video Display, In/Output Video Resolution Display, Input Audio Level Meter Display
Power Input
DC +5V to +18V
0.33A(333mA) when it's +12V
Power Consumption
4W (max.)
Operation Temperature
0~45 deg C
Dimension
86.3 x 57.2 x 26.6 mm (include connector)
Weight
0.3 kg (0.66 lbs)
