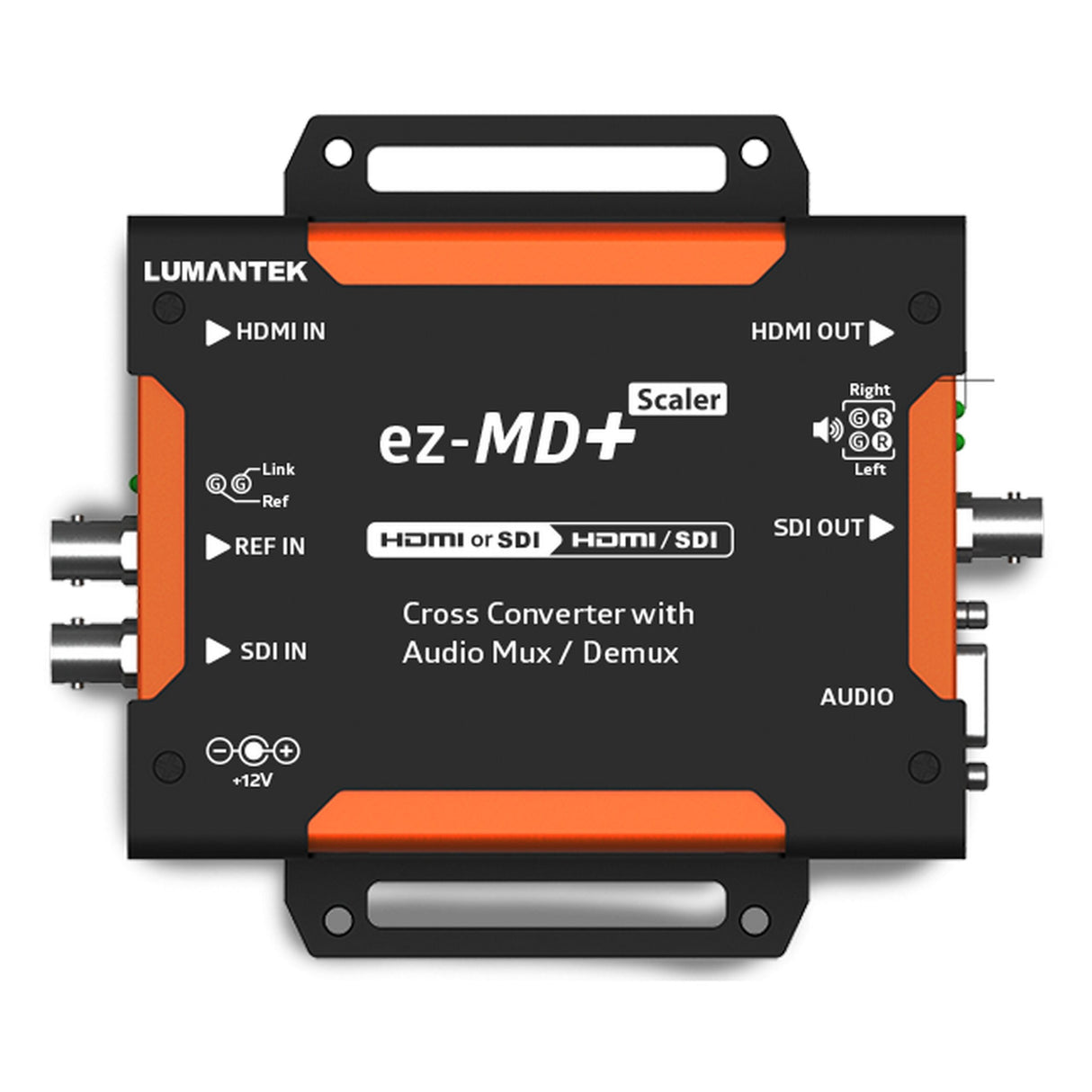

Lumantek ez-MD+ HDMI/SDI Cross Converter with Audio Mux/Demux
LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It'supports XLR balanced audio support with audio delay controller.
HDMI and SDI Cross-Converting
LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.
Up / Down Scaling and Screen Ratio Control
ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'
Audio embedding/De-embedding with external XLR Audio
9 pin serial port to XLR * 4 is complimentary.
Audio Delay control
Use the rotary switch to control the audio delay of the video source (50ms Step).
Frame Synchronization
There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.
Technical Specifications
SDI Video Input
SD/HD/3G-SDI (BNC 75 OHM) x1
HDMI Video Input
SD/HD/3G (HDMI Type A) x1
Reference Input
B.B , TRI (BNC 75 OHM) x1
Audio Input
D-SUB 9PIN (Female) x1
Video Formats
720x480i@59.94/60
720x576i@50
1280x720p@50/59.94/60
1920x1080i@50/59.94/60
1920x1080p@23.98/24/25/29.97/30
1920x1080p@50/59.94/60
Data Output
SDI VIdeo Output
SD/HD/3G-SDI (BNC 75 OHM) x1
HDMI Video Output
SD/HD/3G (HDMI Type A) x1
Audio Output
D-SUB 9PIN (Female) x1
Video Formats
720x480i@59.94 (DIP SW : 1111)
720x576i@50 (DIP SW : 0111)
1280x720p@50 (DIP SW : 1011)
1280x720p@59.94 (DIP SW : 0011)
1280x720p@60 (DIP SW : 1101)
1920x1080i@50 (DIP SW : 0101)
1920x1080i@59.94 (DIP SW : 1001)
1920x1080i@60 (DIP SW : 0001)
1920x1080p@23.98 (DIP SW : 1110)
1920x1080p@24 (DIP SW : 0110)
1920x1080p@25 (DIP SW : 1010)
1920x1080p@29.97 (DIP SW : 0010)
1920x1080p@30 (DIP SW : 1100)
1920x1080p@50 (DIP SW : 0100)
1920x1080p@59.94 (DIP SW : 1000)
1920x1080p@60 (DIP SW : 0000)
Power
DC Power Input (DC Jack) x1
Update
Debus (Micro-USB) x 1
DIP Switch
(10 Pole) x 1
Video Output Resolution, Video Output Ratio, Video Input(SDI or HDMI),Audio(INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain(0 or -10dB)
Rotary Switch
(10 step) x 1
Audio Delay Control
(50ms Step)
Link (Green x 1)
HDMI or SDI Input video Detect
Ref (Green x 1)
REF Input Signal Detect
Left (Green x 1, Red x 1)
Input Audio Level Meter (Left)
Right (Green x 1, RED x 1)
Input Audio Level Meter (Right)
Power Input
DC +11V to +13V
Power consumption
8W(max.)
Operation Temperature
0~45-deg C
Dimension
130x100.4x26.9 mm (include connector)
Weight
0.4kg (0.88 lbs)
