Lumantek ez-Pro VS4 | 4x1 Seamless Switcher
Description
Description

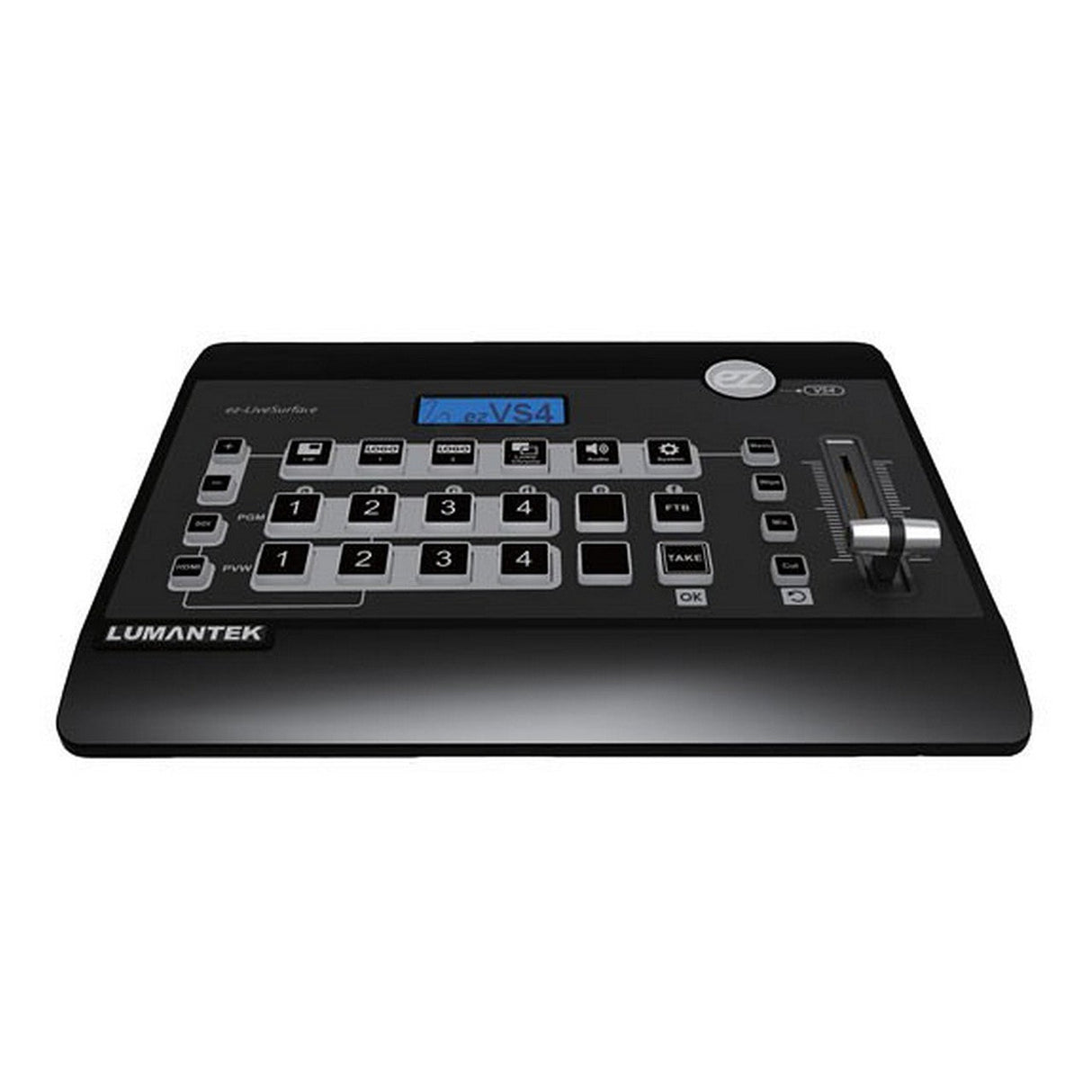

Lumantek ez-Pro VS4 4x1 Seamless Switcher
ez-Pro VS4 is a 4 channels video source switcher. Video sources can enter through HDMI and/or SDI ports and can be assigned to HD displays and projectors. Builtin scalers on each input can adjust output video resolutions even though input sources have different resolutions. ez-Pro VS4 is born for church worship, educational activities, wedding, ceremonies, theater, and live concert.
Key Features
- 3G-SDI and HDMI Interface
- Internal Scalers for SD, HD, Full-HD
- Audio Input / Output
- User-Friendly Multiview
Technical Specifications
Input
Video Input: SDI (BNC 75Ohms) x2, HDMI x3
Analog Audio Input: 6.35mm (1/4") Phone Jack(Balanced) x 2
±10V (Max) @ -10dB
Output
Video Output (PGM) HDMI x1, SDI (BNC 75Ohms)x1
Multiview Output: HDMI x1
Analog Audio Output: 3.5mm Stereo Jack x 1
Key: PIP x 1, LOGO x 2, CHROMA/LUMA x 1
Internal Processing: 4:2:2 10bits/8bits
Resolution supported
Input
SD: 480i59/ 576i50/
HD: 1080p30/1080p29/1080p25/1080p24/1080p23/
1080i60/1080i59/1080i50/720p60/720p59/720p50
Full HD: 1080p60/1080p59/1080p50
Output
HD: 1080p30/1080p29/1080p25/1080p24/1080p23/
1080i60/1080i59/1080i50/720p60/720p59/720p50
Full HD: 1080p60/1080p59/1080p50
Management
Console: USB2.0 @ GUI application, Firmware Upgrade, LOGO Update
Physical
Power Input: DC 7 - 14V
Operation Temperature: 0 - 40
Power Consumption: 20W (max)
