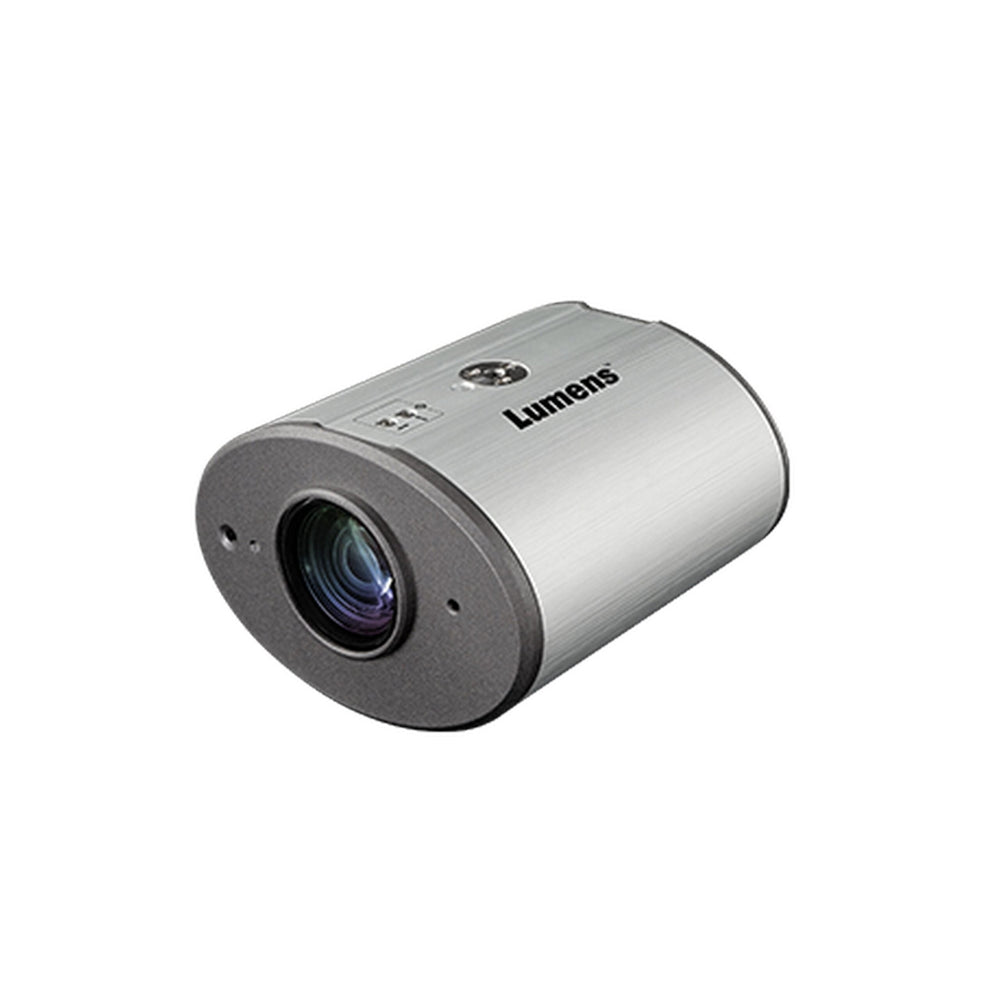

Lumens CL511 4K UHD Ceiling Camera

Lumens CL511 4K UHD Ceiling Camera

Lumens CL511 can be suspended from, or embedded into the ceiling. It provides presenters an unobstructed top view of a table top, podium, or demonstration area. The camera can shoot documents or objects larger than A0 size (over 88” x 48” / 2.2m x 1.2m) at up to 4K resolution. The CL511 can project mark the middle of the shooting area with a targeting laser, making it quick and easy to position objects accurately in the center of the frame. With 300x close-up capabilities, the camera is ready to capture the finest details.

The CL511 supports a wireless mouse to access onboard collaboration tools for spotlighting a particular area. It also enables free drawing without a PC or any software. The addition of Lumens Ladibug program gives users access to advanced features such as text overlay, 4K recording, and use with a touch panel.

Featuring HDMI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network. The CL511 also supports Power over Ethernet (PoE+). Using a standard network cable, the visualizer can be operated without additional power supplies. These features significantly reduce installation time and costs.

Key Features

• 4K UHD 30fps Resolution
• 300x Total Zoom
• Supports RTSP streaming and PoE+
• Central Laser Marking Positioning
• 5 Year Warranty

Technical Specifications

Sensor
1/2.8” 8.6MP CMOS
Video Format
2160p: 30 / 25
1080p: 60 / 50
720p: 60 / 50
XGA
Video Output Interface
VGA / HDMI / USB / Ethernet
Total Zoom
300x
Zoom
60x
Digital Zoom
15x
Sharpness
MTF 1100 lines
Shooting Area at 2m Height
Max: 2235 x 1211mm
Min: 136 x 76mm
Center Laser Mark for Positioning of Objects
Yes
Auto Tune
Yes
Picture in Picture (PIP)
Yes
Slide Show
Automatically or Manually
Image Rotation
0° / 90° / 180° / 270° / Flip / Mirror
Pan Across the Screen
Yes
HDMI
2160p30 / 1080p60
VGA
1080p60
IP Streaming
2160p30
IP Compression
H.264
USB
H.264 2160p30 / MJPEG 1080p30
USB Video Format
H.264 / MJPEG / YUV
USB Host
Type-A x1
Supports USB 2.0 Flash Drive
USB Mouse and Keyboard
USB Flash Drive
Up to 4TB
Image Capture
Single or Continuous Capturing
Built-in Memory
100 JPEG images
Video Recording
Yes
Recording Format
H.264 1080p60
Video Playback
Yes
IP Protocol
RTSP
PoE
PoE+ (IEEE802.3at)
Audio In
Line In
Phone Jack 3.5mm x1
Audio Out
Line Out
Phone Jack 3.5mm x1
Audio Compression Format
USB: PCM
Control Interface
RS-232 / Ethernet / USB
UVC
1.1
UAC
Yes
Anti-Theft
Kensington Lock
IR Extender
Yes
Ladibug Software Included
Ladibug Software
(Supports Windows 10, 8, 7
Mac OS X, Chrome OS)
DC In
12V DC (100~240 VAC)
Power Consumption
PoE: 13W
DC In: 12W
Weight
1.76lbs (800g)
Dimensions (W x H x D)
4.96” x 3.39” x 5.59”
(126 x 86 x 142mm)
