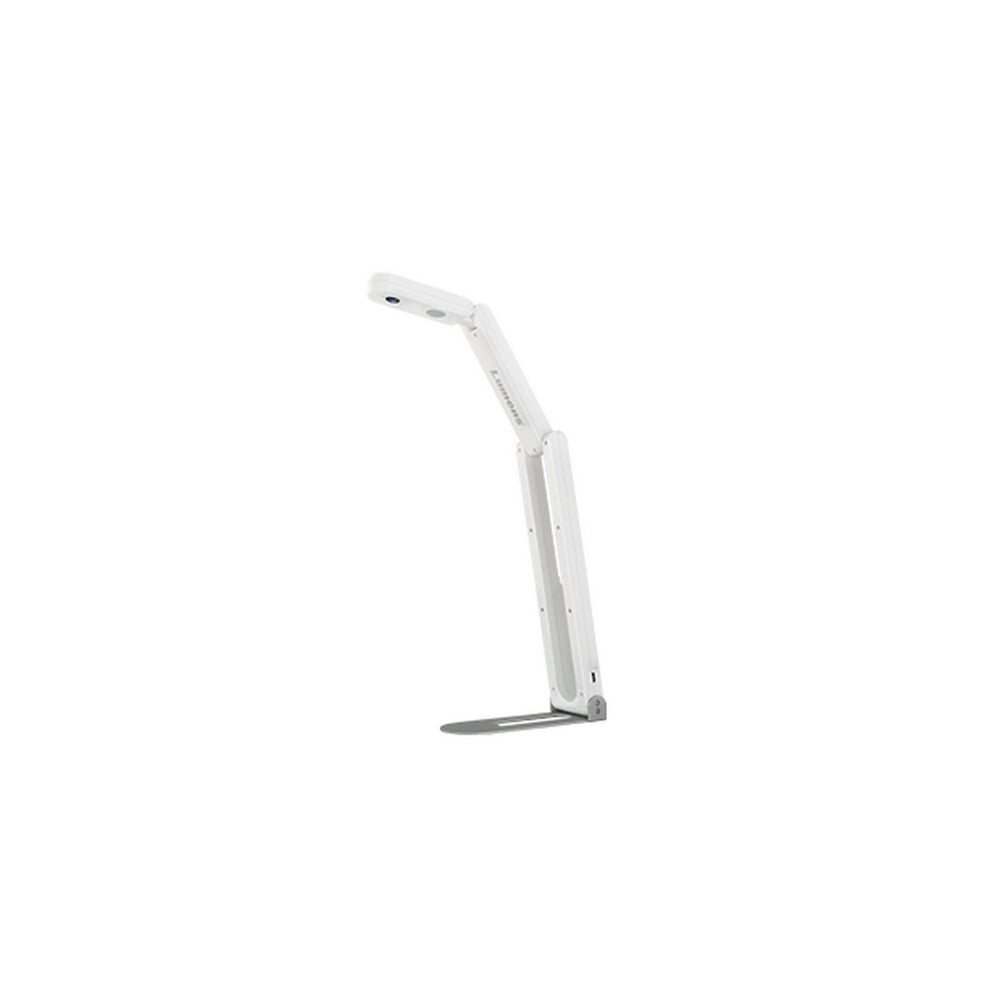

Lumens DC-F20 HD/2K USB Document Camera
Description
Description
Lumens DC-F20 HD/2K USB Document Camera
Grab & Go Design
The foldable and lightweight design makes DC-F20 very easy to carry. A portable demonstration tool, it's perfect for teachers and business professionals.
Superb Image Quality
DC-F20 delivers vivid and colorful images. It is perfect for projection or product demonstrations with 1080p resolution and higher (up-to 2K).
Dual Document Camera - Webcam Design
Equipped with one-touch image rotation, DC-F20 simply flips from use as a document camera to a webcam. It's a great piece of technology for hybrid classrooms which combine in-class teaching with distance learning.
Three-Level LED Lighting as Fill Light
With a built-in light, DC-F20 can even be used in rooms with poor lighting. Adjust the level of lighting to illuminate documents or faces, when used as a webcam.
Collaboration Tool for Windows, MAC, and Chrome
Ladibug's creative tools elevate your presentation to engage more fully with students. The application runs on Windows, MacOS, and Chrome OS.
5 Year Warranty
Lumens offers a 5-year warranty with all its products as standard.
Key Features
- 2K / 1080p Full HD
- USB Plug & Play
- Electronic Pan, Tilt and Zoom up-to 16x Total Zoom (via Software)
- A3 Shooting Area
- Built-in Microphone
Technical Specifications
Sensor
1/4” 5M CMOS
Total pixels
5MP
Total Zoom
16x
Digital Zoom
16x (Via Software)
Mechanical Zoom
6x
Output Resolution
2592x1944, 2560x1440, 1600x1200,
1920x1080,1280x720,1024x768,
960x540,640x480,640x360
Frame Rate
1080p / 720p 30fps
Close-up
6 cm
Shooting Area Max.
453mmx340mm (17.8” x 13.4”)
Sharpness
MTF 1100 Line
Focus Mode
Auto / Manual
Image Rotation
0 Degrees / 180 Degrees / Flip / Mirror
Lamp
LED lamp on camera head
Three-stage brightness adjustment
Arm
Mechanical Arm
Power Supplied
USB Bus Power
Output
USB Type-C
Control
USB
USB Image Transmission
USB 2.0 (480 Mbps)
Driver
UVC / UAC
USB Video format
MJPEG / YUV
Built-in Microphone
Yes
Auto Tune
Yes, One Button for Optimization Image
Video / Audio Recording
Yes (Via Software)
Image Mode
Photo / Text
Pan
Yes
Freeze
Yes
Mask / Spotlight
Yes (Via Software)
Image Capture
Single or Continuous Capturing (Via Software)
Lumens Software
Support Windows 11, 10, 7
Mac OS X, Chrome OS
Anti-Theft
Kensington Anti-Theft Lock Device
Included Accessories
USB Cable
Power Consumption
2.25W (Max.)
Dimensions (WxHxD)
Folded: 2.56” x 10.43” x 0.97” (65 x 265 x 24.5 mm)
Open: 4.2” x 15” x 13.8” (65 x 175.1 x 392.5 mm)
Weight
0.8 lbs (0.36 Kg)
