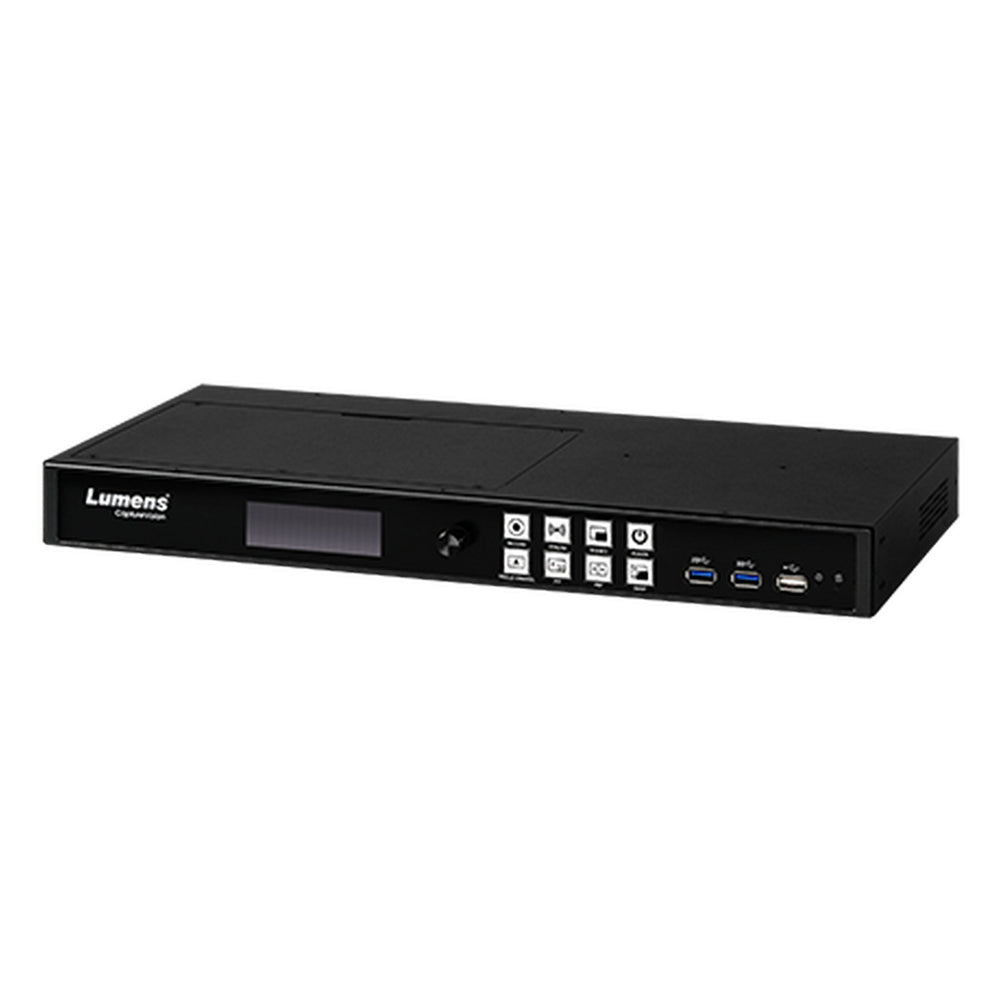

Lumens LC100 CaptureVision System 2-Channel HD Recorder and Streaming Media Processor

Lumens LC100 CaptureVision System 2-Channel HD Recorder and Streaming Media Processor

Onboard GUI Director
Live control is incorporated into the device. Connect an HDMI screen to the LC100 to access the intuitive GUI. Sessions can be produced live or scheduled in advance.

Live Pre-defined Scenes for Switching
Build layout scenes that incorporate a variety of visual elements including splIt'screen video, picture-in-picture, title/logo overlays, and background images. Activate and change layouts with the click of a mouse.

Program & ISO Recording
The LC100 records the mixed program-out video and captures two video inputs with independent audio. This simplifies media archiving and post-production.

Deployment Tool for remote central management
The Lumens deployment software enables control, management, and administration of multiple LC100 units on the network. Administrators can remotely monitor device status, saving time and reducing costs.

Intermission Scene and Chapter Marker
Need a break time during the streaming session? Hit the coffee mark to display the break time page. At the same time, set a chapter mark to instantly jump to a particular scene during playback.

5 Year Warranty
Lumens offers a 5-year warranty with all its products as standard.

Key Features

• 2-Channel AV Source Processing
• Simultaneous Recording and Streaming
• HDMI, SDI, RTSP, USB source inputs
• XLR with Phantom power supported
• Built-in 2TB HDD storage*
• Remote Control Panel (Optional)
• 5-Year Warranty

Technical Specifications

Number / Signal
2* HDMI
2* 3G-SDI
Connection
Female HDMI Type-A / 3G-SDI
Resolution Range
HDMI Input 1: 720p~2160p 60fps
Others: 720p~1080p 60fps
IP Source / USB Camera
Lumens IP PTZ / Box Camera
RTSP Source (H.264 1080p 60/30fps)
USB Camera (MJPEG 1080p 30fps)
Video Compression
H.264 / AVC 4:2:0 8bit color
Encoding Profile: High, Main, Baseline
Bitrate
200 kbps to 10 Mbps
Number / Signal
3* H.264 / AVC Digital Video over Ethernet
2* HDMI Digital Video
1* HDMI Pass-through (Up to 4K)
Scaled Resolution
1080p
Frame Rate
30 / 60 fps
Internal Storage
2TB HDD
External Storage
4* USB 3.0 Port
File Type
H.264 in an MP4 Container, JPEG
Resolution
360p / 720p / 1080p
Frame Rate
Max. 1080p 60/30 fps
Number / Signal
1* Line In (Stereo Unbalanced Audio, 3.5mm Phone Jack)
2* Combo (XLR / TRS, Balanced Audio,
Line in/ Mic in, Support +48V Phanton Power)
IP Audio Source (RTSP, 16K/44.1K/48K)
Support USB Audio (UAC)
Number / Signal
1* Stereo, Unbalanced 3.5mm Phone Jack
2* Stereo, Digital De-embedded Audio from HDMI
USB
1* USB 2.0 Type A
4* USB 3.0 Type A
Support USB Storage, USB Camera, USB Mic
USB Mouse, Keyboard, HID Touch Display
Serial Control
RS-232 / RS-485 Port
Ethernet Host Port
1* Female RJ-45
10/1001000 Base-T High / Full Duplex
Streaming Protocol
Pull: RTSP
Push: RTMP / RTMPS / MPEG-TS / SRT
TCP / UDP / HTTP
DHCP Client
Support IP Sources
Lumens IP Camera / RTSP
Scenes Switch
Yes, preset for layout, background, and overlay
Layout Switch
Yes (Single, PIP, and PBP)
Background Switch
Yes
Overlay
Yes, PNG overlay or system time overlay
File Backup
FTP / SFTP / NAS (CIFS/SMB, NFS) / WebDAV /
Copy to USB Flash Drive
Content Management Systems
Panopto / OpenCast / Kaltura
Power Supply
DC In, 12V / 3A
Power Consumption
30W
Dimensions (W x H x D)
Standard 1u rack
17” x 1.9” x 8.5” (432 x 49.4 x 218mm)
Weight
5.3 lbs (2.4 Kg)
