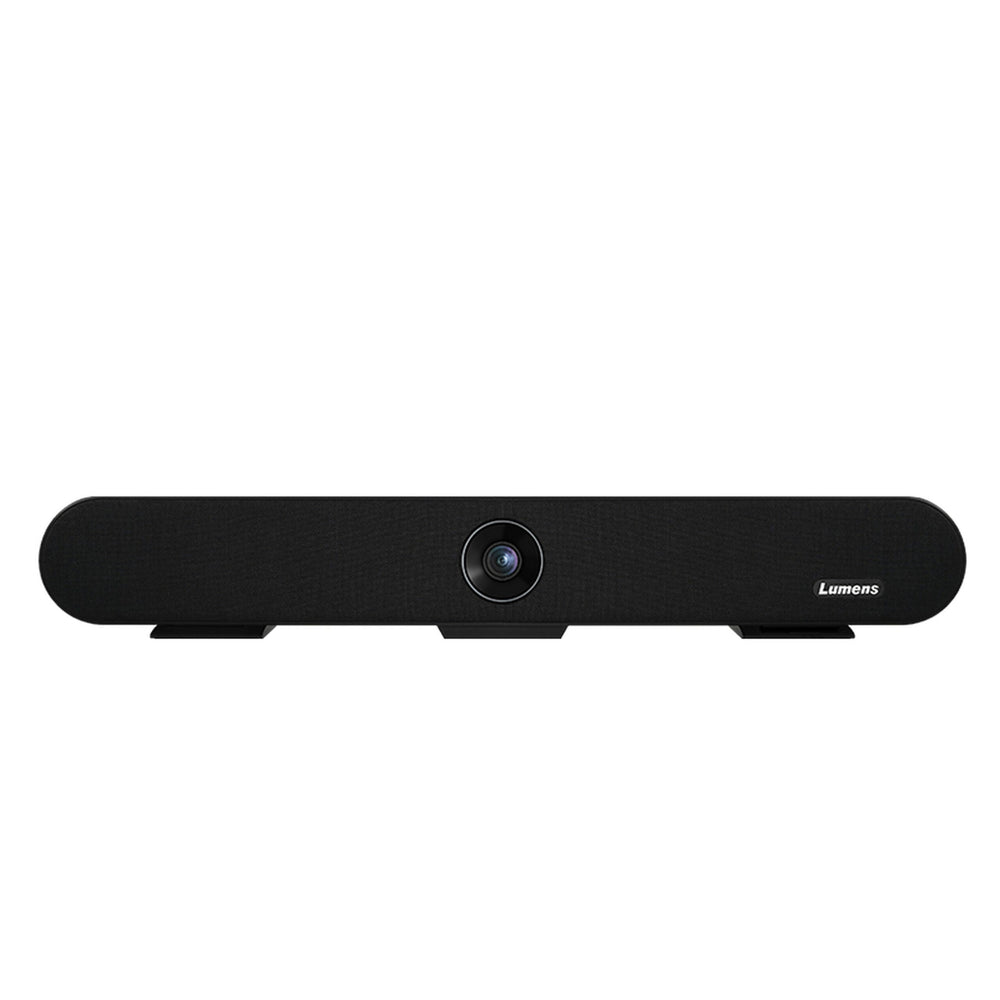

Lumens MS-10 All-In-One 4K Video Conferencing Solution with Auto-Framing Camera

Lumens MS-10 All-In-One 4K Video Conferencing Solution with Auto-Framing Camera

Lumens MS-10 is an all-in-one VC camera, microphone, and speaker system for conferencing collaborative meetings, and unified communications. Compliant with all major platforms (including Teams, Zoom, and WebEx), MS-10 is certified to support Barco Clickshare for truly interactive meetings. The MS-10 features sophisticated auto-framing technology: its camera intelligently identifies participants in the room and adjusts the zoom angle to incorporate every guest. With an ultra-wide 120° field of view and the ability to zoom in 4x, the camera can be used by individuals and groups in fully automatic mode. The unit is optimized to deliver superb 4K output or HD at all zoom settings. With multiple participants in a huddle room or meeting space, capturing the clear sound is crucial for an effective video conference. MS-10's five directional microphones have echo cancellation and noise suppression to capture every participant's voice clearly. The beamforming mics comfortably pick up voices whether they are sitting directly in front of the unit or up to 5 meters away from the device.

Benefitting from Lumens' expertise in broadcast production, MS-10's large 4K CMOS sensor captures beautifully crisp pictures with natural skin tones. There's no need to adjust the settings: the UC Video Soundbar is designed to perform out of the box. Even in poorly lit rooms, the camera performs very well, giving remote participants a great conferencing experience. Like most webcam devices, MS-10 is connected via USB. When linked to the network using Ethernet, MS-10 also acts as a bridge to deliver Internet connectivity to the host laptop over USB. This means that the PC or Mac running the video conferencing software is no longer reliant on WiFi for streaming. Nor does the operator need to connect a separate Ethernet cable to the computer for network access - all connectivity (video, audio, control and network data) is routed thru a single USB port to the MS-10. This approach saves time cabling the laptop, reduces the risk of cable tangle, delivers a solid data connection and provides reliable two-way video communication.

With MS-10 remote control and color-changing status light, you can easily control volume, pan, tilt, zoom, and mute the audio and video. You can also protect your team's privacy with one quick touch.

Key Features

• Complete voice and video VC system
• 4K sensor with auto-framing
• Designed for monitor or wall mounting (TV mounting kit included)
• USB connectivity with Ethernet and IR control
• 5-year warranty

Technical Specifications

Sensor
1/2.8” 8.29MP CMOS
Viewing Angle
110˚ (H)
74˚ (V)
120˚ (D)
Lens
Fixed Lens (F2.2)
Resolution (Max.)
3840x2160
Minimum Focus Distance
50 cm
Zoom
4x (Max)
ePTZ
Yes
Auto Framing
Yes
WDR
Yes
2D/3D Noise Reduction
Yes
Video Format
MJPEG / H.264
Presets
IR Remote Control: 3
USB Command: 128
Mic Element
5 Mics
Pickup Distance
5 Meters
Mic Frequency Response
50Hz ~ 8KHz
Sensitivity
-16 dBV
SNR
76 dBV
Echo Cancellation
Yes
Noise Suppression
Yes
Configuration
20W, Speaker Element x1 + Passive Diaphragm x1
Speaker Frequency Response
20Hz ~ 20KHz
Speaker Max SPL
95±3dB 0.5m/5W
Distortion
5% AT 5.0W / 4.47V 1KHz
Power Input
Input: 110 ~ 240 VAC,
50/60 Hz, 1.0A max.
USB
USB 3.0 Type-B,
Compatible USB2.0
RJ-45
USB bridge to Ethernet
LED Indicator
Ring, 3 Color LED
(Green, Blue, Red)
Remote Controller
Yes
Kensington
Yes
Mount
TV Mount, Bracket
Weight
3.8 lbs (1.7 kg)
Dimensions (WxLxH)
23.51” x 3.55” x 2.95”
(597 x 90 x 75 mm)
