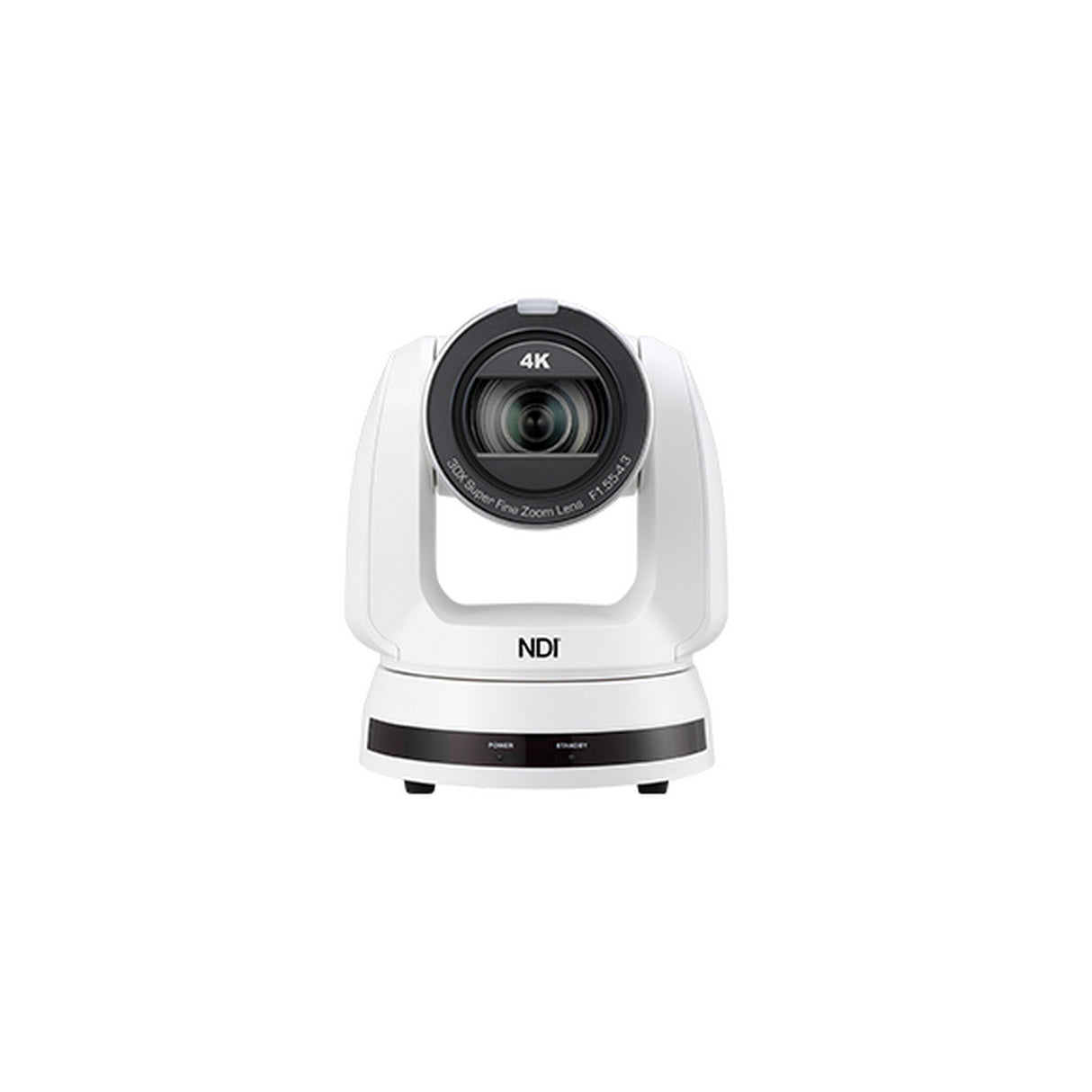

Lumens VC-A71P-HN 4K NDI 30x Optical Zoom PTZ Camera with Full NDI and NDI HX3, White

Lumens VC-A71P-HN 4K NDI 30x Optical Zoom PTZ Camera with Full NDI and NDI HX3, White

NDI High Bandwidth
Featuring full NDI, VC-A71P-HN delivers high-quality video over IP networks with ultra-low latency. Visually lossless, the I-Frame NDI codec is suitable for use in high-end video and TV production, live events and studios.

NDI|HX3 Technology
VC-A71P-HN supports the latest version of the NDI protocol, NDI|HX3. It delivers high-quality video with very low latency and connects directly to NDI networks. VC-A71P-HN outputs NDI|HX3 and full NDI output simultaneously.

Broadcast Connections
VC-A71P-HN is equipped with dual SDI ports (12G and 3G) and a genlock connector to synchronize broadcast equipment. The camera can be powered over the Ethernet (PoE++); the network port can also be used for SRT and MPEG- TS output, as well as standard web streaming protocols.

BT.2020 / Rec.709
Lumens VC-A71P-HN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71P-HN can be matched with other cameras and deliver video output optimized for new generation UltraHD monitors.

Key Features

• 4K 60 fps, 30x Optical Zoom, 1/1.8” Sensor
• HDMI / 3G-SDI / 12G-SDI / IP / USB
• Genlock Support
• Rec.709 / BT.2020 Support
• Full NDI / NDI|HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT Support
• FreeD Protocol for Live VR/AR Production
• 802.1x Support

Technical Specifications

Sensor
1/1.8” 9.17 MP CMOS
Video Format
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59. 94 / 50
720p: 59.94 / 50
Video Output Interface
HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0
Genlock
Yes
Optical Zoom
30x
Digital Zoom
12x
Horizontal Viewing Angle
63° (Wide) to 3.7° (Tele)
Vertical Viewing Angle
35.4° (Wide) to 2.1° (Tele)
Diagonal Viewing Angle
72.3° (Wide) to 4.2° (Tele)
Aperture
F1.6 ~ F4.8
Focal Length
6.5mm ~ 202mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.05 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Color Space
Standard / BT.2020 / REC.709
AR/VR systems
FreeD
Tally Light
Yes
Panning Angle
+170 ~ 170°
Panning Speed
0.01~300°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
0.01~300°/sec
Preset Positions
256
HDMI/12G-SDI
2160p59.94
IP Stream
NDI
HEVC 4K59.94fps
H.264 640x360 29.97fps
or
RTSP
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
IP Compression
HEVC / H.264
USB Output
H.264 4K30fps
MJPEG 1080p30
USB Compression
H.264 / MJPEG
IP Protocol
NDI High Bandwidth / NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE++ (IEEE802.3bt)
Input
Line In/MIC In, Phone Jack 3.5mm x1
Output
Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 /
USB 3.0
Compression Format
IP: G.711
USB: PCM
Interface
RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Protocol
VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC
DC In
12V +/- 20%
Power Consumption
POE: 40 W
DC In: 40 W
Weight
6.6 lbs (3 kg)
Dimension
9.1” x 7.4” x 7.4”
(232 x 188 x 189 mm)
