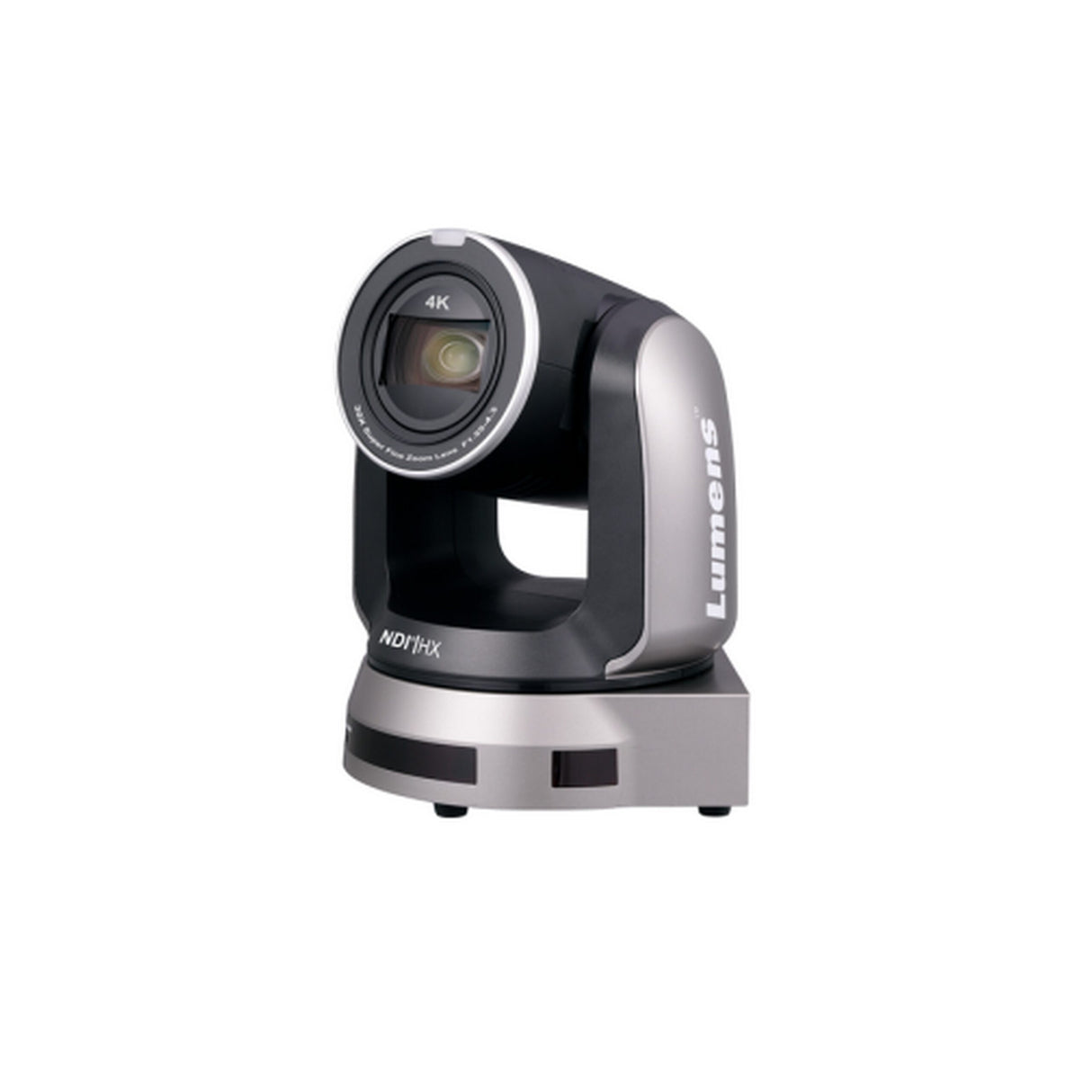

Lumens VC-A71PNB 4K NDI HX PTZ Camera, Black

Lumens VC-A71PNB 4K NDI HX PTZ Camera, Black

Ultra-low Latency Video over IP
VC-A71PN supports NDI|HX, the popular video networking format. Once connected to the local area network, it is available to the production desk as an NDI video source, controlled by software or a dedicated hardware device. The bandwidth requirement for an NDI|HX UltraHD 60fps video stream with audio and control data is minimal (around 20 Mb/s). Using this highly efficient format, multiple 4K cameras can distribute high-quality, low latency video without overwhelming the IP network.

Video Workflow Flexibility
Featuring HDMI and Ethernet outputs, the VC-A71PN can be integrated with almost any AV, broadcast, or IP workflow. While all models deliver simultaneous H.264 and HEVC streaming, the inclusion of NDI|HX adds support for fast integration with NDI infrastructures. Such a wide range of video outputs means that the camera is ready to fulfill a wide variety of roles - as a PTZ camera source for lecture capture and live event production.

Broadcast Quality UltraHD Video
Paired with a low distortion professional zoom lens, the camera's large (1/1.8”) CMOS sensor produces great 4K and HD results. Operating in lighting conditions, the smooth video output makes it an ideal camera for producing sports, theaters, and live events. Its excellent color reproduction means it's a great choice for productions where image quality is of the highest importance.

Control and Power
Lumens' PTZ cameras offer users a high degree of versatility. The VC-A71P can be powered by a dedicated 12v DC adapter, or via POE++, giving network managers the option to install devices in any position. Multiple control protocols (Visca, Pelco, and NDI) and interfaces (RS-232, RS-422, and Ethernet) enable cameras to join new or existing networks.

One Cable Installation
By adopting technologies such as Power over Ethernet, remote IP control, and network video streaming, VC-A71PN can be connected using a single network cable. This simplifies the rollout and integration of each unit to reduce the cost, timescale, and management overhead of camera installations.

Semi-Autonomous Production
Each camera supports up to 256 presets, allowing users to switch angles and zoom positions, and engage tracking movements at the touch of a button. The advanced Auto Focus, Auto Exposure, and Auto White Balance algorithms automatically deliver consistent images while zooming and panning, or under changing lighting conditions. Together, these advanced functions allow a single operator to manage multiple cameras and to produce multi-camera productions without the need for a large crew.

Key Features

• 4K UHD 60fps and 1080P 60fps output
• 30x optical zoom, 63 Degrees maximum horizontal field of view
• Supports Newtek's NDI|HX for video networking and low latency IP production
• Built-in tally light
• Maximum horizontal/vertical speed of rotation: 300 Degrees /sec
• Horizontal viewing angle: -170 Degrees to +170 Degrees
• Tilting angle up to 90 Degrees, and down to -30 Degrees
• Supports Power Over Ethernet (PoE++)
• 5 Year Warranty

Technical Specifications

Sensor
1/1.8” 9.17 MP CMOS
Video Format
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59. 94 / 50
720p: 59.94 / 50
Video Output Interface
HDMI 2.0 / Ethernet
Optical Zoom
30x
Digital Zoom
12x
Viewing Angle
63 Degrees (H) 35.4 Degrees (V) 72.3 Degrees (D)
Aperture
F1.6 ~ F4.8
Focal Length
6.5mm ~ 202mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide / Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.05 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR / VR Systems
FreeD
Tally Light
Yes
Panning Angle
+170 Degrees ~ -170 Degrees
Panning Speed
300 Degrees/ sec
Tilting Angle
+90 Degrees ~ -30 Degrees
Tilting Speed
300 Degrees/ sec
Preset Positions
256
HDMI Output
2160p59.94
IP Stream
NDI
HEVC 4K59.94fps
H.264 640x360 29.97fps
or RTSP
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
IP Compression
HEVC (H.265) / H.264
lP Protocol
NDI|HX / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE+ (IEEE802.3at)
Audio Input
Line in / MIC in
Audio Output
Ethernet / HDMI 2.0
Audio Compression Format
G.711
Control Interface
RS-232 / RS-422 / Ethernet / Remote
Control Protocol
VISCA / VISCAIP / PELCO D / NDI / ONVIF
DC In
12V +/- 20%
Power Consumption
PoE: 17.5 W
DC In: 16 W
Weight
6.6 lbs (3 kg)
Dimensions
9.1” x 7.4” x 7.4” (232 x 188 x 189 mm)
