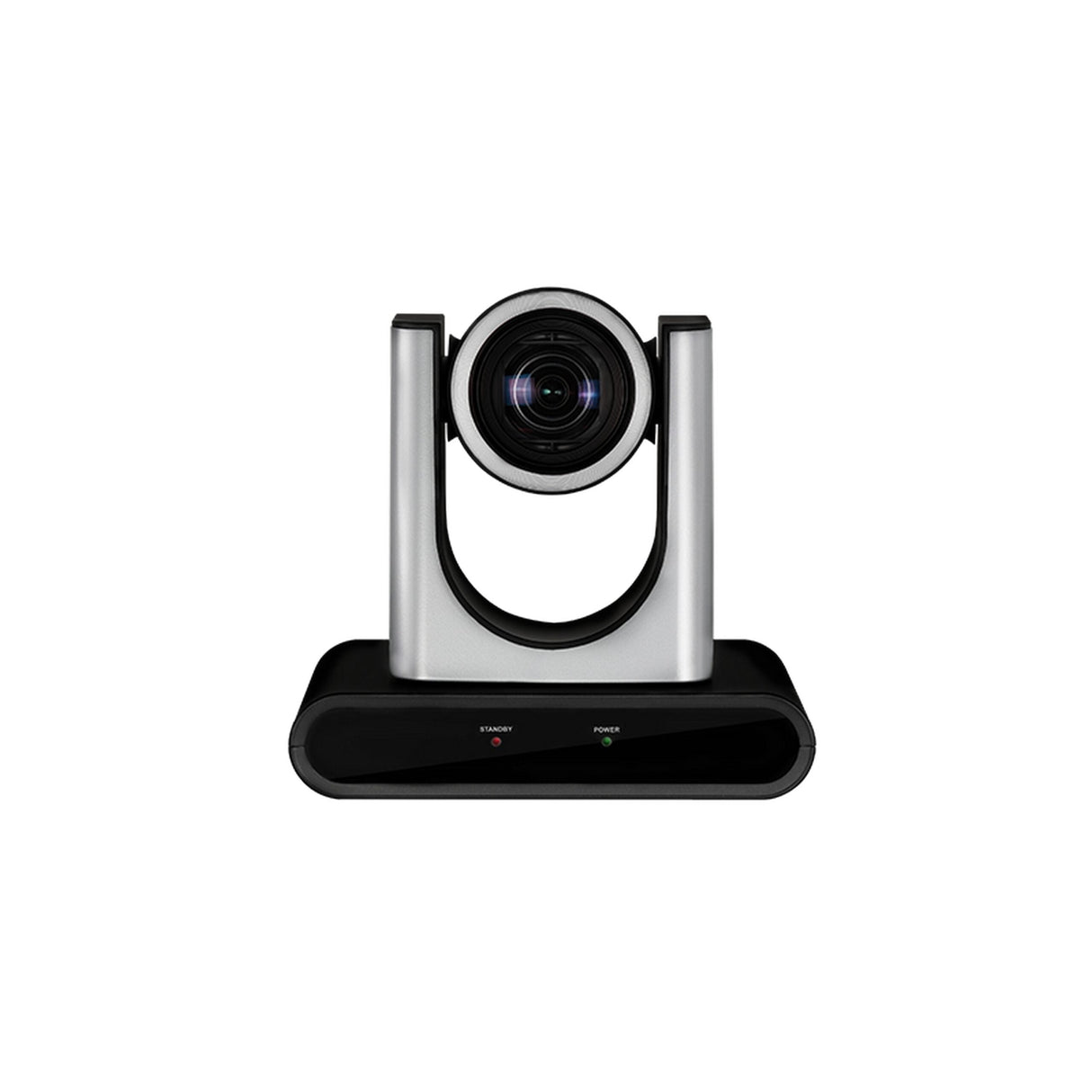

Lumens VC-R30 Full HD IP PTZ Camera with 12x Zoom, Black
Description
Description
Lumens VC-R30 Full HD IP PTZ Camera with 12x Zoom, Black
Equipped with a professional 1/2.8-inch image sensor, the VC-R30 provides great output in all lighting conditions. The sharp lens, intelligent white balance, and auto-exposure mode combine to deliver clear pictures. The camera handles skin tones, high contrast, low and mixed lighting conditions extremely well.
Covering a wide 72.5° horizontal FoV and with plug and play USB, the camera is a great option for video conferencing. The versatile zoom lens can capture everyone in a medium-sized conference room. VC-R30 connects to the host computer via USB running popular video conferencing applications such as Teams, WebEx, Skype, and Zoom.
The 12x optical zoom offers fantastic flexibility making the camera suitable for positioning anywhere from the back of an auditorium to an interactive training room. Whenever the operator needs a panning movement across a stage, a close-up focus on the presenter, or a wide-angle shot, it maintains a steady image while the camera moves. Lumens autofocus system enables the VC-R30 to deliver sharp pictures even while the camera is in motion or when the zoom angle changes.
Video output is via USB 3.0, HDMI, 3G-SDI, and Ethernet simultaneously, giving users great workflow options. The camera can be controlled and monitored locally or remotely over an IP network. It’s suitable for hosting a live and virtual conference at the same time, tackling the issue of space and engaging with audiences both local and remote. Compliant with most video production, video conference, and streaming applications, including Zoom, Skype, WebEx, Teams, Google Meet, Wowza, YouTube, OBS, and Wirecast.
Key Features
- 1080p 60fps
- Superb value for money
- 12x zoom / 72.5° horizontal field of view
- Simultaneous HDMI, 3G-SDI, USB, and IP streaming output
- Outstanding color reproduction
- 5 Year Warranty
Technical Specifications
Sensor
1/2.8” 2MP CMOS
Video Format
1080p: 60 / 50 / 30 / 25
1080i: 60 / 50
720p: 60 / 50 / 30 / 25
Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB 3.0
Optical Zoom
12x
Digital Zoom
12x
Viewing Angle
72.5° (H) 40.8° (V) 83.2° (D)
Aperture
F1.6~F2.8
Focal Length
3.9mm~46.8mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Panning Angle
+170°~-170°
Panning Speed
0.2°~120°/sec
Tilting Angle
+90°~-30°
Tilting Speed
0.2°~80°/sec
Preset Positions
256
HDMI / 3G-SDI
1080p60
IP Stream
Triple Streaming Structure
First: H.264 1080p60
Second: H.264 720p30
Webpage: H.264 720p30
IP Compression
H.264
USB Output
MJPEG 1080p30
YUV2 1080p30
USB Compression
MJPEG / YUY2
IP Protocol
RTSP / RTMP / RTMPS
PoE
PoE (IEEE802.3af)
Audio Input
Line In, Phone Jack 3.5mm x1
Audio Output
Ethernet / USB 3.0
Audio Compression Format
USB: PCM
Control Interface
RS-232 / Ethernet / USB 3.0
Control Protocol
VISCA / VISCAIP
UVC
1.1
UAC
Yes
DC In
12V +/- 20%
Power Consumption
PoE: 9W
DC In: 8W
Body Color
Black / White
Weight
3.1lbs (1.4 kg)
Dimensions (W x H x D)
7.48” x 7.28” x5.12”
(190 ×185 ×138 mm)
