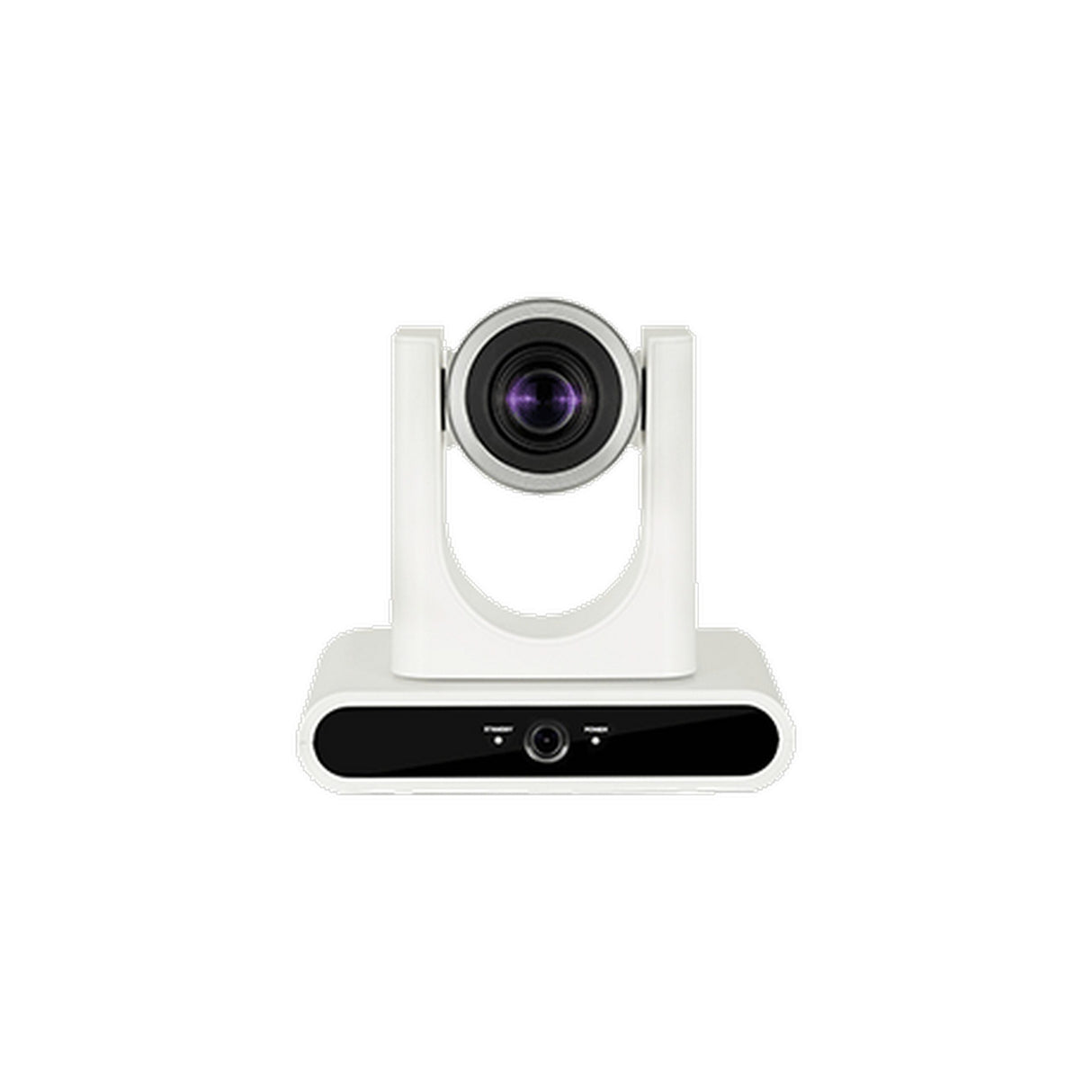

Lumens VC-TR40W 1080p AI Auto-Tracking Camera with 20x Optical Zoom, White

Lumens VC-TR40W 1080p AI Auto-Tracking Camera with 20x Optical Zoom, White

Stage Tracking and Everywhere Tracking Mode
In Stage Tracking mode, the VC-TR40 will pan left and right to follow a presenter within a defined area. In the Everywhere Tracking mode, the camera will continuously track the presenter's movement left and right, forwards and backward.

Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Gesture Control Tracking Method
The VC-TR40 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Auto-Framing and Partition Framing Mode
With the Auto-framing function, the VC-TR40 will dynamically adjust to capture all delegates, re-framing the view if participants join or leave during the session. In Partition-Framing mode, the camera will go to a preset position when the presenter walks in. When the presenter walks out the area, the camera will go back to the Auto-Framing mode.

Flexible Mounting
The VC-TR40 can be positioned upright or suspended from the ceiling installation. When inverted, the camera can re-orient the image and flip the camera controls.

Key Features

• AI-Powered Human Face Recognition
• 3 Tracking modes and 2 Framing modes
• 1080P 60fps with 20x Optical Zoom
• HDMI, Ethernet, 3G-SDI and USB simultaneous output
• Supports RTSP / RTMP / RTMPS / SRT streaming
• 5-Year Warranty

Technical Specifications

PTZ Sensor
1/2.8” 2MP CMOS
PTZ Video Format
1080p: 60 / 50 / 30 / 25
720p: 60 / 50
Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB 3.0
Optical Zoom
20x
Digital Zoom
12x
PTZ Viewing Angle
58.7° (H) / 33° (V) / 67.3° (D)
PTZ Aperture
F1.6~F2.8
PTZ Focal Length
4.9mm ~ 94mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
500mm
Video S/N Ratio
> 50dB
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Auto-Tracking
Everywhere / Stage / Partition
Auto Framing
Everywhere / Partition
Gesture Control
Yes
Panoramic Sensor
1/2.8” 2MP CMOS
Panoramic Video Format
720p30
Panoramic Viewing Angle
111° (H) / 62° (V)
Panoramic Aperture
F2.4
Panoramic Focal Length
3.1mm
Panning Angle
+170° ~ -170°
Panning Speed
0.2° ~ 120°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
0.2 ~ 80°/sec
Preset Positions
256
HDMI / 3G-SDI
1080p60
IP Stream
PTZ Camera Main: 1080p 60
Second: 720p 30
Panoramic Camera: 720p30
IP Compression
H.264
USB Output
1080p60
USB Compression
MJPEG
IP Protocol
HTTP / RTSP / RTMP / RTMPS / SRT
PoE
PoE (IEEE802.3af)
Audio Input
Line In / MIC In
Audio Output
Ethernet / USB 3.0 / HDMI / SDI
Audio Compression Format
USB: PCM
Interface
RS-232 / Ethernet / USB 3.0
Protocol
VISCA / PELCO D / ONVIF
UVC
1.1
UAC
Yes
DC In
12V +/- 20%
Power consumption
PoE: 11W
DC In: 10W
Body Color
Black / White
Weight
3.3 lbs (1.5 kg)
Dimension
7.5” x 7.3” x 5.4” (190 ×185 ×138 mm)
