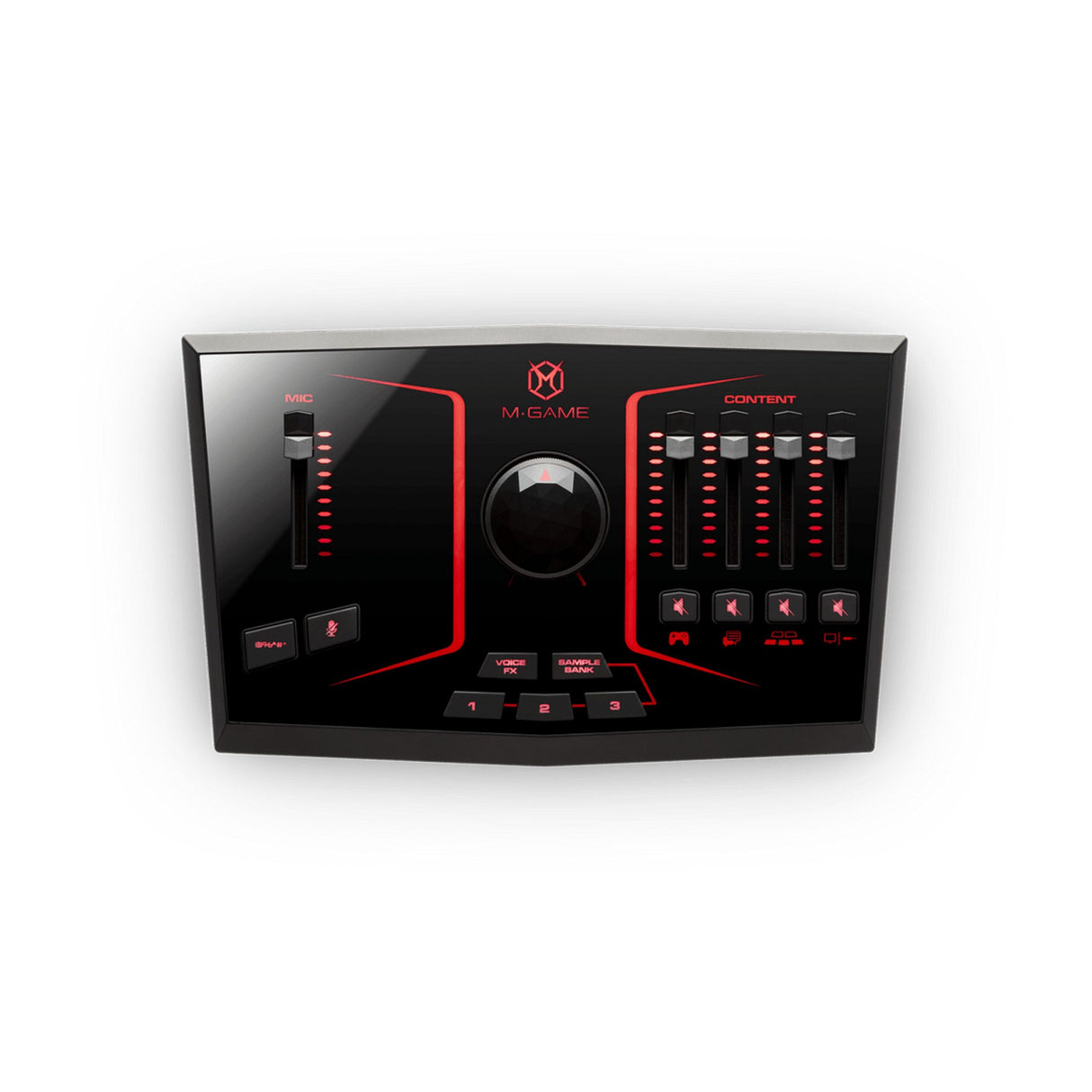

M-Game Solo USB Streaming Mixer/Interface

M-Game Solo USB Streaming Mixer/Interface

M-GAME SOLO is a USB streaming audio interface/mixer with LED lighting, sampler, and voice shaping and effects combined with a professional audio interface and physical mixing control surface.

With M-GAME SOLO, you can easily create an entertaining and customizable livestreaming set-up with tools at your fingertips that will enhance your gaming experience and wow your audience.

FOCUS ON THE GAME, NOT YOUR AUDIO
Control and mix your audio on the fly. Intuitive and easy to use controls allows you to keep your attention on your stream and game and not worry about audio complications.

SIMPLIFY YOUR SETUP, NOT YOUR CONTENT
Spend less time worrying about how to control all of your audio and more time entertaining your audience.

CUSTOMIZABLE TO ELEVATE YOUR STREAMING EXPERIENCE
Customize the brightness and pattern of your LEDs. Import, create, edit and assign images to your samples and voice effects. Personalize your sound with virtual mix controls for your stream, headphones, chat and more.

USB AND CONSOLE CONNECTION
No more buzzing, hum, or strange cable setups. Connect separate gaming and streaming PCs to the M-Game RGB Dual.

INSTANT VOICE AND SOUND EFFECTS
Trigger samples and apply voice effects.

MUTE AND #$%& BUTTON
Mic mute button with assignable audio samples, censoring has never sounded so good.

5 INDIVIDUAL FADERS PLUS HEADPHONE AND MAIN SPEAKER OUT VOLUME
Independent level controls for microphone, game, chat, samples, headphones and more.

CENTER CONTROL KNOB
Have real-time control of headphones and speaker volume.

CRYSTAL CLEAR MIC TECHNOLOGY
Enhance microphone quality by configuring Gate, Compressor, EQ, High-Pass Filter, 48v Phantom Power, Mic-Booster and De-esser FX.

CRYSTAL PREAMP CIRCUITRY
XLR mic connection with 110dB dynamic range.

FOOTSWITCH CONNECTION
Assign to any shortcut hot key or macro.

Technical Specifications

Connections
Game USB
24-bit
48kHz
USB Type B
Stream USB
24-bit
48kHz
USB Type B
Console
Optical(PCM)
Headphone Out
1/8" TRS
Headphone Mic in
1/8" TRS
XLR in
XLR
AUX in
1/8" TRS
Footswitch
1/4" TRS (for single and dual footswitches)
Power
6V DC In 2A (5.5mm barrel radius, 10mm barrel length)

Main and Headphone Outputs
Power Output
42 mW RMS (per channel into 32 OHM)
Dynamic Range
113 dB (A-weighted)
Frequency Response
20 Hz - 20 kHz (+0.1/-0.2 dB)
THD+N
0.005%, 1 kHz, 10mW (per channel into 32 OHM)
Max Output Level
+6.0 dBu (unloaded)
Output Impedance
10 OHM

Mic Input (balanced XLR)
Frequency Response
20 Hz - 20 kHz (+0.4/-1.8 dB)
Signal-to-Noise Ratio
109 dB (1 kHz, +4 dBu, A-weighted)
Dynamic Range
110 dB (A-weighted)
THD+N
0.0015% (1 kHz, +4 dBu, -1 dBFS)
Max Input Level
+5 dBu
Sensitivity
-54 dBu
Preamp EIN
-130 dBu
Gain Range
59 dB (+24dB of digital mic boost)

Mic Input (Unbalanced TRS)
Frequency Response
20 Hz - 20 kHz (+0.4/-1.9 dB)
Signal-to-Noise Ratio
105 dB (1 kHz, +4 dBu, A-weighted)
Dynamic Range
109 dB (A-weighted)
THD+N
0.0033% (1 kHz, +4 dBu, -1 dBFS)
Max Input Level
+5 dBu
Sensitivity
-54 dBu
Preamp EIN
-127 dBu
Gain Range
59 dB (+24dB of digital mic boost)

General
Power
6V DC In 2A
(5.5mm barrel radius, 10mm barrel length)
Dimensions
(width x depth x height)
10.74” x 6.6” x 2.64”
27.27 x 16.76 x 6.7 cm
Weight
2.88lbs. (1.31kg)
