Marantz AVS Audio-Video Streamer All-In-One Broadcast System

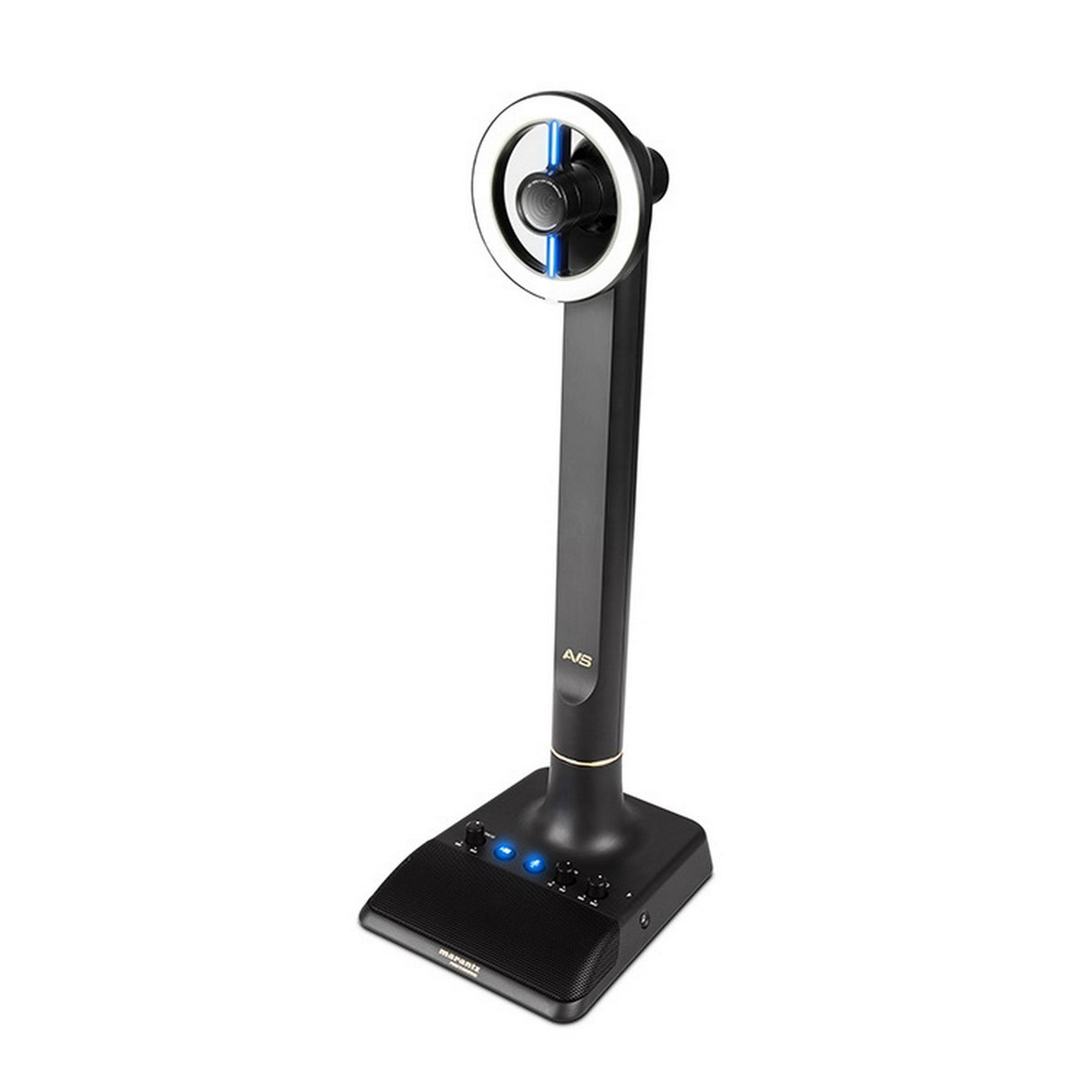

The Marantz AVS is an all-in-one broadcast system thatoffers the live streamer professional components in a compact, free-standingarray. The AVS features a full HD webcam compatible with H.264 videocompression, a high-quality 48kHz/16-bit USB condenser boundary microphoneconveniently integrated into the base of the unit, and an LED light ring,daylight-balanced, with both cool and warm filter accessories for the look of astudio production. The Marantz AVS is a unique, all-in-one broadcast tool thatis designed for live-streaming, video calling and gaming applications. It iscompact and simple, perfect on a desktop, and the lightweight design makes itportable enough to take on location.
Key Features
- All-in-one, freestanding broadcasting system
- Full HD webcam with H.264 video compression
- High-quality USB condenser boundary microphone(48kHz/16-bit) built into base
- Dimmable LED light ring / daylight-balanced with cool, warmand diffusion filter accessories
- USB-C output to computer for high-speed, low-latency
- Internal USB hub
- Headphone amplifier
Technical Specifications
Camera
Fixed-focus
CMOS Sensor
Optical resolution: 2MP native
Full HD 1080p video (up to 1920 x 1080 pixels) recording
Frame rate: 30 fps/1080p, 30 fps/720p
H.264 video compression
ON/OFF switch
Automatic low-light and white balance correction
Compatible with Windows XP, 7, 8, 10, Mac OS X, LINUX,Android
Operates in USB Video Device Class (UVC) mode
USB 2.0 - Class 2 Compliant Driver
Boundary Microphone
Element
Back electret condenser
Polar pattern
Half-cardioid (cardioid in hemisphere above mountingsurface)
Open CircuitSensitivity
-44dB - 3dB (0db = 1V/Pa @ 1KHZ)
Output impedance
2.2 k - 30% (@ 1kHz)
Sample rate
32 kHz / 44.1 kHz / 48 kHz @16-bit
Frequency response
150 Hz - 10 kHz
Signal-to-Noise Ratio
>60 dB (1kHz @ 1% THD)
Max SPL
100 dB
ON/OFF switch
Headphone Amplifier
Frequency Response
20 Hz - 20 kHz
Output power
130mW
Level control
3.5mm stereo output
Mix control to mix microphone audio with USB audio input
LED Light Ring
4” dimmable LED light ring
(30) wide-angle white LEDs @ 5600K
Accessory filters
Diffused daylight
Cool
Warm

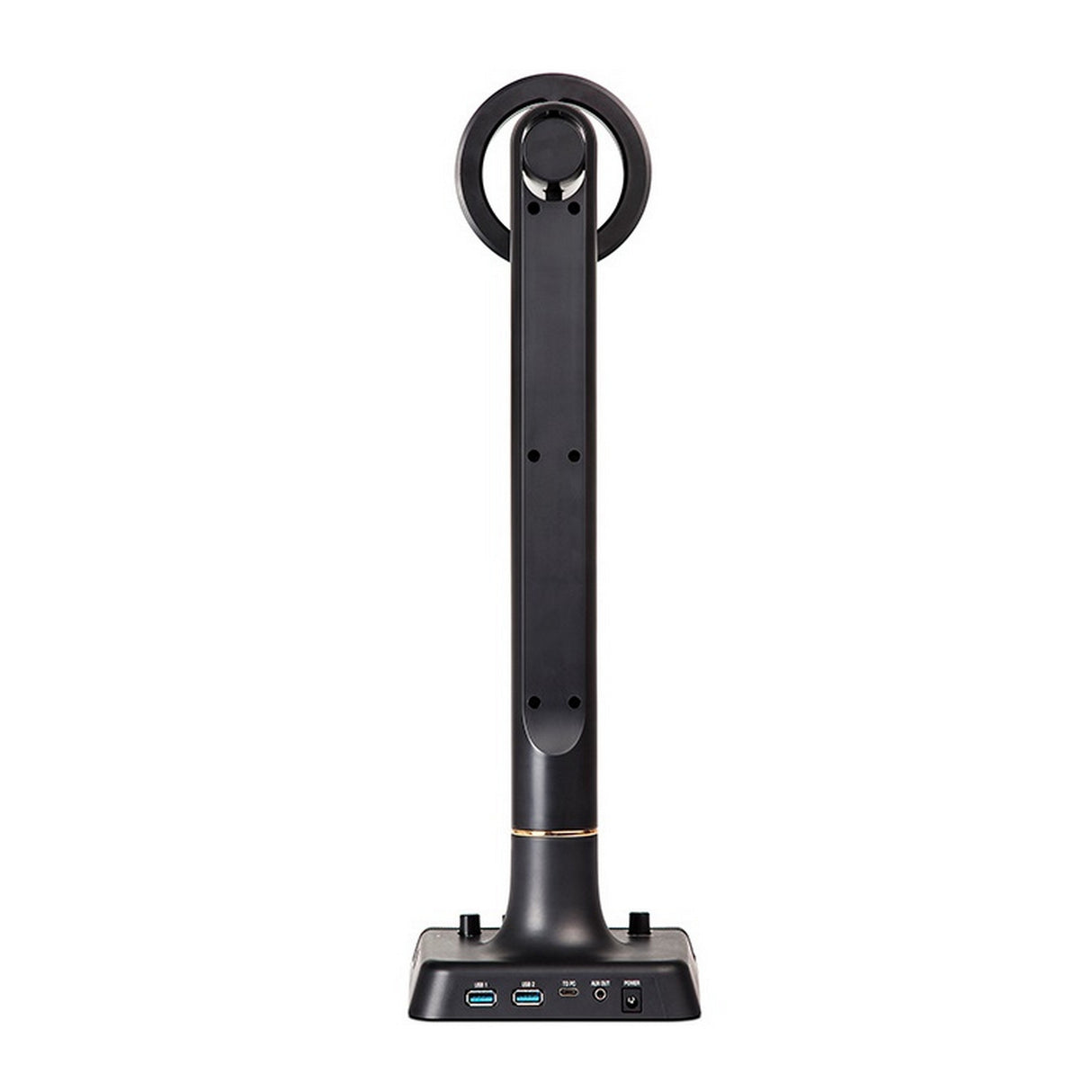

USB
USB 1 & 2
(2) Type A USB 3.0, 0.75A total available current betweentwo ports for powering devices
To PC
(1) USB-C connector / USB 3.0 connection
USB Audio In
Class 2 compliant speaker device for audio to be monitoredin headphone output - set by user in the computer
Microphone AuxiliaryOutput
Fixed line-level output on 3.5mm TRS jack
Dimensions
Height
19.1” (485mm)
Width
7.39” (188mm)
Depth
6.26” (159mm)
Weight
2.29 lbs (1.04kg)
Power
AC-DC power supply
100 ~ 240 VAC compatible
12 VDC @ 1 amp output
