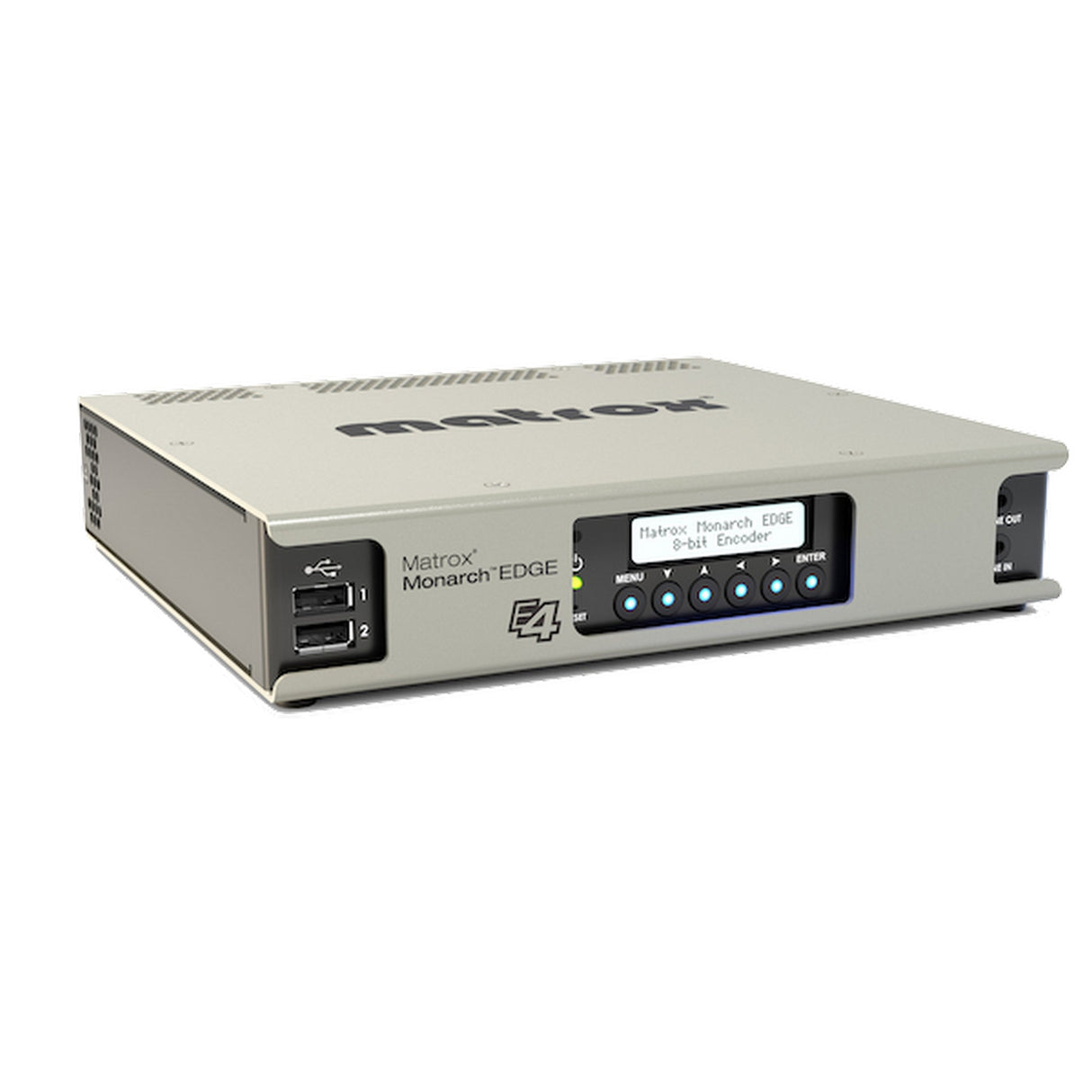

Matrox Monarch EDGE Encoder with 4 SDI Inputs

Matrox Monarch EDGE Encoder with 4 SDI Inputs

In a media environment that is constantly evolving with various online video platforms (OVPs), traditional broadcasters are starting to utilize their existing over-the-top (OTT) delivery methods to provide specialized content for the web. By improving linear programming delivery methods, broadcasters can broaden their audience reach through new online-only channels. By harnessing the latest webcasting technologies like high-frame rate 4K (HFR), 4K 360 VR, and multi-camera selection, exclusively supported on desktop, mobile, and Smart TV web-based video players, broadcasters can deliver distinctive and engaging live content with Matrox Monarch EDGE.

Delivering High-Quality Content to Any Screen
As live event production and delivery in 4K become more common, households globally are adopting faster network download speeds and 4K TVs. OVPs can downscale content optimized for large 4K TV screens to fit smaller screens when receiving 4K streams. Monarch EDGE ensures optimal 4K encoding at high frame rates (50 or 60 fps), leaving the downscaling to OVPs, resulting in a superior 4K viewing experience.

Streaming from Multiple Angles

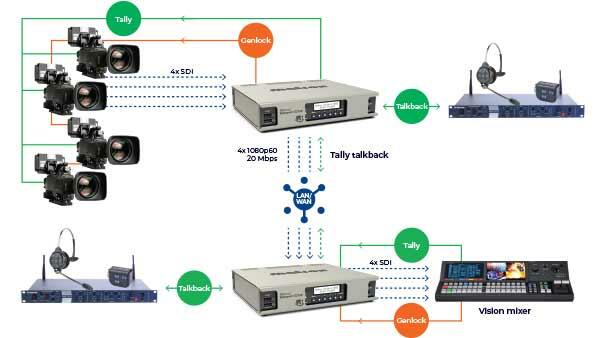

Monarch EDGE, a high-density encoding platform, can accept four independent HD inputs and stream multiple streams per input. This feature is ideal for central equipment room installations, allowing users to stream four different camera angles simultaneously with a single Monarch EDGE device.

Expanding Reach
Monarch EDGE's powerful encoding engine enables users to stream each input to multiple OVPs simultaneously, reaching over 16 destinations such as YouTube, Facebook, Vimeo, Ustream, and LinkedIn. This capability allows users to engage their audiences across various platforms, extending their reach significantly.

Uncompromising H.264 Quality
Monarch EDGE implements the H.264 codec efficiently for web contribution and live streaming, maintaining low data rates, minimal latency, and exceptional quality. Each input's independent encoding operations can be configured to stream to one or multiple destinations, ensuring the delivery of pristine images and audio.

Versatile Streaming Protocols
Monarch EDGE supports various streaming protocols, including RTMP for social media platforms like Facebook and YouTube, and the open-source SRT format for reduced latency on open networks. It also offers options like MPEG-2 TS or RTSP streams for local network delivery, and the ability to target multiple destinations for each encoding profile.

Flexible Recording Options
With Monarch EDGE, users can record SDI inputs at their preferred quality while simultaneously streaming using their chosen transport protocol. Recordings can be saved to USB 3.0 attached storage or local networks, offering post-event recording sharing in popular H.264 codecs with MOV and MP4 wrapper options, ensuring compatibility across devices.

Comprehensive Connectivity and Control
Monarch EDGE provides future-proof connectivity with 3G, 12G SDI, and ST 2110 over 25 GbE network connections, allowing for a wide range of device connectivity. Users can manage their Monarch EDGE devices through a desktop application or web interface for centralized control and configuration.

Enhanced Monitoring and Design

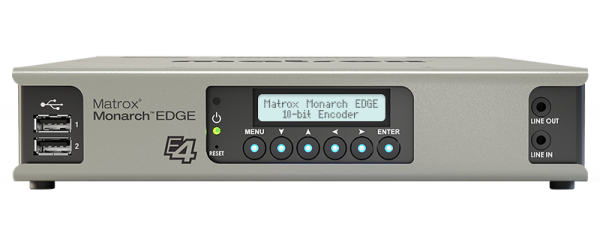

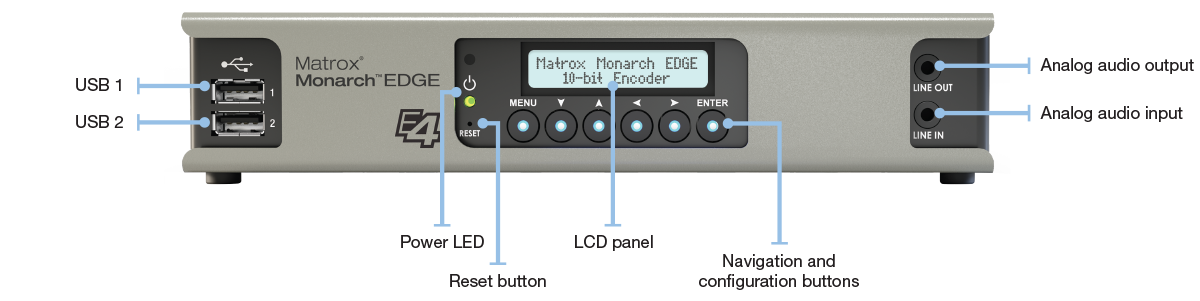

Monarch EDGE's DisplayPort output allows up to four simultaneous input previews on a single desktop monitor, ensuring that videos are ready for use. The appliance's robust design features an LCD screen for quick status access, a locking power connector for secure connections, and redundant Ethernet ports for control and video transmission.

Compatibility and Scalability
As needs change over time, flexibility and scalability are crucial in successful installations. Matrox offers a range of compatible products to help build comprehensive solutions for streaming, recording, converting, viewing, and creating video content, fostering global relationships and tailored solutions for evolving requirements.

Technical Specifications

Part number
MDG4/E10/I2 (4:2:0 8-bit, 4:2:0 10-bit, and 4:2:2 10-bit encoding)
MDG4/E8/I2 (4:2:0 8-bit encoding)
MDG4/D/I2 (4:2:0 8-bit, 4:2:0 10-bit, and 4:2:2 10-bit decoding)

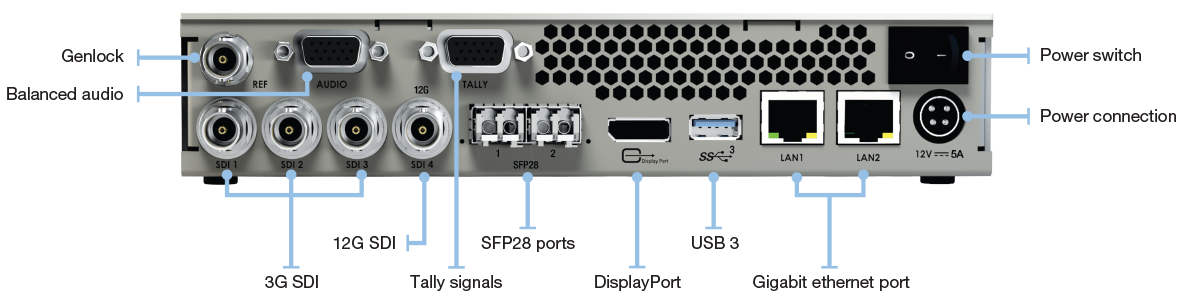

Input connections
1x 12G SDI per SMPTE ST 2082
3x 3G SDI per SMPTE ST 425
(Level A and B mapping)
UHD support using 4x SDI per SMPTE ST 425-5
Square division
2x sample interleave
2x SFP 28 network ports (up to 25 Gbps)
Capture up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7
Output connections
1x 12G SDI per SMPTE ST 2082
3x 3G SDI per SMPTE ST 425
(Level A mapping only)
UHD support using 12G SDI per SMPTE ST 2082
Square division
2x sample interleave
2x SFP 28 network ports (up to 25 Gbps)
Output up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7.
Resolutions
2160p at 50, 59.94, 60 fps
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 25, 29.97, 30 fps
720p at 50, 59.94, 60 fps
Genlock
Bi-level genlock output (encoder)
Bi-level or tri-level genlock input (decoder)
Digital audio
16x channels of embedded SDI audio is supported per input
16x channels of audio support per encode using SRT or MPEG2 TS
Analog audio
2x channels of balanced analog audio input via XLR connector
2x channels of balanced analog audio output via XLR connector
1 channel of unbalanced stereo audio output via 1/8” TRS connector
Audio processing
Embedded or analog audio channels can be compressed as a stereo pair or processed as PCM1 (uncompressed audio)
Multi-channel audio support as separate audio pairs
USB ports
2x USB 2.0 (front)
1x USB 3.0 (back)
Confidence preview
1x DisplayPort 1.1
Maximum resolution: 1920x1080
Multi-unit synchronization support
Yes
Access
Matrox Monarch EDGE Command Center (web UI)
Monarch EDGE Control Hub dedicated Windows® application
RESTful HTTP API
Physical
On-device buttons and screen for basic set up and monitoring operations
Codecs
Video: H.264/MPEG-4 part 10 (AVC)
Audio: AAC-HE and AAC-LC
Bitrate per stream
Video: Up to 120 Mbps
Audio: From 32 to 256 Kbps
Chroma sub-sampling
4:2:2 (8-bit and 10-bit), 4:2:0 (8-bit and 10-bit) – MDG4/E10/I2
4:2:0 (8-bit only) – MDG4/E8/I2
4:2:2 (8-bit and 10-bit), 4:2:0 (8-bit and 10-bit) – MDG4/D/I2
Encoding controls
Up to 5.2 level support
GOP size and structure
Variable and constant bit rate support
Average max/min data rate controls
Encoding frame rates offered independent of input frame rates
Decoding controls
Scaling of HD/UHD resolutions
Frame rate conversions
Profile
Up to High 4:2:2 profile (Hi422P)
Latency
Encode latency as low as 100ms glass- to-glass (network transfers not included in value)
Encode density/workflow examples
4:2:2 workflows
1x 3840x2160p @60fps
plus 1x 1080p30 proxy stream (8-bit)
or
4x 1920x1080p @60fps
plus 4x 720p30 proxy stream (8-bit)

4:2:0 workflows
2x 3840x2160p @60fps
or 8x 1920x1080p @60fps
or 16x 1920x1080p @30fps
VANC Ancillary Data Transport as per ST-2038
Closed captioning (CC) embedded as CEA-608/708
SCTE-104 messages (Matrox encoder to decoder)
SCTE-104 to SCTE-35 translation1
Vertical interval timecode (ST 12-2)1
HDR and colorimetry metadata1
Tally
8x tally signals (sent to cameras - encoder)
8x tally signals (sent from switcher - decoder)
Tally ports available via a 15-pin D-SUB Connector
Streaming Protocols
MGEG-2 TS over UDP or RTP
RTP/RTSP
Native RTP1 (unicast or multicast)
SRT (Caller, Listener and Rendez-Vous modes)
RTMP (encoder only)
Network
2x RJ45, 100/1000BASE-T Ethernet
2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules1
Product Dimensions
8.53 (L) x7.45 (W) x1.68 (H) in
21.7 (L) x18.9 (W) x4.3 (H) cm
Rack-mountable; two Monarch EDGE appliances can fit in 1 RU space
Product Weight
3.65 lbs (1,660 g)
Operating Conditions
32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
Power
Line voltage: 12 volts
Total power consumption: 45 watts [avg.]
Connector: DIN 4
Power Supply
Line voltage: 100-240 VAC
Frequency: 50-60 Hz
Input: external AC/DC adapter - IEC320-C14
DIN4 locking power connector
Regulatory
EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
Power-supply safety: UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CCC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1)
RoHS directive 2002/95/EC
Warranty
Two-year limited warranty with free online or telephone support
