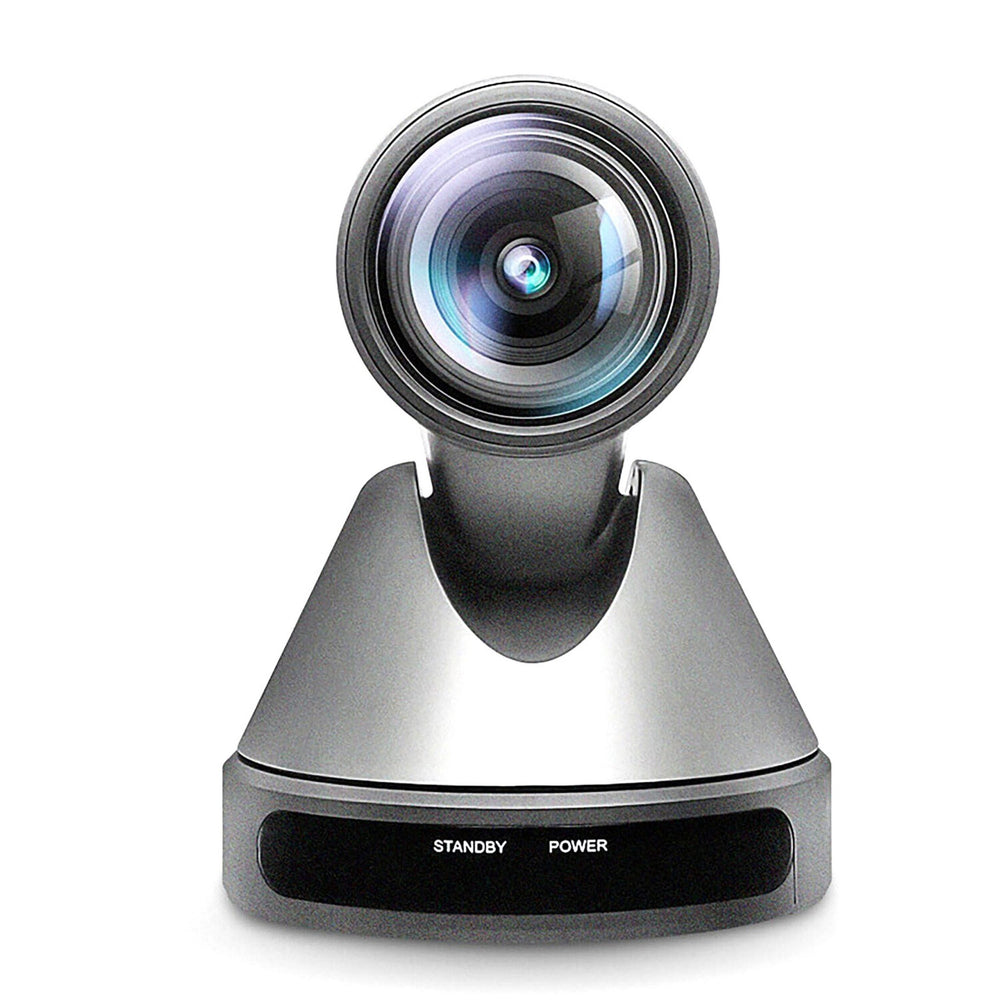

Maxhub UC P10 Conference Room 12x PTZ Camera

Maxhub UC P10 Conference Room 12x PTZ Camera

The MAXHUB UC P10 camera brings effortless access to mid-to-large video conferencing. Combining exceptional 1080p image quality with premium 12x optical zoom, the P10 brings every conversation to life. This wide-angle camera with PTZ control represents a new generation of crystal-clear collaboration. HD 1080p images bring depth to remote interactions, while intelligent color optimization ensures you never miss a crucial detail.

Low lighting conditions aren’t a problem anymore. With pioneering 2D and 3D DNR and WDR technology, the P10 can deliver crisp and clear image quality, even in difficult situations. Class-leading camera lens promise 1080p professional visuals, at any distance. Mid to large-sized meetings never looked so good.

Make sure everyone in your meeting gets the attention they deserve. HFoV 72.5 Degrees aligned with wide-angle pan and tilt control ensures full-room visibility. You can choose from 255 presets to help you jump between whiteboards and speakers instantly. With whisper-quiet motor functionality, your P10 camera won't steal the spotlight from your conversation.

Focus on the parts of your meeting that matter most to you. 12x optical zoom and 16x times digital zoom means you can bring your audience’s attention to even the finest details of your presentation, without any loss of clarity. Responsive autofocus keeps images sharp and clear, even after zooming.

You may continue using the products you like most! The P10 is a flexible camera that can work with a host of popular in-room devices and meeting tools based on RS232 protocol communication. We prioritize interoperability so you don’t have to rip and replace technology to upgrade your meeting room. Build on your current investments and bring new value to your meetings.

Forget complicated provisioning schedules and lengthy set-up times. The P10 simply plugs into your device with a USB cord for instant deployment. Just connect to your existing meeting room monitor or display and you’re ready to launch the perfect video experience.

Technical Specifications

Camera Parameters
Pixel
207M
Video System
1080P, 720P, 540P, 480P, 360P, 240Petc. Sensor 1/2.7inch, CMOS
Scanning Mode
Progressive
Lens
12x, f3.5mm~42.3mm, F1.8 ~ F2.8. Digital Zoom 16x
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s~1/10000s
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR (2500K~8000K).
Backlight Compensation
Support
Digital Noise Reduction
2D&3D Digital Noise Reduction. Video S/N ≥55dB
Horizontal Angle of View
72.5 Degrees~ 6.9 Degrees
Vertical Angle of View
44.8 Degrees~ 3.9 Degrees
Horizontal Rotation Range
±170 Degrees
Vertical Rotation Range
-30 Degrees~ +30 Degrees
Pan Speed Range
1.7 Degrees~ 100 Degrees/s
Tilt Speed Range
0.7 Degrees~ 28 Degrees/s
H & V Flip Support
Image Freeze
Support
Number of Preset
255
Preset Accuracy
0.1 Degrees
Video Format
YUY2 (BULK): max to 1080P@30fps
YUY2 (ISOC): max to 1080P@30fps
H.264 AVC: max to 1080P@30fps
H.264 SVC: max to 1080P@15fps
MJPEG: max to 1080P@28fps
USB Featured
Operate System
Windows 7, Windows 8, Windows 10, MacOS X, Linux, Android
Color System / Compression
YUV 4:2:2 / H.264 / MJPEG
I/O Port
USB 3.0
1
RS232 IN
1
RS232 OUT
1
DC IN
1
Physical Specifications
Dimension LxHxD
128.5x118x156.2mm
Net Weight
0.91Kg
Power
Input Voltage
DC 12V
Current Consumption
1.0A (Max)
Power Consumption
12W (Max)
Environmental Conditions
Operation Temperature
-10 Degrees Celcius ~40 Degrees Celcius
Storage Temperature
-40 Degrees Celcius ~ 60 Degrees Celcius
