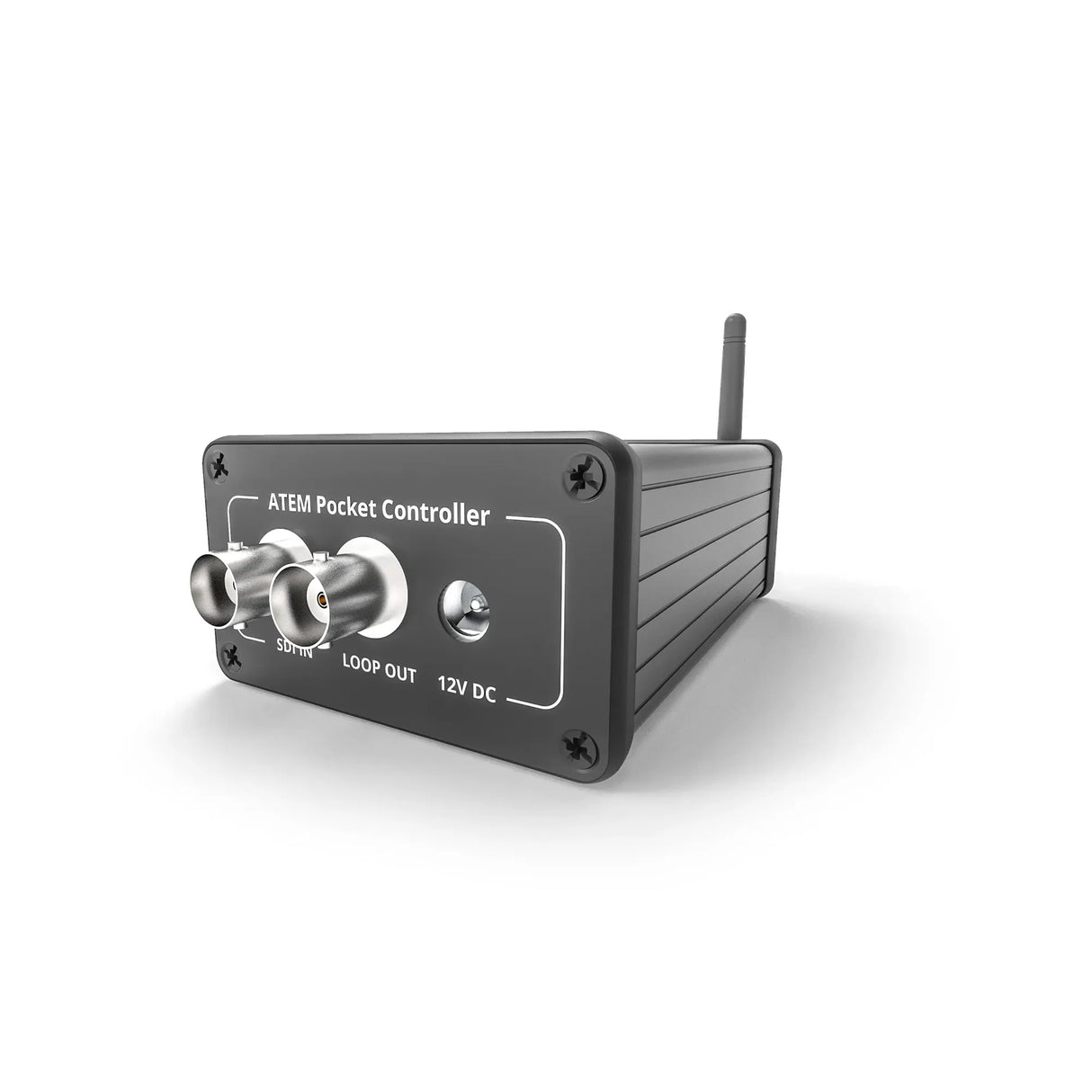

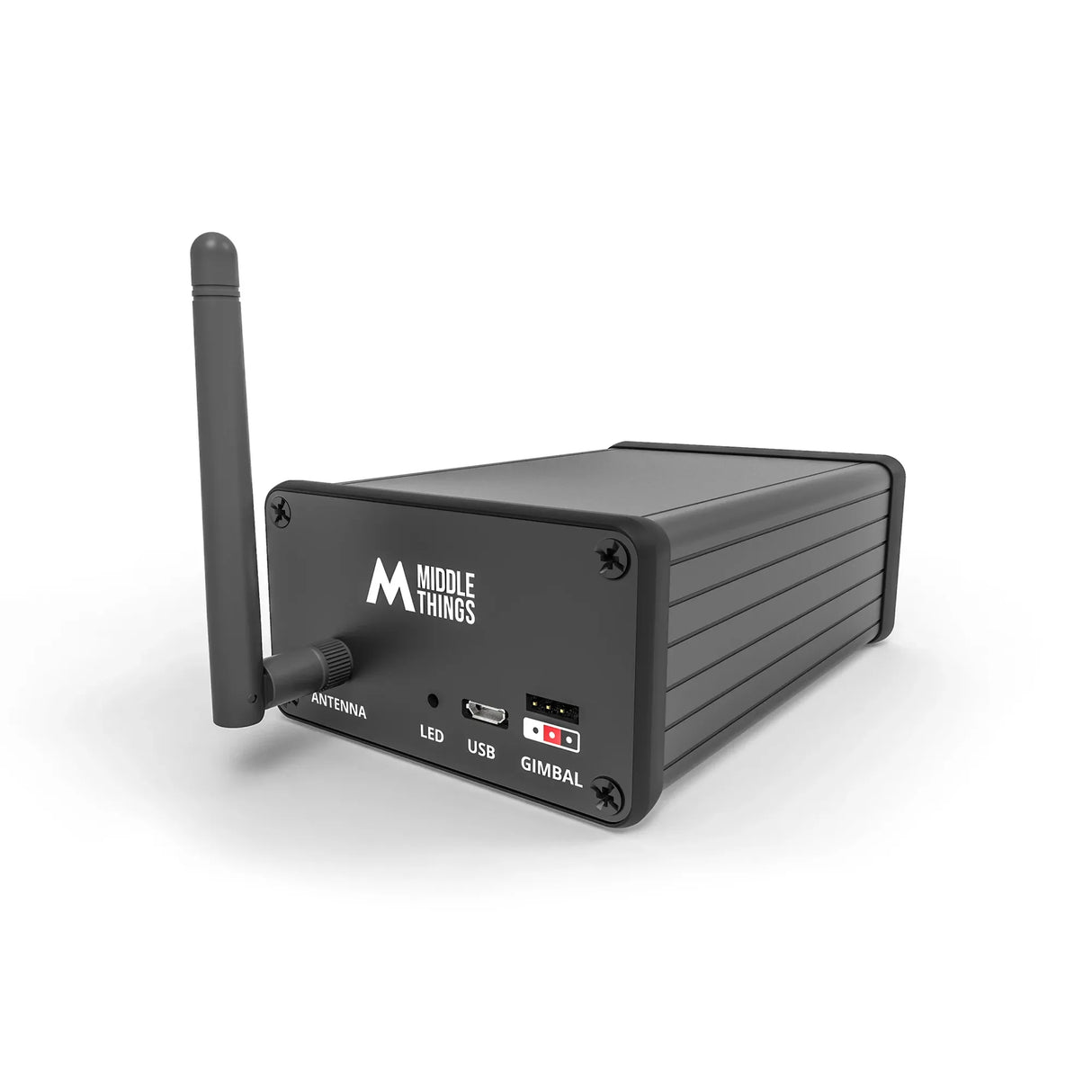

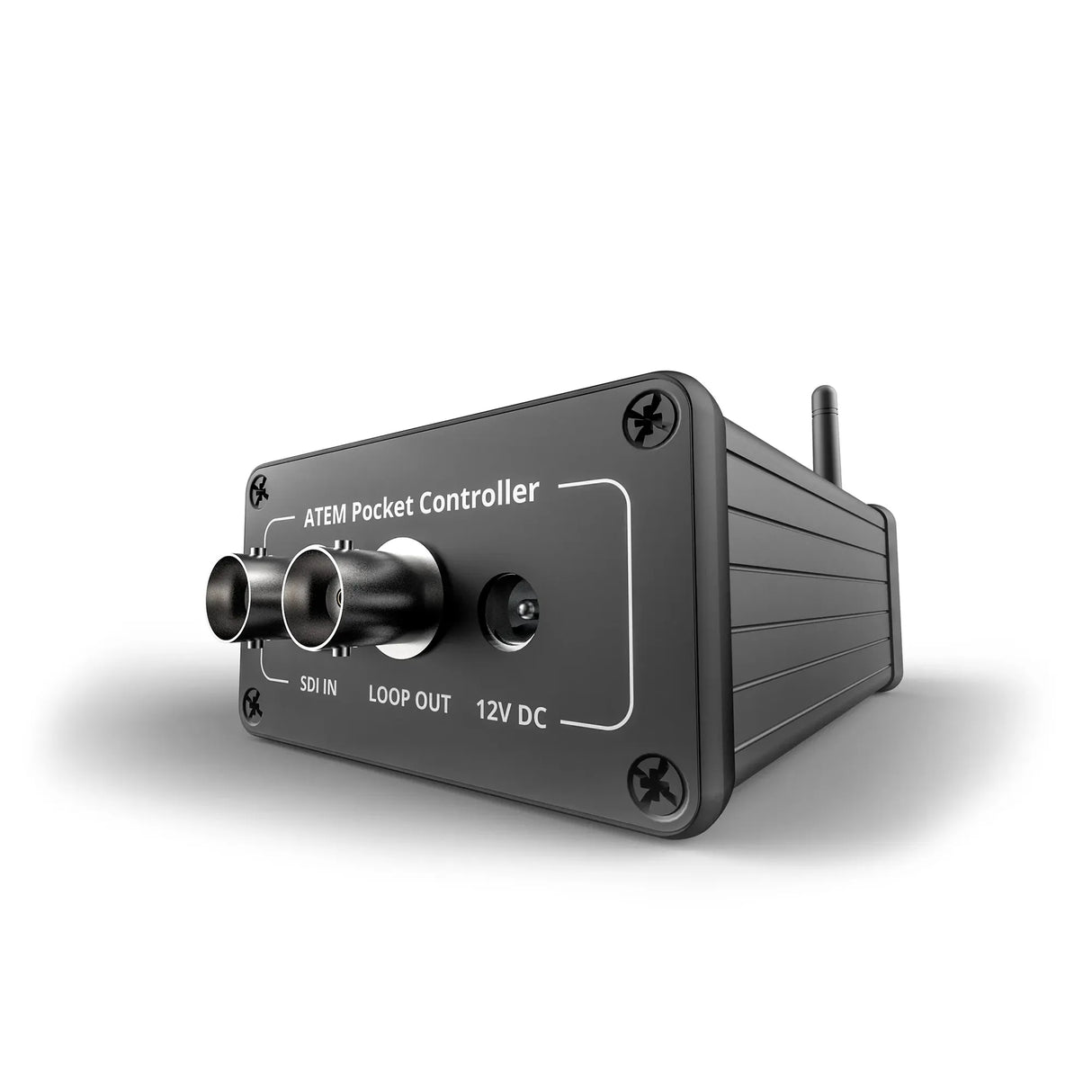

Middle Things APC Camera Controller for ATEM Software Control/ATEM Camera Control Panel

Controlling your BMPCC Settings has never been easier with the APC
Thanks to the Middle Things APC Camera Controller for ATEM Software Control/ATEM Camera Control Panel, adjusting your BMPCC settings remotely is now possible with either the ATEM Software Control or the ATEM Camera Control Panel. This means that your Live Production workflow will remain consistent with minimal changes.

The APC allows you to manage the same settings as the URSA Mini Pro or URSA Broadcast, including Shutter, Iris, WB, Gain, Primary color correction, and Zoom. Please see the compatibility section for the full list of controllable settings.

The BMPCC 4K/6K does not have an SDI input connector like the other Blackmagic studio cameras. However, with the LPC, the SDI program feed from the switcher is converted into a Bluetooth signal that the BMPCC can read. The LPC only requires a 12V DC connection to operate and also features an SDI loop out port if you want to daisy chain another Blackmagic Pocket Cinema Camera. Do note that the pocket HDMI signal still needs to be sent to the switcher.

Key Features

• The APC allows you to remotely adjust your BMPCC settings using either the ATEM Software Control or the ATEM Camera Control Panel.
• This feature ensures minimal disruptions to your Live Production workflow.
• You have the ability to control the same settings as the URSA Mini Pro or URSA Broadcast, including Shutter, Iris, WB, Gain, some Primary color correction, and Zoom.
• The LPC converts the SDI program feed from the switcher into a Bluetooth signal that the BMPCC can read, since the BMPCC 4K / 6K does not have an SDI input connector like other Blackmagic studio cameras.
• The LPC only requires a 12V DC connection to operate and also includes an SDI loop out port for daisy chaining another Blackmagic Pocket Cinema Camera. However, please note that you still need to send the pocket HDMI signal to the switcher.

Technical Specifications

IN THE BOX
1x APC
1x 12V Power Supply
1x Bluetooth Antenna

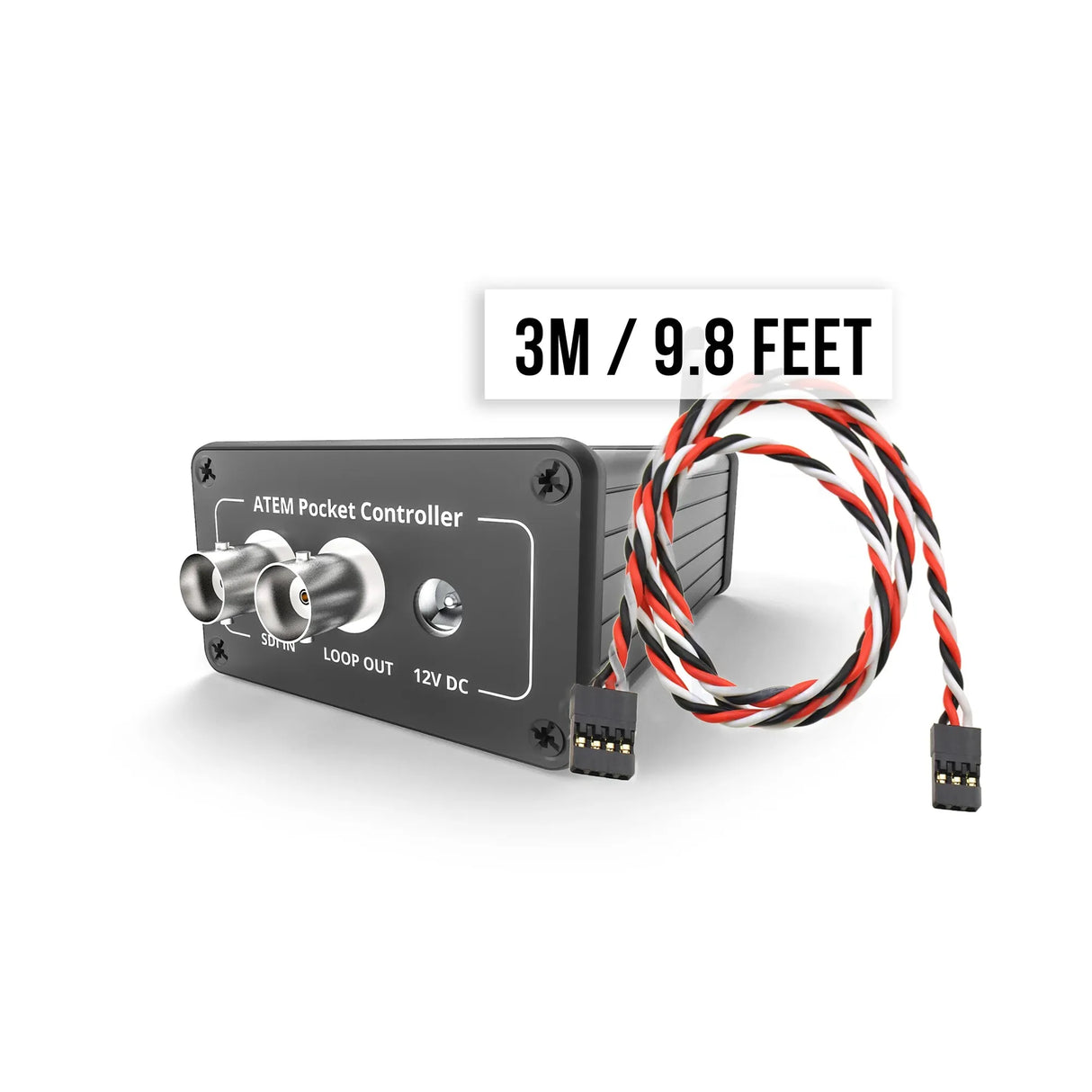

(Optional) 1x 3m/9.8Feet Ronin 4Pin to 3Pin Control Cable (requires DJI Focus Wheel)
Shipping weight
0.6kg / 24x16x11cm
