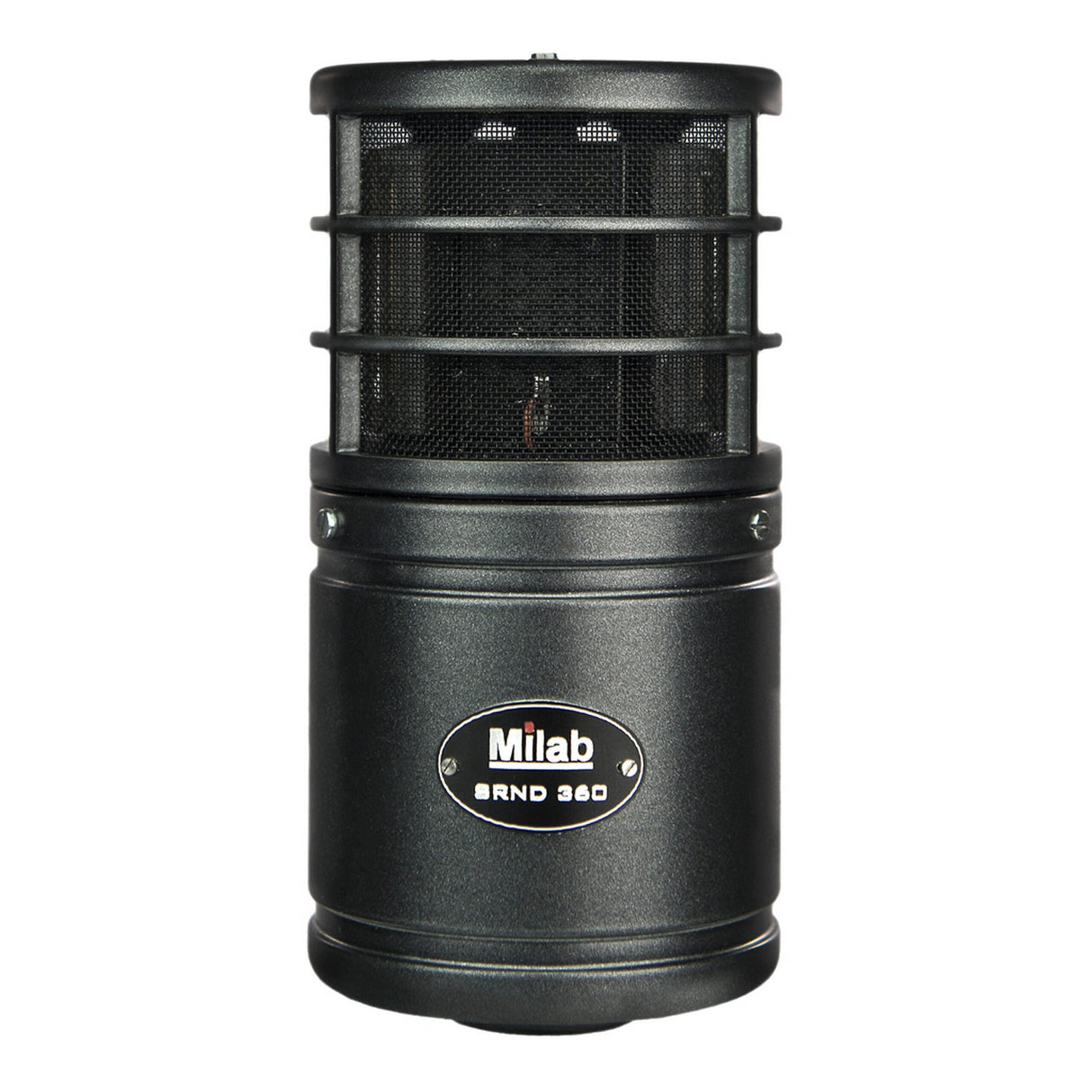

Milab SRND 360 Surround Condenser Microphone System
The SRND 360 is an innovative, versatile and very compact single-unit surround microphone that records up to six channels simultaneously using only three microphone capsules. A separate power unit processes the signals from the three Milab 2900 rectangular capsules to create three additional “virtual” capsules in empty space between the physical ones. The result is six cardioids at 60 degree spacing which can be mixed down to a number of different formats, e.g. 5.1, 6.1 or 2.1.
Key Features
- Single-unit, 6-channel coincident surround microphone
- 3 x matched Milab 2900 capsules
- Separate power unit
- 6 x XLR-outputs
- Custom shockmount by Rycote
- High-quality flight case
Technical Specifications
Type
Condenser
Article number
1134
Frequency response
20 to 20,000 Hz
Polar pattern
6 x cardioids at 60 spacing
Max SPL (1 % THD at 1 kHz)
130 dB
Sensitivity at 1 kHz
17,5 mV/Pa (- 1 dB)
A-weighted noise level (IEC 179-A)
12 dBA
Power supply
From power unit
Output impedance
<200
Minimum load impedance
1 k
Connection
6 x 3-pin XLR
Cable length
10 m or customer specified
Length
120 mm
Diameter
60 mm
Net weight
685 g
