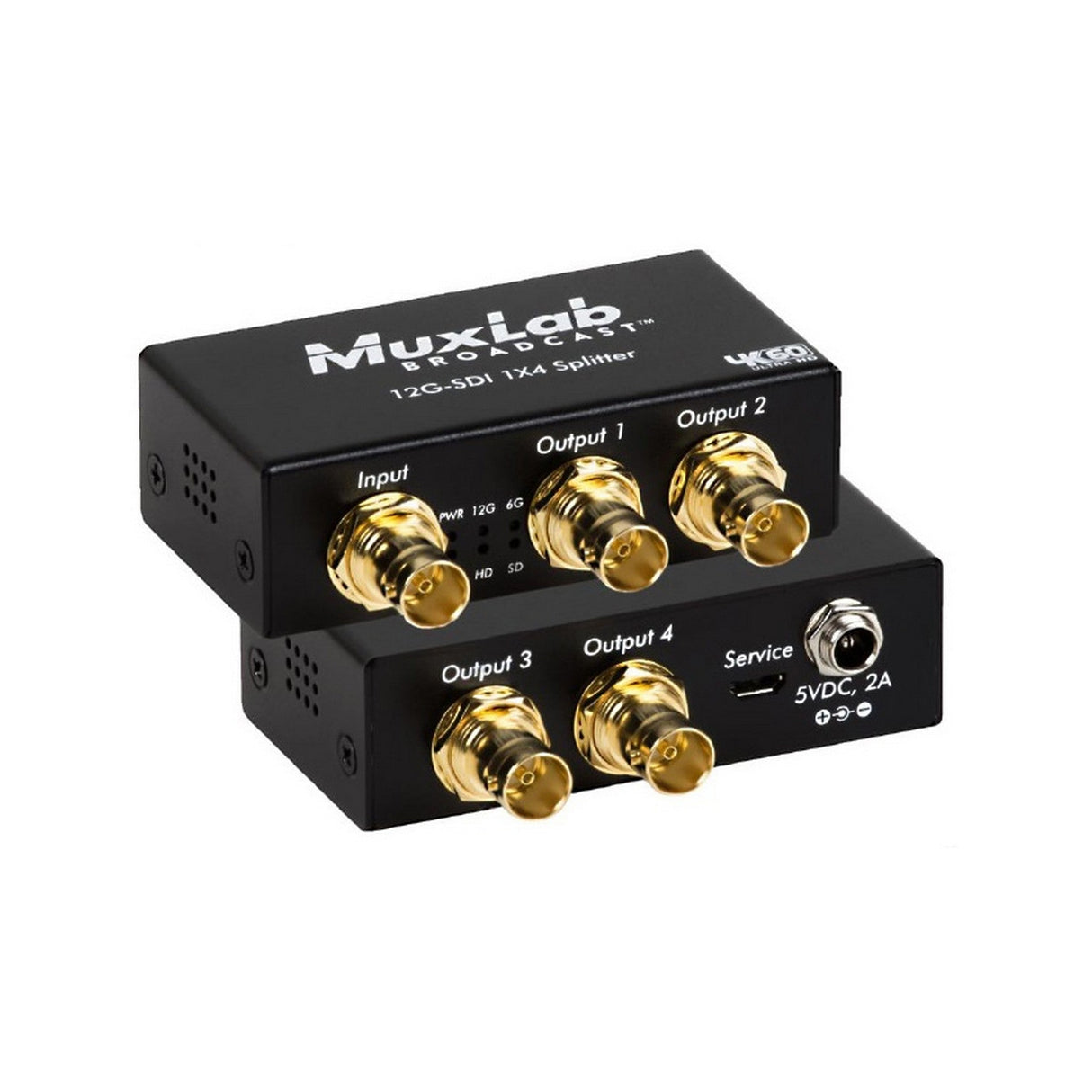

MuxLab 500727 12G-SDI 1 x 4 Splitter
Introducing the 12G-SDI 1x4 Splitter, 4K/60 (500727)
Distribute and amplify a single 12G/6G/3G/HD/SD-SDI source up to four 12G/6G/3G/HD/SD-SDI displays with the 12G-SDI 1x4 Splitter, 4K/60 (500727). This splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI), and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates it at the output for extending distances between your source and displays.
Key Features
- Enables distribution and amplification of one 12G/6G/3G/HD/SD-SDI source to four displays
- Capable of supporting video resolutions up to 4K @ 60Hz
- Supports various SDI formats including 12G/6G/3G/HD/SD-SDI
- Automatically detects and re-clocks the SDI signal for optimal performance
- Regenerates the signal at the output to extend distances between source and displays
- Features LED diagnostic for easy troubleshooting and monitoring
- Provides HD audio support, including 480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI), and 4K/60 (12G-SDI)
- Offers seamless integration with existing SDI setups
- Compact and reliable design for professional installations
- Ideal for applications requiring simultaneous display of high-quality video on multiple screens
Technical Specifications
Environment
12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI
Devices
Camera, projectors, monitors, TV
Transmission
Transparent to the user
Detection
Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal
Bandwidth
11.88bps & 11.88/1.001Gbps
Data Rates
1.485, 2.97, 5.96 & 11.88 Gbps
Output Impedance
75Ω
Signals
SDI protocol
Supported Resolution
12G-SDI
2160p50/59.94/60Hz (4:2:2)
6G-SDI
2160p23.98/24/25/29.97/30Hz (4:2:2)
3G-SDI
1080p50/59.94/60Hz (4:2:2)
HD-SDI
1080p/23.98/24/25/29.97/30Hz 720p/50/59.94/60Hz 1080i/50/59.94/60Hz
SD-SDI
NTSC (59.94Hz), PAL (50Hz)
Audio
Up to 8 Audio Channels
Ancillary Data
Supported
Input Signal
12G-SDI
SMPTE ST2082
6G-SDI
SMPTE ST2081
3G-SDI
SMPTE 424M, 425M
HD-SDI
SMPTE 292M, 296M
SD-SDI
SMPTE 259M, 344M
Connectors
One (1) BNC Female 75 Ohms, Gold Plated for input
Four (4) BNC Female 75 Ohms, Gold Plated for outputs
One (1) Locking Barrel Jack 2.1mm Power Connector
Note: RG59 coaxial cables not included.
Cable Equalization
12G-SDI up to 230ft (70m)
6G-SDI up to 330ft (100m)
3G-SDI up to 594ft (180m)
Cable RG-59 or better cable required
Power Supply
One (1) 110-240V/5VDC power supply with interchangeable blades
Power Consumption
3.0 Watt (Max)
Temperature Operating
0 Degrees to 40 Degrees C Storage: -20 Degrees to 60 Degrees C
Humidity
Up to 90% non-condensing
Enclosure
Metal
Dimensions
3.19 x 1.61 x 0.95” (81 x 41 x 24mm)
Weight
0.37Lbs (0.17kg)
Compliance Regulatory
FCC, CE, RoHS Flammability: 94V0
Item Includes
1x 110-240V/5VDC power supply with interchangeable blades
Warranty
2 Year
