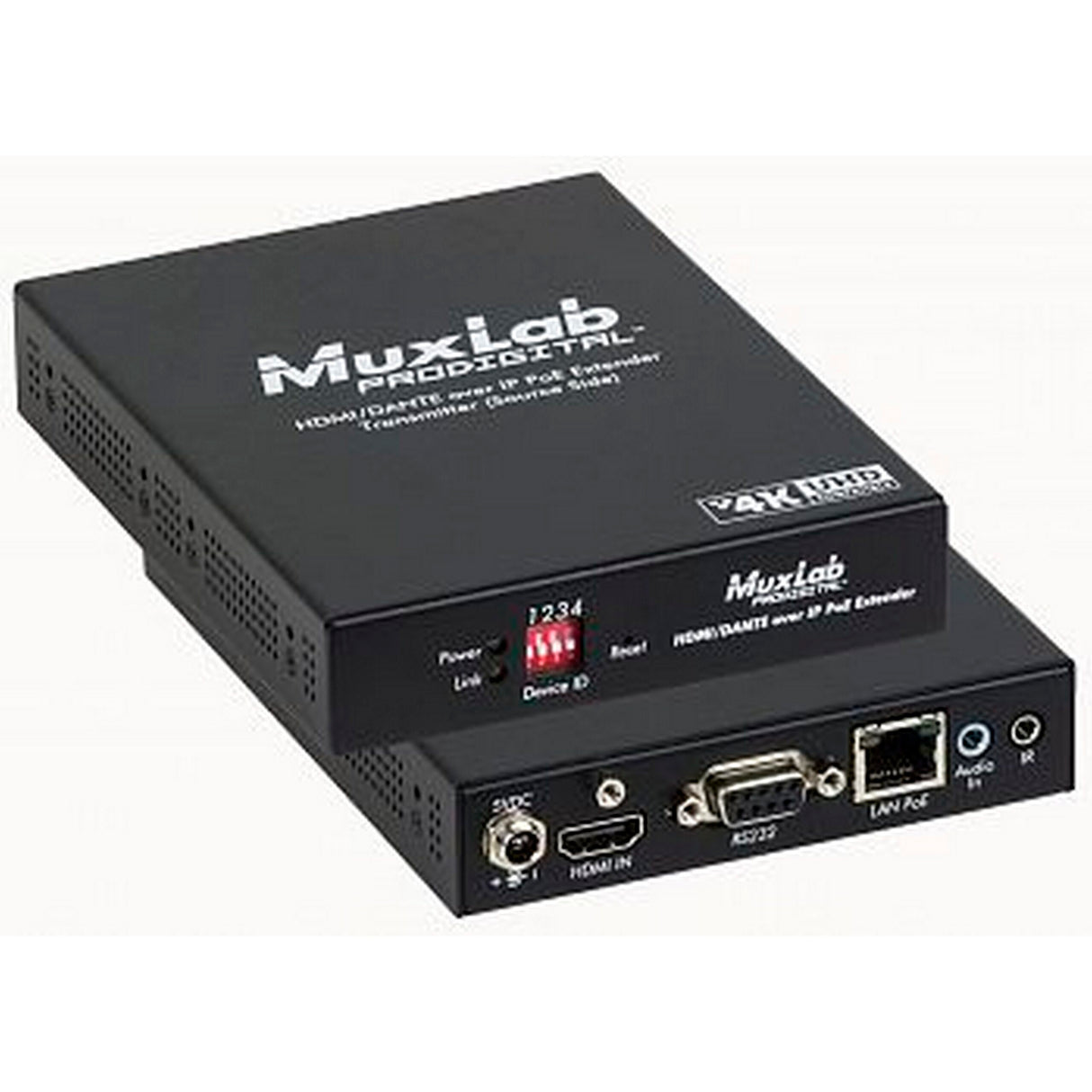

MuxLab 500759-TX-DANTE HDMI/Dante over IP PoE Transmitter, UHD-4K

MuxLab 500759-TX-DANTE HDMI/Dante over IP PoE Transmitter, UHD-4K

The HDMI/Dante over IP PoE Transmitter, UHD-4K allows HDMI video equipment supporting up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0), plus Dante audio equipment to be connected and extended to create an independently distributed audio and video network. 100s of Single Displays and Video Wall Displays of user configurable size (X by Y) may be supported, depending on network bandwidth. Audio can be independently distributed to 100s of Dante supported audio devices. Supports HDR at up to 4K @ 30Hz (4:2:2). The unit can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch, and supports PoE (PD) when powered by a PoE (PSE) Ethernet Switch. An IR Emitter or IR Sensor, if required, may be purchased separately for IR based remote control applications.

Key Features

• Configure a Video Wall array with 100s of displays, depending on network bandwidth
• Supports video up to 4K @ 30Hz (4:4:4), 4K @ 60Hz (4:2:0) and HDR at 4K @ 30Hz (4:2:2)
• Visually lossless video (1 frame latency)
• Distribute audio to 100s of Dante supported devices
• Supports 2CH audio insert? Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
• Transmission up to 330ft (100m) over Cat5e/6
• RS232 and Directional IR for remote control of end-devices
• PoE powered
• HDMI AV managed via Pro Digital Network Controller (500811), MuxControl App and 3rd Party Control Apps
• Dante Audio managed by Audinate software
