MuxLab 500777-TX HDMI/VGA/USB Over IP PoE Wall Plate Transmitter
Description
Description
MuxLab 500777-TX HDMI/VGA/USB Over IP PoE Wall Plate Transmitter

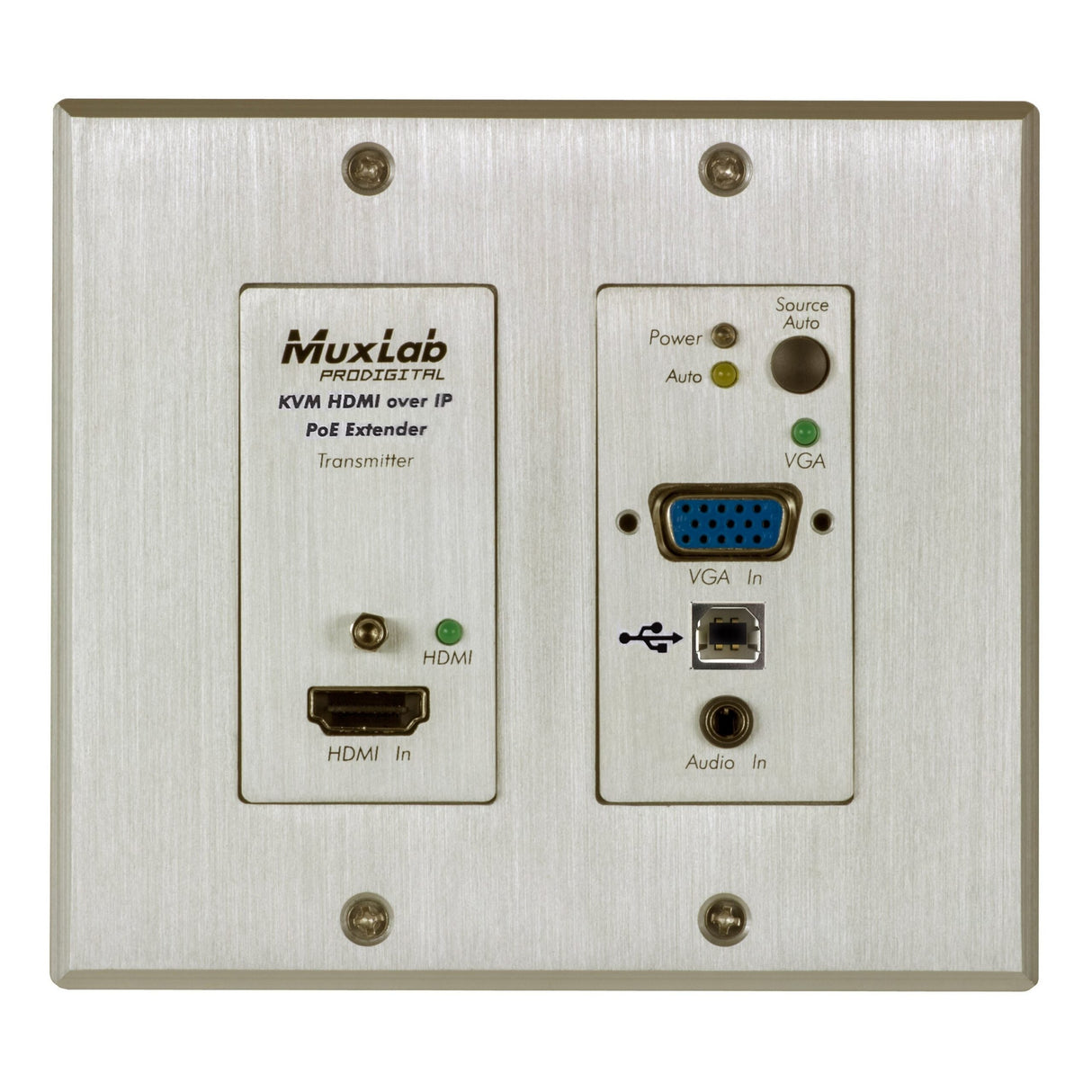

The MuxLab 500777-TX HDMI/VGA/USB over IP PoE Wall Plate Transmitter allows HDMI, VGA and USB equipment to be connected up to 330ft (100m), with video supported at up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. The USB port may be used for extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several Transmitters and Receivers to the same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA/USB over IP PoE Wall Plate Transmitter also supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Additional Transmitters may be purchased separately depending on the intended application and number of units required.
Key Features
- HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
- VGA 1920x1200 @ 60Hz, with 2CH Audio-In
- Selectable HDMI / VGA with Audio inputs, with auto switching capability
- Remotely managed over IP & locally managed via push button
- Extend HDMI, VGA with 2CH Audio, and USB 2.0 up to 330ft (100m) over Cat5e/6 cable
- HDCP 2.2 compliant
- Compatible with 500758-RX and 500759-RX over IP Receivers
- PoE powered
- Managed via Pro Digital Network Controller (500811), MuxLabControl Smartphone & Tablet App & 3rd Party Control Apps
Technical Specifications
Environment
HDMI, VGA and USB connectivity.
Devices
Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart: White Boards
Bandwidth
300MHz
Signals
HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), VGA (1920x1200), USB 2.0 and HDCP 2.2
Maximum Distance
Cat5e/6: 330ft (100m) - Note: When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
Latency
Typical one (1) frame (16ms)
Compression
JPG2000
Bandwidth
Up to 500Mbps
Network Requirement
1 Gig Ethernet with IGMP, Jumbo Frames and PoE
PoE
IEEE 802.3af
Power Consumption
3W
Temperature Operating
0° to 40°C Storage: -20° to 85°C; Humidity: Up to 95% non-condensing
Dimensions
5.03" x 4.53" x 1.66 (128mm x 115mm x 42mm)
Weight
1.35 lb (0.61 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Connectors
Note
Cables not included
(1) HDMI receptacle
(1) Female DB15 connector for VGA
(1) USB Type B connector
(1) RJ45S for Ethernet connectivity
(1) 3.5mm jack for Audio-In
(1) 2.1mm jack for power
RJ45 Pin Configuration
Pin 1 Pin 2 (T)
Pin 3 Pin 6 (T)
Pin 4 Pin 5 (T)
Pin 7 Pin 8 (T)
