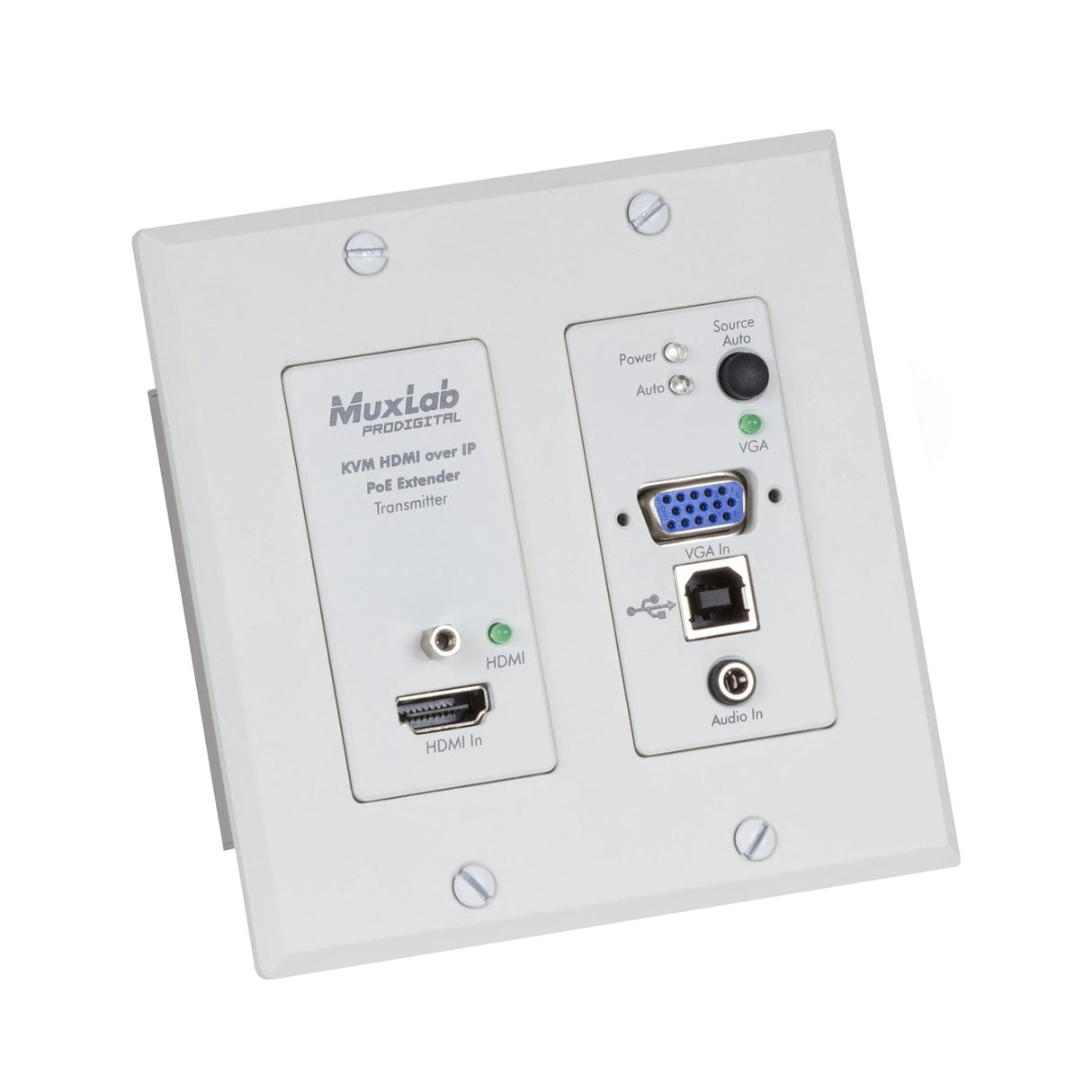

The Muxlab 500777-TX-WH HDMI/VGA/USB over IP PoE Wall Plate Transmitter allows HDMI, VGA and USB equipment to be connected up to 330ft (100m), with video supported at up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. The USB port may be used for extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several Transmitters and Receivers to the same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA/USB over IP PoE Wall Plate Transmitter also supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Additional Transmitters may be purchased separately depending on the intended application and number of units required.

Key Features

• HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
• VGA 1920x1200 @ 60Hz, with 2CH Audio-In
• Selectable HDMI / VGA with Audio inputs, with auto switching capability
• Remotely managed over IP & locally managed via push button
• Extend HDMI, VGA with 2CH Audio, and USB 2.0 up to 330ft (100m) over Cat5e/6 cable
• HDCP 2.2 compliant
• Compatible with 500758-RX and 500759-RX over IP Receivers
• PoE powered
• Managed via Pro Digital Network Controller (500811), MuxLabControl Smartphone & Tablet App & 3rd Party Control Apps

Technical Specifications

Environment
HDMI, VGA and USB connectivity.
Devices
Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards.
Bandwidth
300MHz
Signals
HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), VGA (1920x1200), USB 2.0 and HDCP 2.2.
Connectors
One (1) HDMI receptacle
One (1) Female DB15 connector for VGA
One (1) USB Type B connector
One (1) RJ45S for Ethernet connectivity
One (1) 3.5mm jack for Audio-In
One (1) 2.1mm jack for power
Note
Cables not included
Maximum Distance
Based on a maximum length of 6.6ft (2m) of HDMI cable per end. Cat5e/6: 330ft (100m)
Note
When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
Latency
Typical one (1) frame (16ms)
Compression
JPG2000
Bandwidth
Up to 500Mbps
Network Requirement
1 Gig Ethernet with IGMP, Jumbo Frames and PoE
RJ45 Pin Configuration
Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring.
RJ45 Link
Pin 1 Pin 2 (T)
Pin 3 Pin 6 (T)
Pin 4 Pin 5 (T)
Pin 7 Pin 8 (T)
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
PoE
IEEE 802.3af
Power Consumption
3W
Operating Temperature
32° to 104°F (0° to 40°C)
StorageTemperature
-4° to 185°F (-20° to 85°C)
Humidity
Up to 95% non-condensing
Dimensions
5.03 x 4.53 x 1.66" (128 x 115 x 42mm)
Weight
1.35 lb (0.61 kg)
Compliance Regulatory
FCC, CE, RoHS Flammability: 94V0
