MXL 606 | Small Diaphragm Drum/Instrument Microphone
Description
Description

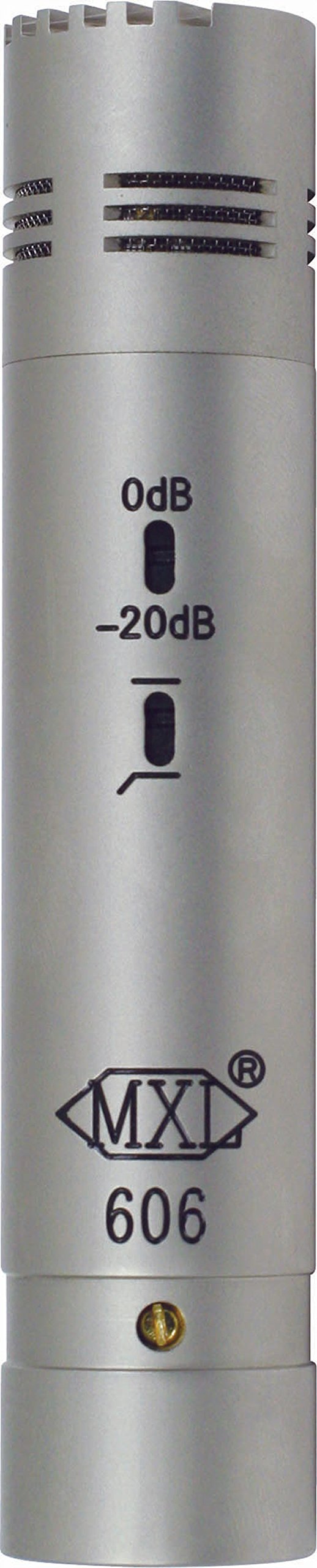

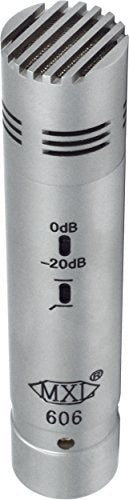

MXL 606 Small Diaphragm Drum/Instrument Microphone
The MXL 606 instrument microphone delivers the sound you are looking for when recording snare drums, high-hat cymbals, acoustic guitars, pianos, percussion, stringed instruments and more. Using transformerless FET circuitry and a gold-sputtered diaphragm capsule provides a clean and clear tone. The 606 also features a -20 dB switchable attenuation pad and low-frequency roll-off.
Key Features
- Small-diaphragm instrument mic with a warm, detailed sound
- Transformerless FET circuitry for clean, clear recordings
- Bass roll-off and attenuator to fit any recording situation
- Excellent detail in the midrange and at the top end
- Ideal for percussion, acoustic guitars and pianos
Technical Specs
Type
Pressure Gradient Condenser Mic
Diaphragm
6 micron gold-sputtered
Capsule Size
22mm / 0.87”
Frequency Response
30Hz - 20kHz
Polar pattern
Cardioid
Impedance
150 ohms
Equivalent noise
17 dB (A-weighted IEC 268-4)
S/N Ratio
77 dB (Ref. 1 Pa A-weighted)
Max SPL for .5% THD
137 dB
Power Requirements
48V phantom power (+/- 4V)
Size
110mm x 23mm / 4.3” x 0.89”
Sensitivity
15 mV/Pa
Weight
0.25 lbs / 113g
Metal Finish
Silver
