Nektar WIDIFLEX Bluetooth Adapter for MIDI Devices

Add Wireless Bluetooth BLE MIDI Capability to Traditional MIDI Devices

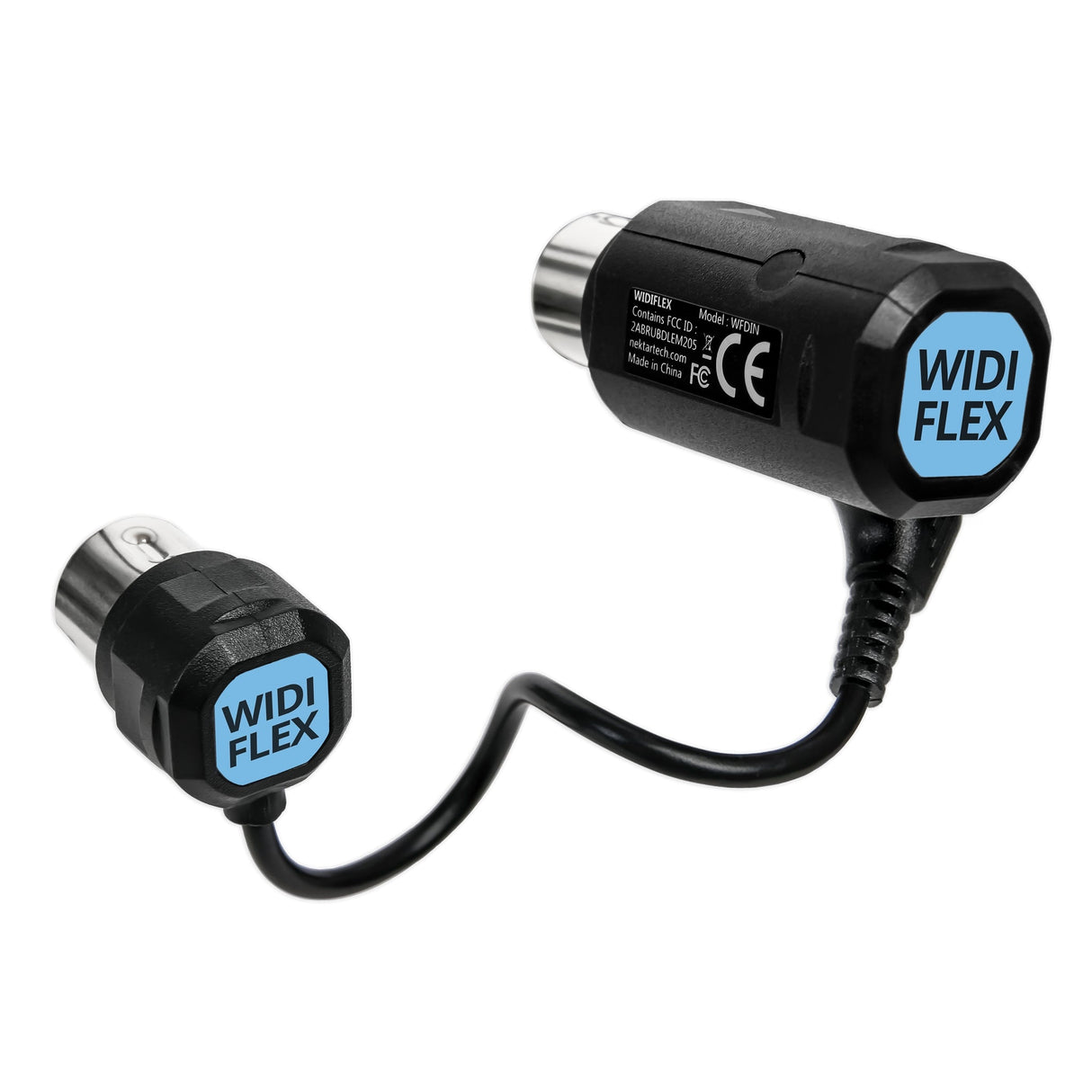

Introducing Nektar WIDIFLEX Bluetooth Adapter for MIDI Devices, a pair of MIDI DIN plugs with integrated Bluetooth functionality in the larger plug that links to your MIDI Out socket. No external power source required; WIDIFLEX draws power from your gear’s MIDI Out socket.

Easy Setup: Simply plug WIDIFLEX into your MIDI gear’s MIDI DIN sockets. Connect the larger plug to the device's MIDI Out and the smaller detachable one to the MIDI In.

For direct MIDI-to-MIDI connections, connect a second WIDIFLEX set to the gear you wish to link with. Automatic Pairing ensures both devices connect effortlessly, enabling full bi-directional transmission of all MIDI data, including MIDI Clock and MPE.

For Computer-to-MIDI connectivity with current Mac OS computers or iOS, pair WIDIFLEX with the built-in Bluetooth. On Windows, you may require a WIDIFLEX USB for connection. Once plugged in, it automatically links to your WIDIFLEX, making the new MIDI port visible in your DAW.

Bluetooth (BLE) to MIDI connections are fully supported. Utilize WIDIFLEX to pair Bluetooth MIDI controllers with your stage piano or synthesizer, allowing you to perform wirelessly from the stage.

Connect Multiple WIDI Devices: WIDIFLEX offers more than just one wireless Bluetooth MIDI connection. Establish multiple fixed pairs and WIDI groups of up to 5 devices for enhanced functionality.

Key Features

• Enhanced Bluetooth 5 technology ensures a secure connection for live and stage performances

• Enjoy 2x the speed and 4x the range compared to previous Bluetooth versions

• SCA Technology offers unique Smart Connectivity Algorithms for optimized WIDI performance

• Experience ultra-low 3 ms latency, setting a new standard for latency reduction

• Benefit from automatic pairing for instant setup convenience

• Create WIDI Groups with up to 5 devices for seamless connectivity

• Transmit all MIDI messages, including MPE, over Bluetooth with MIDI Clock and SysEx support

• Manage settings and groups easily with the free iOS/Android WIDI App from CME

• No need for external power as it supports 5V and 3.3V via MIDI Out Din

• Enjoy a groundbreaking technology that enhances your musical experience.

Technical Specifications

Technology
Bluetooth 5, MIDI over Bluetooth LE
100% MIDI compatible: Transmits all MIDI data including MIDI clock, SysEx and MPE
Latency
As low as 3ms (tested with 2 paired WIDIFLEX devices).
Range
20 metres / 65 feet without obstruction.
Automatic pairing, also with standard BLE MIDI controllers
Compatibility
All WIDI devices (including CME and Artesia Pro), Bluetooth MIDI controllers, Mac, iPhone, iPad with Bluetooth 4.0 or later.
Compatible OS
iOS 8 or later, Mac OS Yosemite or later, any MIDI OS* (Windows/Linux) if paired with optional WIDIFLEX USB.
Connectors
MIDI in/out (5-pin DIN). WIDIFLEX MIDI out connector must always be connected, MIDI in is optional for bi-directional transmission.
Firmware update
Wireless via CME WIDI APP (iOS/Android)
Power Supply
5V/3.3V via host device’s MIDI out.
Weight & Dimensions
Main device: 12 g, 21 x 21x 49 mm, Sub device: 11 g, 18 x 18 x 24 mm
Included
WIDIFLEX Bluetooth LE MIDI DIN device (output)
MIDI DIN -> 1/8” TRS jack adapter cable (input)
Quick Start User Guide
