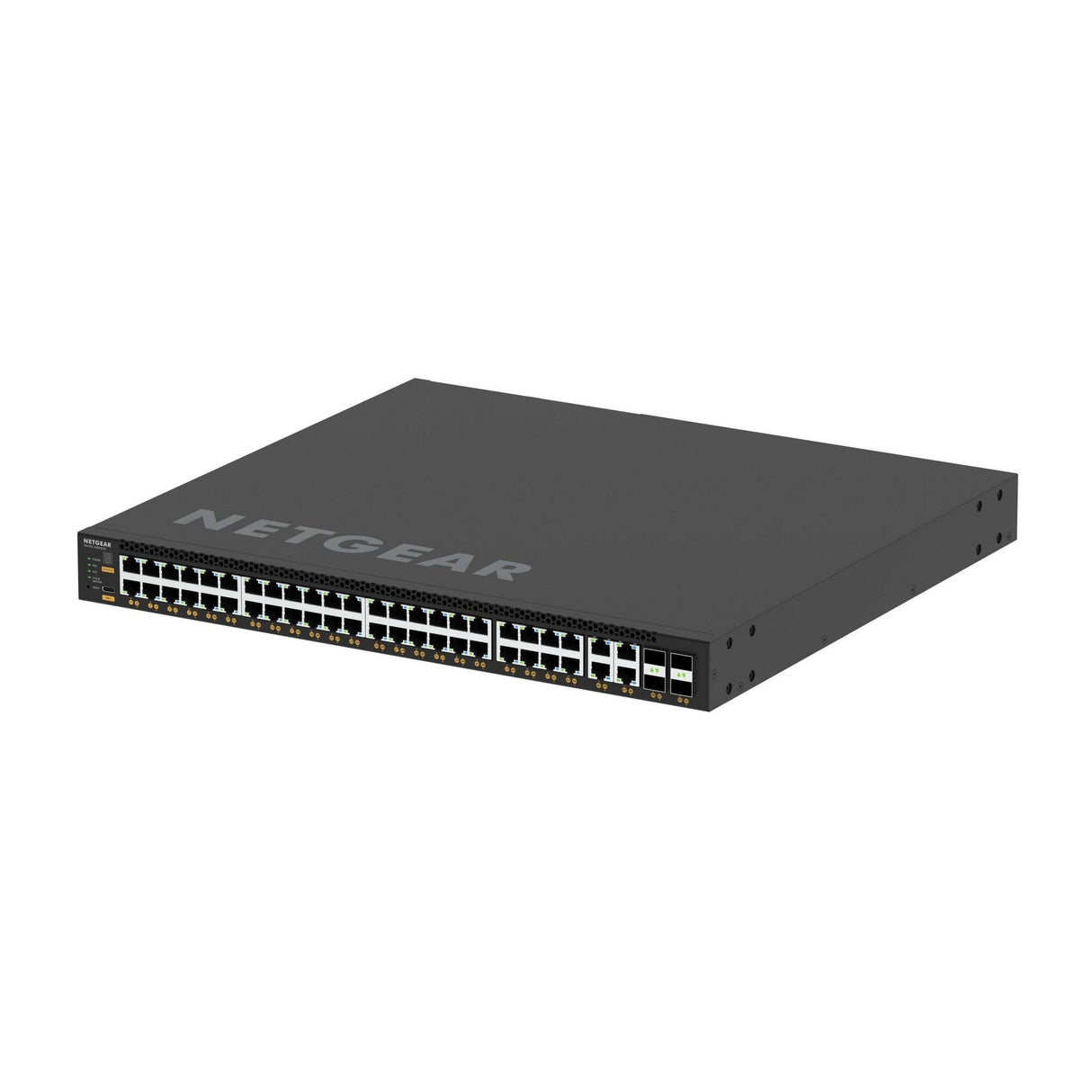

Netgear MSM4352-100NES 52-Port 44x2.5G, 4x10G/Multi-Gig PoE++ and 4xSFP28 25G Managed Switch

Netgear MSM4352-100NES 52-Port 44x2.5G, 4x10G/Multi-Gig PoE++ and 4xSFP28 25G Managed Switch

Power and Throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Fast, Easy Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus On the Event, Not Fan Noise
Most models have quiet mode which greatly reduces fan noise.

Designed for Av Over Ip Right Out of The Box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Key Features

• 44 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
• 550W internal power supply providing 194W of PoE budget
• 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
• Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
• The PoE budget can reach 3,314W, the redundant PoE budget can reach 1,794W
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
• NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• Lifetime Next Business Day Hardware Replacement
• TAA compliant SKU is available. Contact your sales representative

Technical Specifications

Width
440mm
Depth
400mm
Height
43.2mm
Weight
7.34kg (16.18lb)
Primary Port Speed
2.5 Gigabit
Number of Ports
52 (44 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
PoE Ports / Budget
48 PoE++ (90W/port), 194W Base, up to 3,314W Budget
IGMP Support
Enhanced (NETGEAR IGMP Plus)
Jumbo Frame Support
Yes, up to 12kb
AVB Support
Yes, included
Acoustics
Quiet Mode 34dB@25ºC
Power Consumption
With PoE: 351.5W/1198.62Btu/hr
Without PoE: 133.5W/419.19Btu/hr
Standby without any port connection: 56.5W/177.41Btu/hr
PSU Compatible Models
APS350Wv1
APS600Wv2
APS920Wv1
APS2000Wv1
