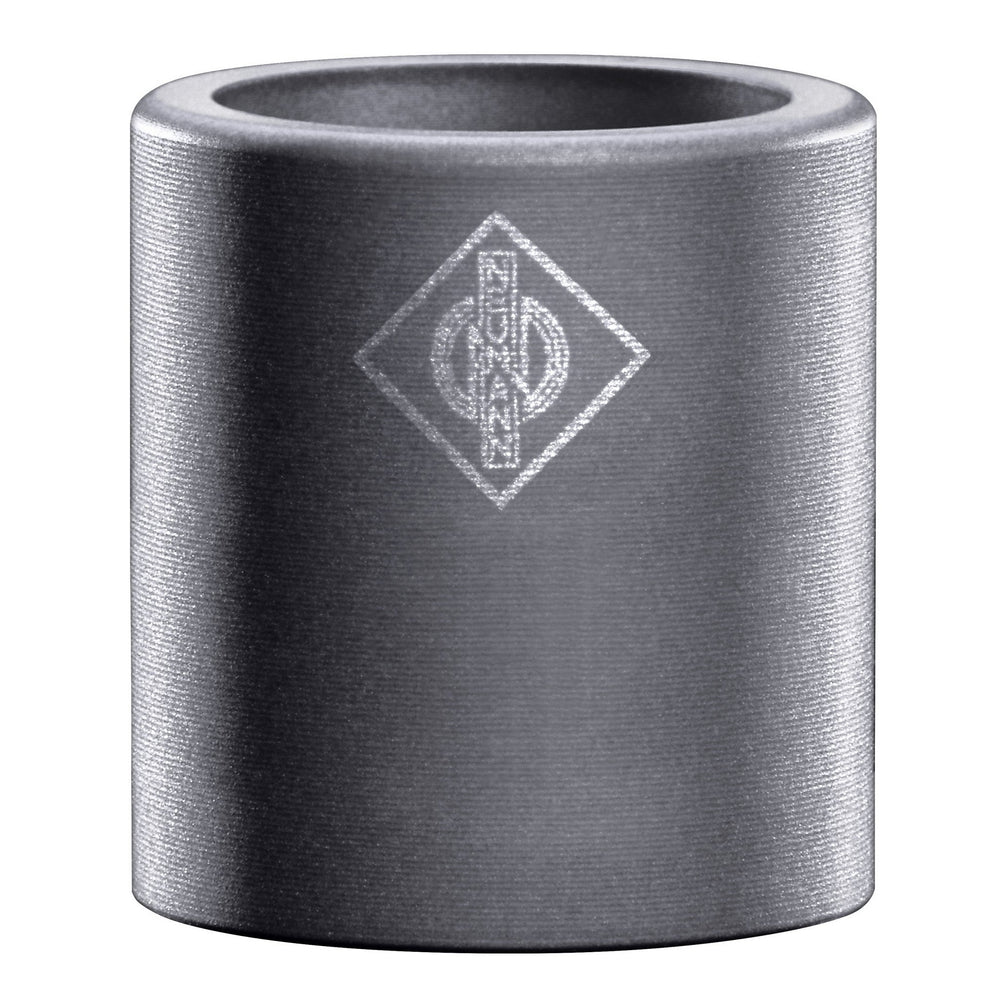

Neumann KK 13 Omnidirectional Capsule Head for MCM Microphone System

The Neumann KK 13 Omnidirectional Capsule Head for MCM Microphone System is a revolutionary microphone that captures the authentic sound of acoustic instruments in a natural, open way. It's omnidirectional feature makes it perfect for quieter stages and recording scenarios where feedback and separation are not an issue. Unlike other microphones that have limitations with electret principles, the KK 13 produces a wide bass and mid-range without proximity effect, and a confident elegance in the treble. From the quietest nuances to the strongest fortissimo, this microphone delivers all details with absolute clarity, thanks to its high maximum SPL.

The Capsules of the MCM System: The 8 Parts of Perfection
The Neumann engineers have reimagined the production process for electret-based microphones to create the KK 13. The KK 13's layered structure design makes every module of the KK 13 (omni) and KK 14 (cardioid) perform perfectly, delivering the optimal sound quality. The components are assembled by hand in Germany, and the titanium housing is not only an indication of a road-tough design but also an expression of the inner elegance in design and engineering.

Tonal Consistency and Road-tough Design
The layered design also ensures an unheard-of level of tonal consistency. This means that every capsule sounds exactly the same, saving engineers the time required for basic EQing and delivering consistent sound right from the early soundcheck.

As a part of the Neumann Miniature Clip Mic MCM System, the new series comes with an unparalleled low cost of ownership, designed to last for years instead of just a season. It has a modular design that allows for easy replacements and nine mounting clips that allow for reliable positioning on any instrument while staying gentle to every surface. The system is compatible with all the essential wireless systems and includes cable options for a 3.5 mm jack, Lemo, 4-pin mini-XLR, MicroDot, or wired connection.

Key Features

• Overcoming previous limitations, the design of the capsule now includes multiple layers.
• The clarity of sound has been significantly improved, especially in important frequency ranges.
• The microphone has an omnidirectional pattern, capturing sound from all directions.
• The tonal consistency of the microphone is unparalleled, ensuring a uniform sound quality.
• The microphone is built to withstand tough conditions on the road and has a long-lasting design.

Technical Specifications

Acoustical Operating Principle
Pressure transducer
Directional Pattern
Omni
Frequency Response
20 Hz … 20 kHz
Sensitivity
3.3 mV/Pa ≅ -49.6 dBV
Rated Impedance
10 ohms
Signal-to-Noise Ratio, CCIR (re. 94 dB SPL)
62 dB
Signal-to-Noise Ratio, A-Weighted (re. 94 dB SPL)
74 dB
Equivalent Noise Level, CCIR
32 dB
Equivalent Noise Level, A-Weighted
20 dB-A
Maximum SPL for THD 0.5%
153 dB SPL (with Usupply = 10V, Rfeed = 20 kohms)
Dynamic Range of the Amplifier, A-Weighted³⁾ for THD < 0.5 %
133 dB
Max. Output Voltage
12 dBu
Power Supply
max. 10 V, with Rfeed = 20 kohms
Current Consumption
0.22 mA
Weight
2.8 g
Diameter
12 mm
Length
13.5 mm
Operating Temperature Range
0 °C - +40 °C
Operating Humidity Range
0 %…90 % rel. hum
Storage Temperature Range
−20 °C - +70 °C
Storage Humidity Range
0 %…95 % rel. hum.
Included
1 x KK 13
1 x Safety Guide
