Neutrik NA2-IO-DLINE Bi-Directional Dante Audio Interface
Description
Description

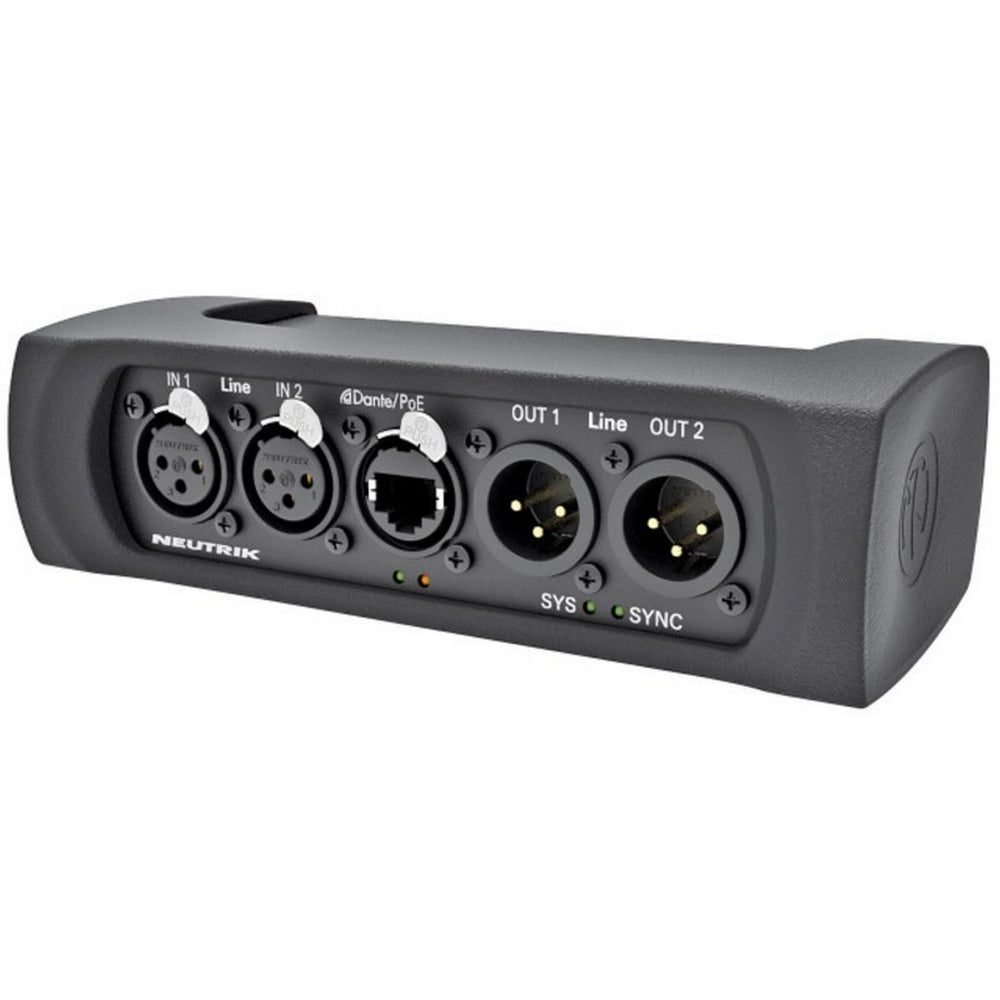

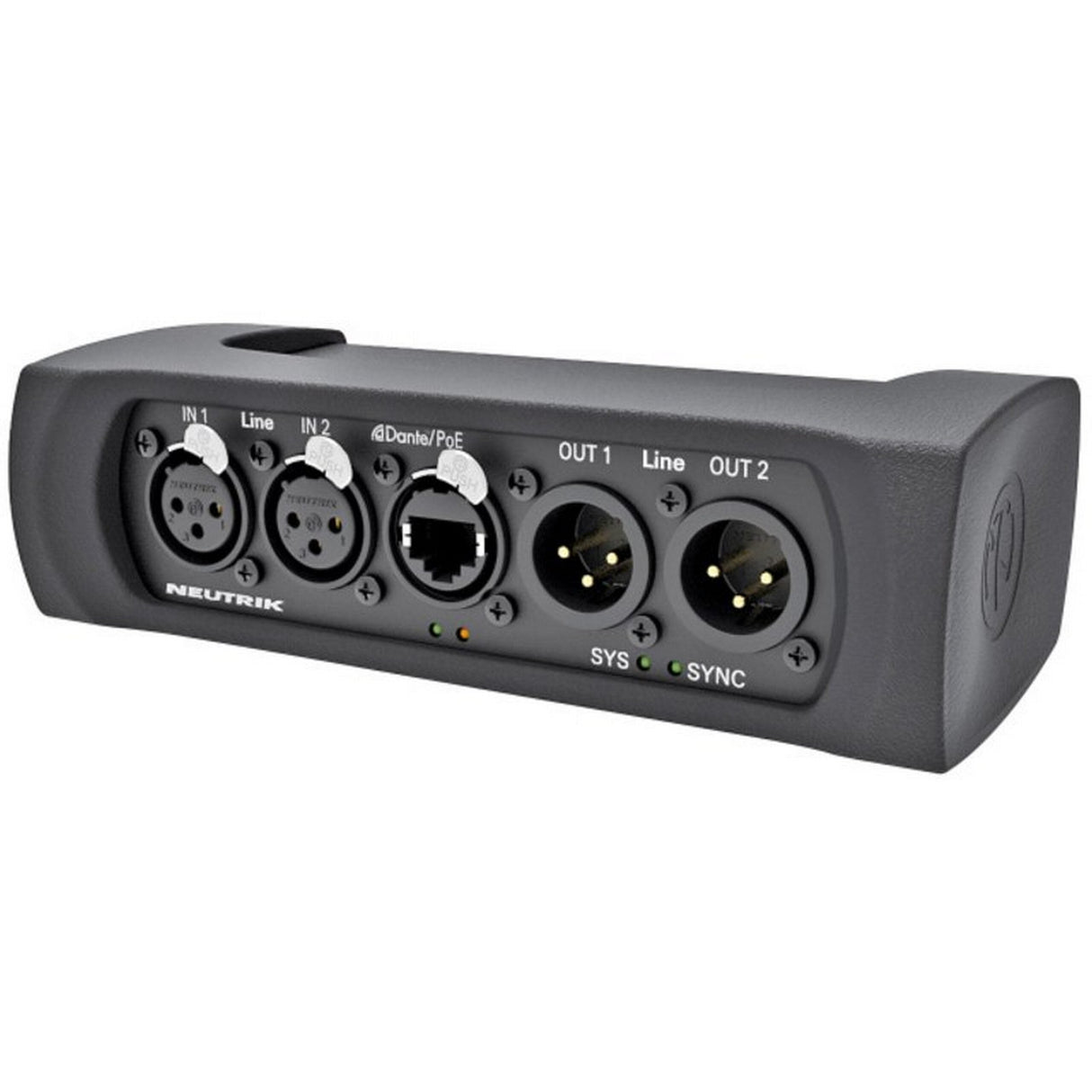

Neutrik NA2-IO-DLINE Bi-Directional Dante Audio Interface
Connect your legacy audio gear to the Dante world. The NA2-IO-DLINE is an end-of-network device. It is a breakout box which allows two channels of audio to be integrated into a Dante network. Simultaneously, NA2-IO-DLINE converts a Dante stream into analog audio signals. Hence, it is possible to use this tiny box to feed analog audio signals into the Dante network while at the same time receiving a mix from another Dante source.
Neutrik NA2-IO-DLINE is designed for harsh stage conditions. It therefore features lockable chassis connectors for both the audio and network connections. For fixed installations, the rubber protection can be removed. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, or in equipment racks.
Please note!
The Dante adapter can be connected to a Dante network via a standard 100 Mb/s twisted-pair Ethernet cable (CAT5e). This individual connection is responsible for the data transfer as well as for the power supply. Depending on the cable length and shield, we do not recommend installing cables parallel to power supply lines.
Key Features
- Connect analog audio equipment to a Dante network
- Heavy duty adapter for rugged stage conditions
- Lockable audio and network connections
- Convert up to two analog line signals to a Dante network
- Feed non Dante ready amplifiers, speakers or mixing desks with signals from the Dante network
- Requires a Power over Ethernet switch or a PoE injector (802.3 af/at; class 1)
- AES67 compliant
- Rack mountable
Technical Specifications
Dante specifications
Channels: 2 INPUTS (line level), 2 OUTPUTS (line level)
Supported sampling rates: 44.1 / 48 / 88.2 / 96 kHz
Bit depth: 16, 24 and 32 Bit
Latency: Depending on the network configuration, 1 ms (standard)
Ethernet connection: 100BASE-TX (PoE support)
Electrical specifications
Power consumption: < 2 watts
Power supply: PoE switch (Power over Ethernet) or
PoE injector (according to IEEE 802.3af/at, class 1)
Analog audio input
Input impedance 6.6 kOhm
Input level (balanced) Max. 22 dBu
Frequency response 20 Hz to 20 kHz (+/-0.5 dB)
Dynamic range > 100 dB
Signal-to-noise ratio > 100 dB
THD + noise: < 0.01 % @ + 4 dBu, A-weighting
Crosstalk < -80 dB @ 20 kHz
Analog audio output
Output impedance < 800 Ohm
Output level (balanced) Max. 16 dBu
Frequency response 20 Hz to 20 kHz (+/-0.5 dB)
Dynamic range > 100 dB
Signal-to-noise ratio > 100 dB
THD + noise: < 0.01 % @ + 4 dBu, A-weighting
Crosstalk < -80 dB @ 20 kHz
Weight
0.44 kg (1 pound)
Dimensions (with rubber protection)
L = 164 mm (6.3 inches)
B = 82 mm (3.2 inches)
H = 51 mm (2.0 inches)
Dimensions (without rubber protection)
L = 151 mm (5.9 inches)
B = 66 mm (2.6 inches)
H = 41 mm (1.6 inches)
Operating environment Indoor
Operating temperature -5C to +70C
Storage temperature -40C to +150C
