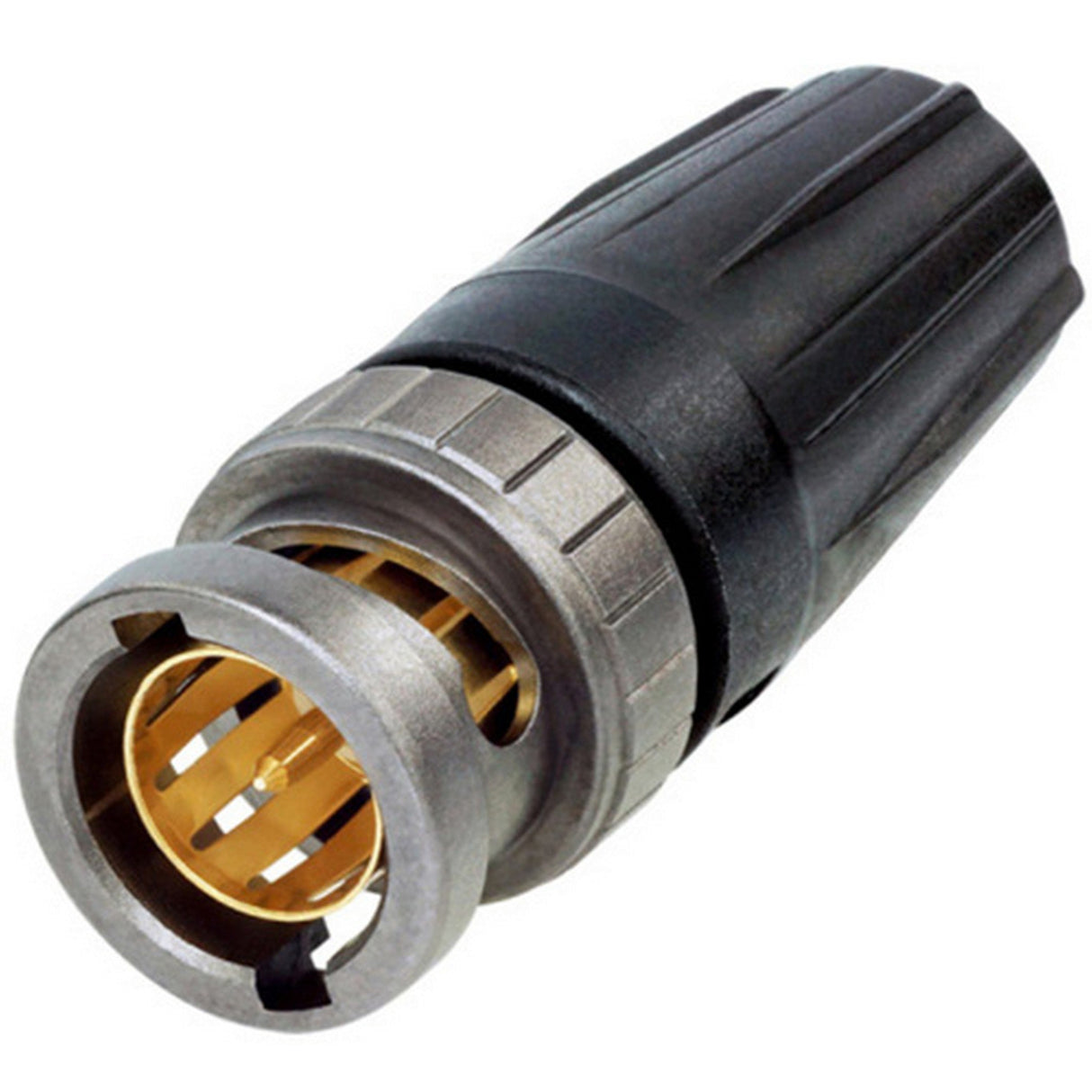

Neutrik NBNC75BDD6X 4K/8K 12G-SDI Rear TWIST UHD BNC Connector
The Neutrik NBNC75BDD6X rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Optimized Return Loss
Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Key Features
- Optimized contact pin and insulator design for UHD-data transmissions
- Proven rearTWIST technology
- Swiss antraloy plating
- Fully compatible with conventional BNC chassis connectors
- Improved return loss values at high frequencies
Technical Specifications
Electrical
Contact resistance
≤ 3 mΩ (inner)
Contact resistance
≤ 2 mΩ (outer)
Dielectric strength
1.5 kVdc
Impedance
75 Ω
Insulation resistance
> 5 GΩ
Rated voltage
< 50 V
VSWR
≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz
Mechanical
Cable O.D.
4.3 mm
Cable retention
> 30 N (center)
Crimp size
4.53 Hex crimp (shield)
Crimp size (pin)
1.07 crimp
Insertion force
< 25 N
Lifetime
> 1000 mating cycles
Wiresize
Locking device
Bayonett
Cable anchoring
Jacket crimping
Material
Contacts
Brass (CuZn35Pb2), 0.2 µm AuCo (center contact)
Shell
Brass (CuZn39Pb3)
Shell plating
Antraloy
Insert
PP
Environmental
Temperature range
- 30 Degrees C to +85 Degrees C
Contact crimpability
Complies with IEC 60803 and IEC 60352-2
