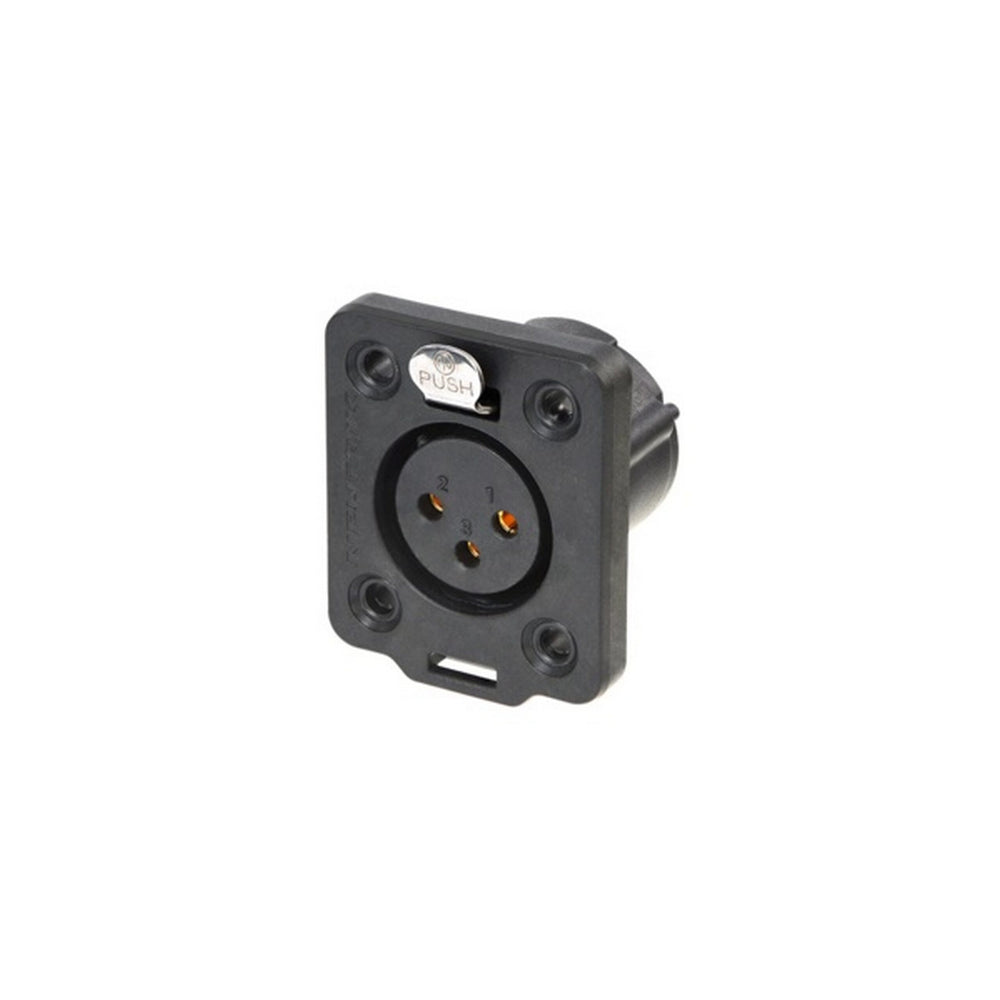

Neutrik NC3FDX-TOP 3-Pin XLR Female True Outdoor Protection
Neutrik NC3FDX-TOP 3-Pin XLR Female True Outdoor Protection
The Neutrik X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. Super rugged, Outdoor protected by mating with related cable connector of the XLR TOP range (IP65 and UL50E). Gold contacts are standard
Key Features
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)
- Uses high impact UV-resistant materials
- Maintains sealing when in use and when disconnected
Technical Specifications
Electrical
Capacitance between contacts
= 4 pF
Contact resistance
= 5 mO
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GO (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
= 20 N
Withdrawal force
= 20 N
Lifetime
> 5000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
Front mounting
Chassis shape
D
Material
Contact plating
0.2 æm Au over 2 æm Ni
Contacts
Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element
Stainless steel
Gasket
TPE
Shell Polyamide (PA 6.6 30 % GR)
