Neutrik  |  SKU: NEU-NC3MXXBAGD

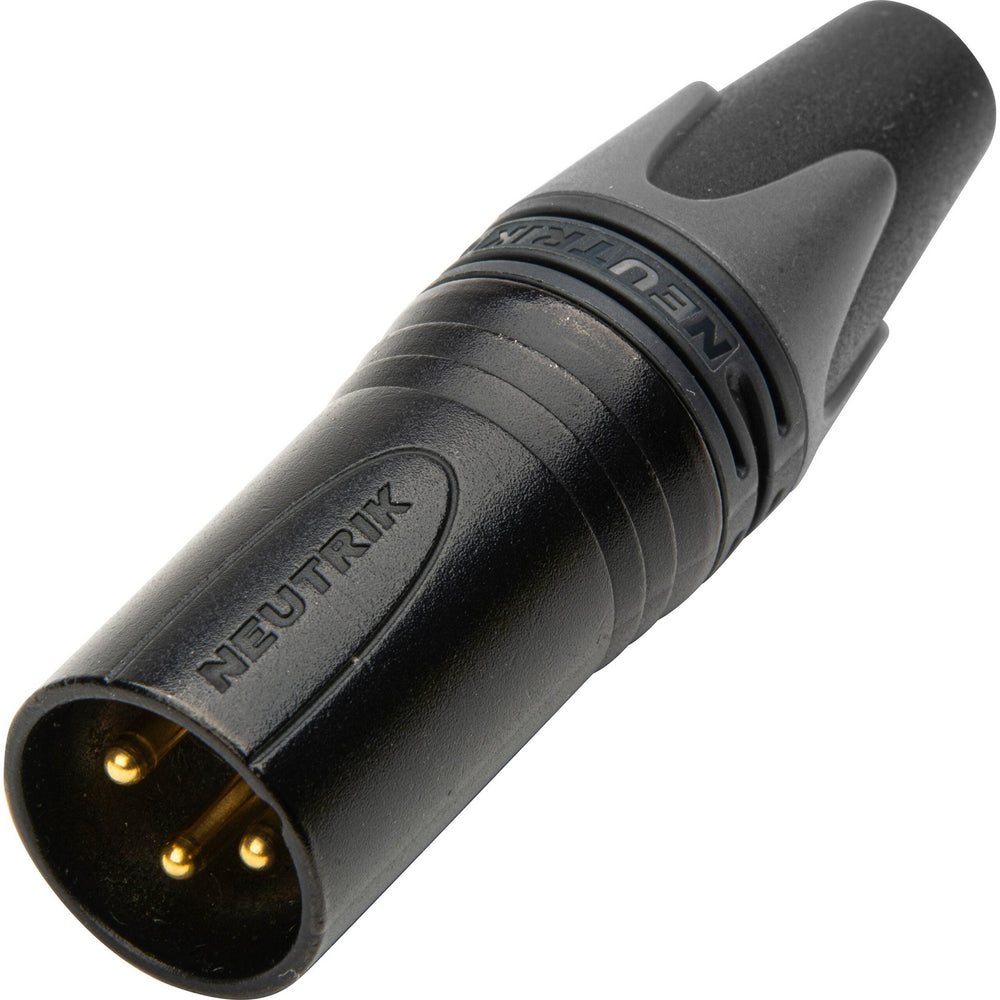

Neutrik NC3MXX-BAG-D 3-Pin Male XLR Connector Black/Silver, 100 Pack

$34900
🚚 Order within the next 2 hours, 15 minutes for delivery by 23 May, 2024.

Condition: New



Description

Neutrik NC3MXX-BAG-D 3-Pin Male XLR Connector Black/Silver, 100 Pack

Neutrik NC3MXX-BAG 3 pole male cable connector with black metal housing and silver contacts in a Bulk 100 pack.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Key Features

  • Male connector with improved locking recess without “window”, more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Specifications

Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Degrees C to +80 Degrees C
