The worldwide standard - In this series the male and female fit in the same hole cut out and are front or rear mountable. The “D-L-1” Series features a one-piece unit with solder cup terminations. It is RF protected via a 3-point coaxial ground contact to shell of the mated connector. This series is very cost effective. Accessories include male and female rubber dust covers (SCDF or SCDM), DBA blank plastic plate, and DSS color coded labeling plates. Call Us for Low Pricing on Neutrik Parts Not Listed!

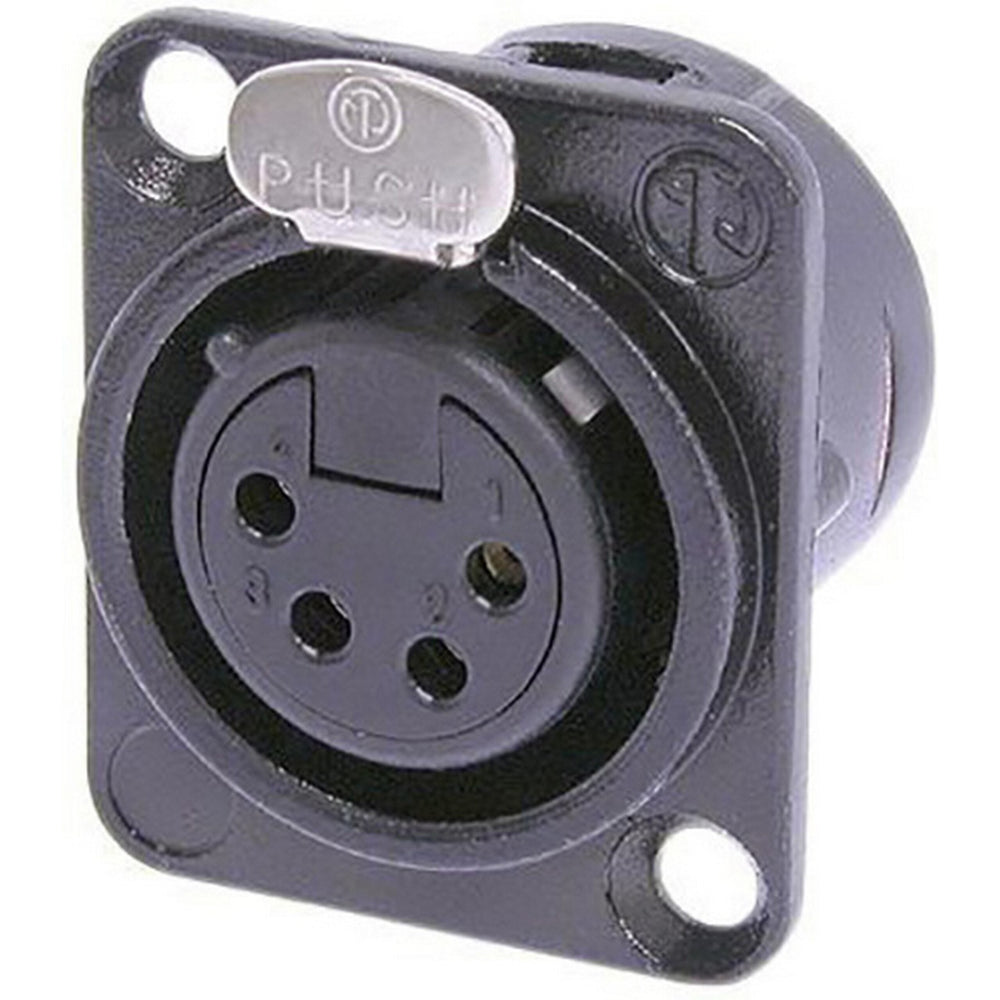

Universal D-size metal body XLR panel mount series. UL recognized component. 4 pole female receptacle, solder cups, black metal housing, gold contacts.

Key Features

• Robust “D” metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version

Technical Specifications

Product

Title
NC4FD-L-B-1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
10 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.5 mm²
Wiresize
max. 16 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA66)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
