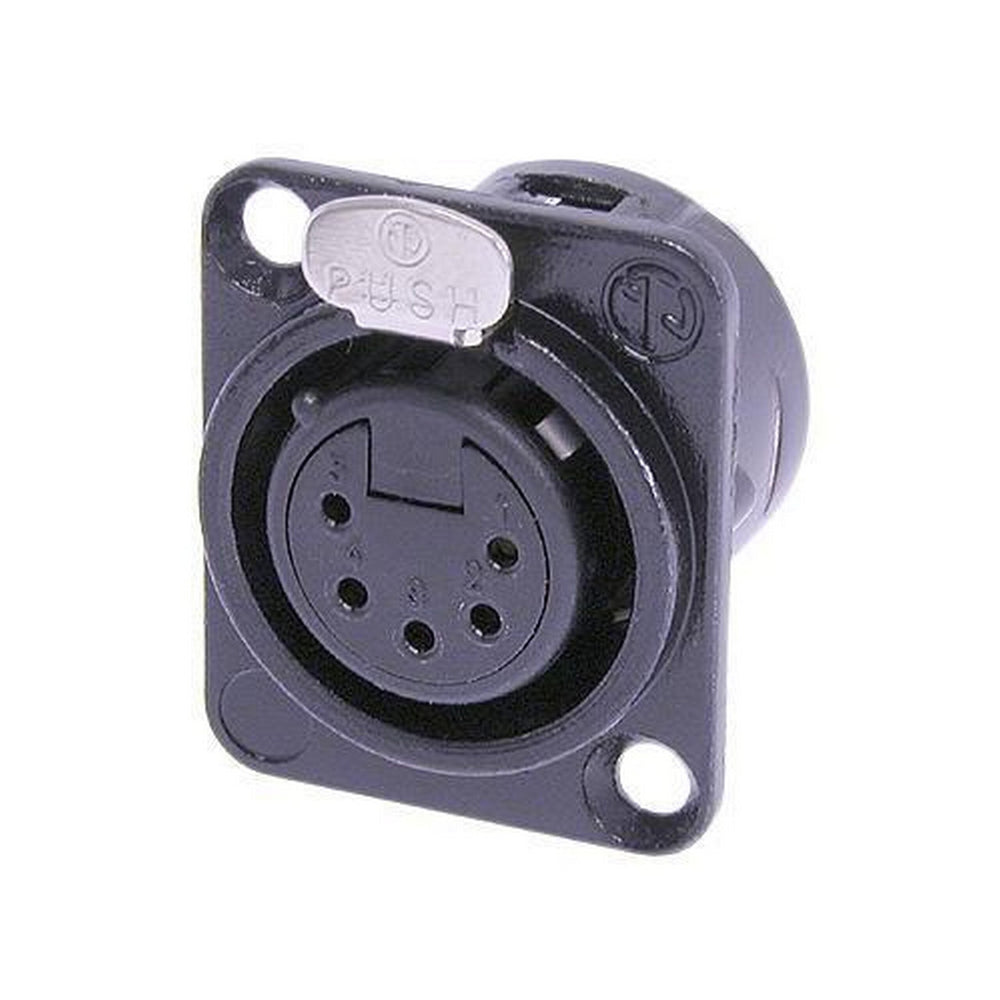

Neutrik NC5FD-L-B-1 5-Pin XLR Female Panel/Chassis Mount Connector, Black/Gold
Neutrik NC5FD-L-B-1 5-Pin XLR Female Panel/Chassis Mount Connector, Black/Gold is backordered. Please call for ETA 877-779-8964
Condition: New
Neutrik NC5FD-L-B-1 5-Pin XLR Female Panel/Chassis Mount Connector,...
Description
Description
Neutrik NC5FD-L-B-1 5-Pin XLR Female Panel/Chassis Mount Connector, Black/Gold
5 pole female receptacle, solder cups, black metal housing, gold contacts. Universal D-size metal body XLR panel mount series. UL recognized component.
Key Features
- Robust “D” metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
Technical Specifications
Title
NC5FD-L-B-1
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA66)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Degrees C to +80 Degrees C
