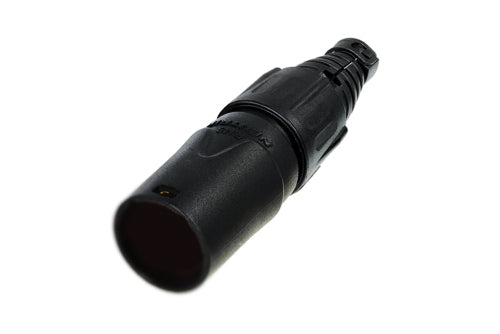

Neutrik NE8MX-B Cable End Connector Carrier X Series etherCON Shell Only, Black

Neutrik NE8MX-B Cable End Connector Carrier X Series etherCON Shell Only, Black

The NE8MX-B RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Also note! Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Key Features

• The RJ45 system for harsh and demanding environment
• Rugged diecast shell and unique chuck type strain relief
• Allows assembly of pre-assembled conventional RJ45 cables
• Cable connector carrier accepts the most common RJ45 plugs
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
• Accessories include color coded boots in 9 standard colors

Technical Specifications

Cable O.D.
Max. 8mm 0.315'
Insertion Force
≥20 N
Withdrawal Force
≥20 N
Lifetime
> 1000 mating cycles
Boot
Polyamide (PA 6)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Black chromium
Strain Relief
Polyacetal (POM)
Temperature Range
-22 Degrees F - 176 Degrees F (-30 Degrees C - 80 Degrees C)
