Neutrik NL4MPRXX Receptacle speakON XX Series 4 Pole Round Flange
Description
Description
Neutrik NL4MPRXX Receptacle speakON XX Series 4 Pole Round Flange
The Neutrik NL4MPRXX connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

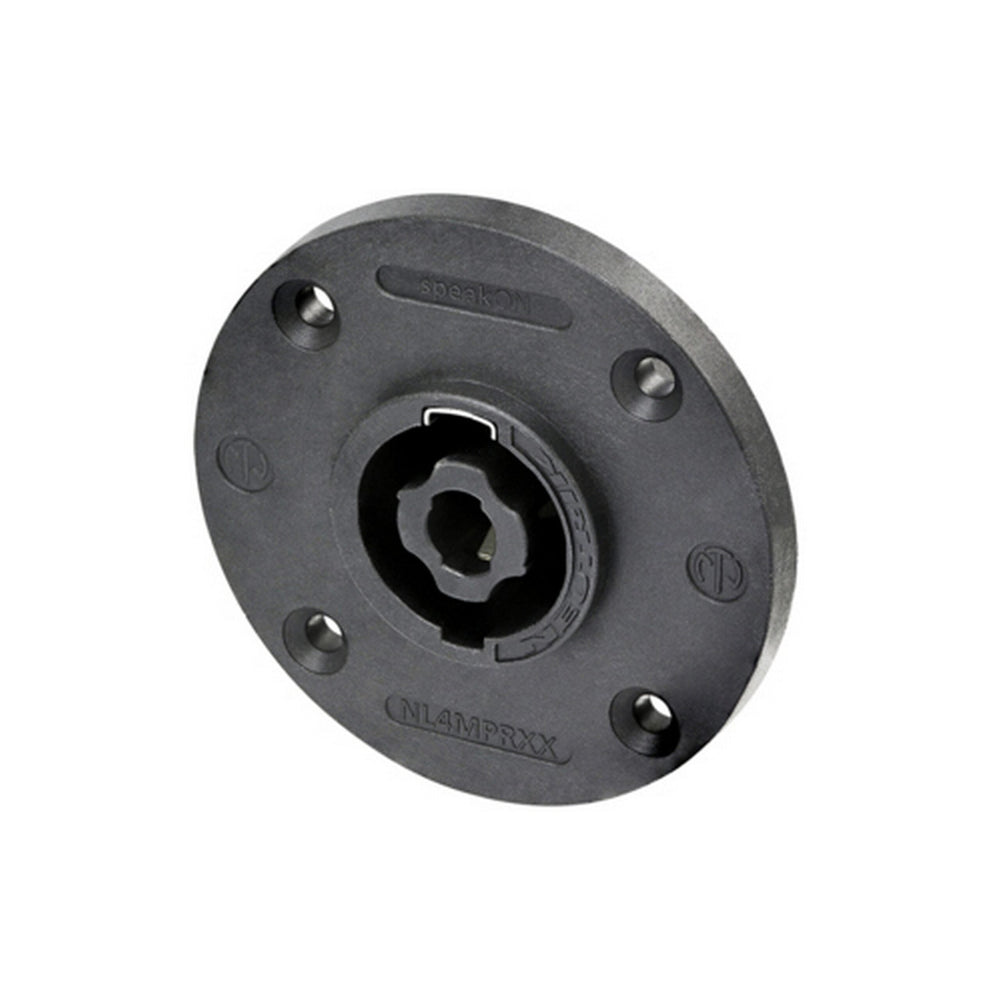

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16” flat tabs.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Key Features
- IEC 61984 certified > IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimized for speaker applications
Technical Specifications
Gender
male
Contact resistance
< 2 m OHMS
Dielectric strength
2.8 kVac
Insulation resistance
>0.1 GΩ (after dampheat)
Rated current per contact
25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage
250 V ac
Attention
speakON is NOT to be used as an AC mains or power supply connector!
Lifetime
> 5000 mating cycles
Termination
3/16” flat tabs (e.g., NLFASTON)
Locking device
Quick Lock
Chassis shape
Round G-size flange
Layout
Four thru holes
Contact plating
Ag
Locking element
Stainless Steel
Shell
Polyamide (PA 6.6)
Contacts
Copper Alloy
Flammability
UL94 V-0
Temperature range
-30 Degrees C to +80 Degrees C
