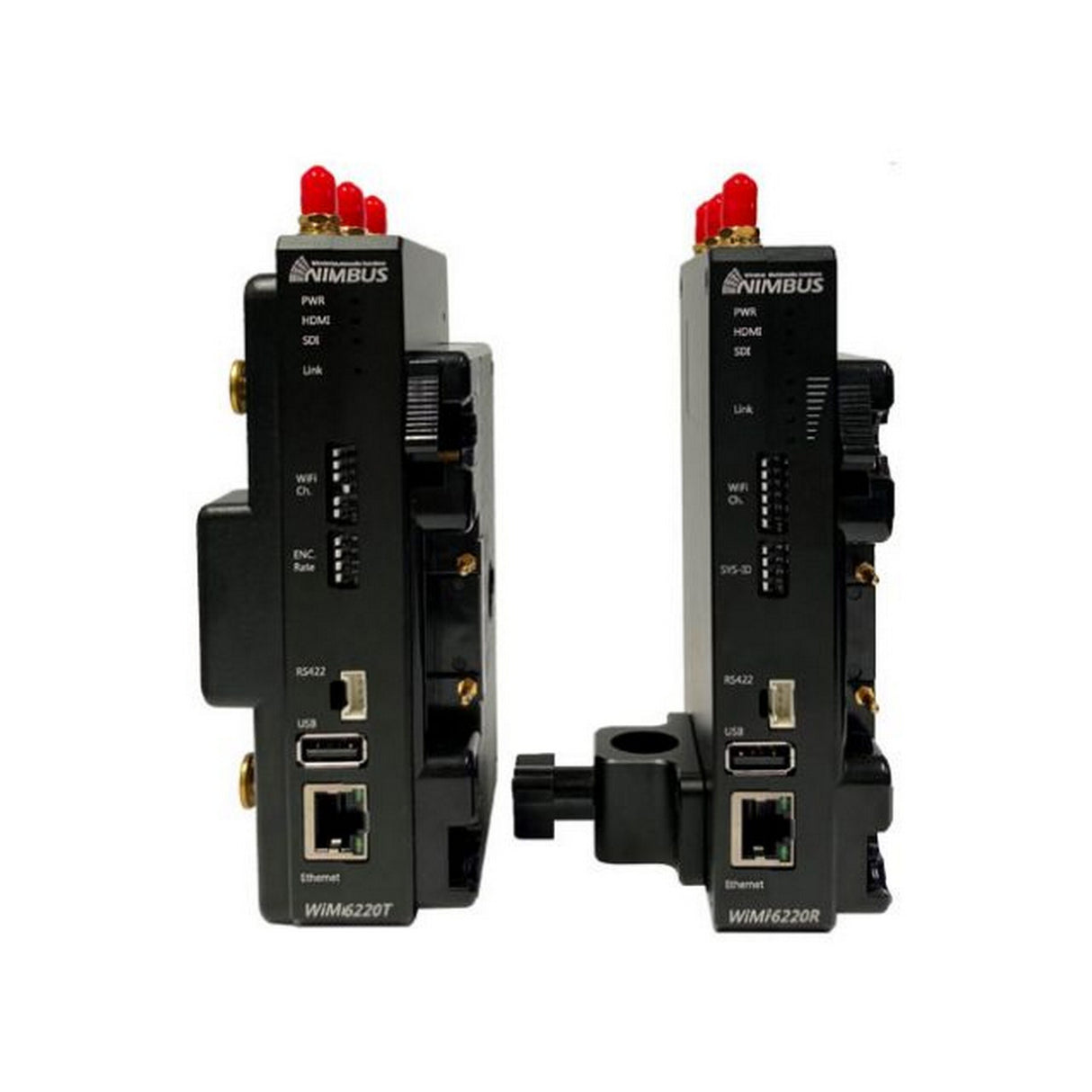

Nimbus WiMi6220 Wireless HD/3G-SDI/HDMI Low Latency System, Gold Mount

Nimbus WiMi6220 Wireless HD/3G-SDI/HDMI Low Latency System, Gold Mount

WiMi6220 - Wireless HD/3G-SDI/HDMI Low Latency System (Gold Mount)

Key Features

• Full HD sender (Wireless or Ethernet)
• H.264 (MPEG-4 Parts10 : AVC)
• Baseline Profile with level 4.2
• Low delay (40ms), end-toend (80ms), H.264 engine
• Transport 1080p60 full HD over wireless/Ethernet
• SD/HD/3G-SDI video in/out with embedded audio
• HDMI video in/out with embedded audio
• Selection of encoding rate & Wi-Fi frequencies
• 2-way talk-back audio channel for embedded wireless audio
• 480i59.94, 576i/50, 720p60/59.94/50/30/29.97/25/24/23.98,
• 1080i60/59.94/50, 1080p60/59.94/50/30/29.97/25/24/23.98 and PsF format
• Live streaming from broadcast/DSLR camera over wireless/Internet
• Full HD live streaming server on transmitter & receiver
• RTSP streaming server (RTP/UDP)
• MPEG2TS streaming (UDP)
• Relay streaming server (RTSP/MPEG2TS) on the receiver
• Comfortable & wide coverage over wireless /Internet
• Wireless: up to 1,500m (5,000 ft) @ line of sight
• Wide Wi-Fi radio channel: 12 Ch. @ 40MHz, 24 Ch. @20MHz
• Small form factor (Enclosure): 144 x 91 x 26 (mm)
• DC input range & Power: 6.8V ~ 16V, 11W (TX), 10W (RX)
