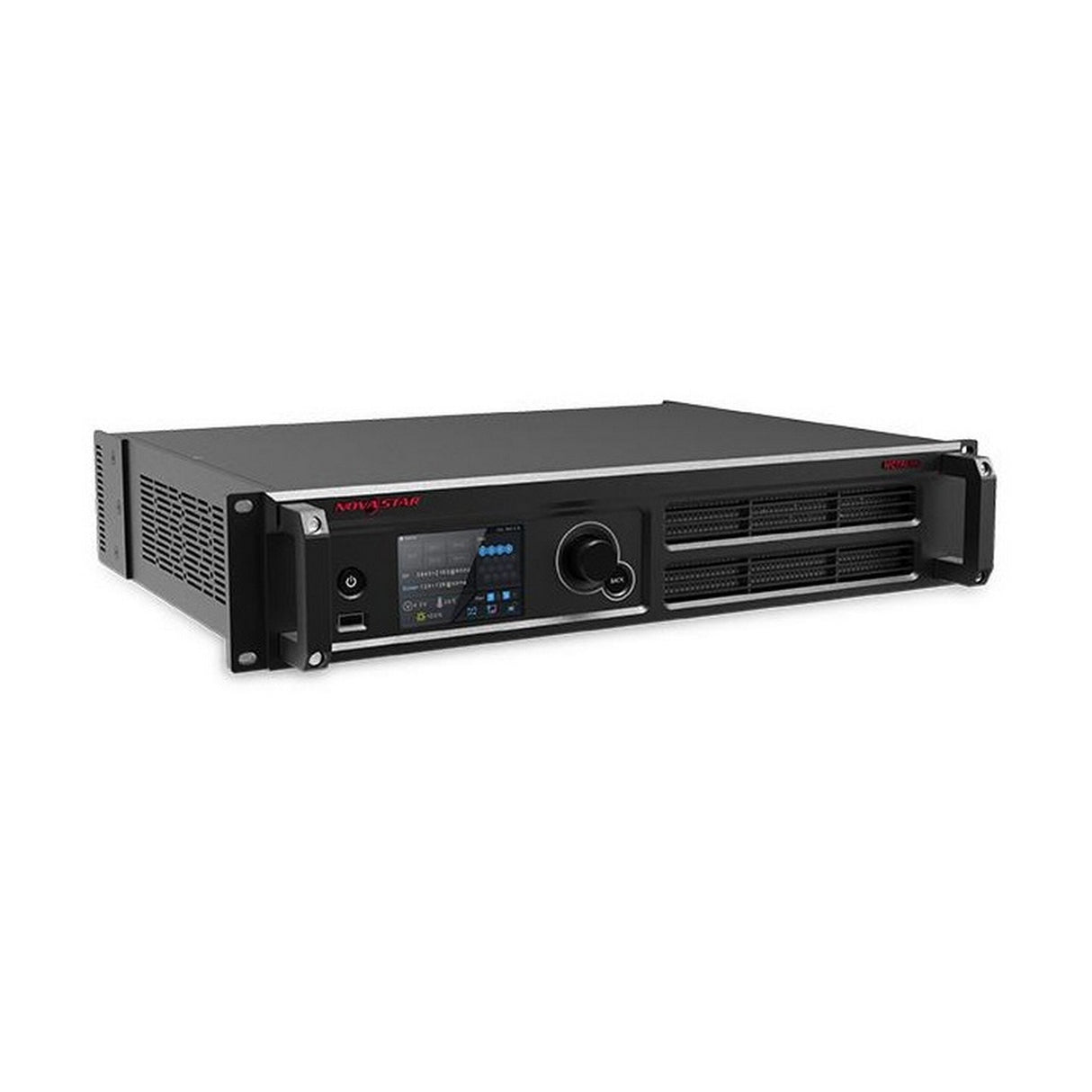

NovaStar MCTRL4K 4K 60Hz Independent Controller
Description
Description
NovaStar MCTRL4K 4K 60Hz Independent Controller
With up to 3840-2160@60Hz loading capacity of a single unit, MCTRL4K can support any custom resolution within this range as required, thus meeting the on-site configuration requirements of super-long or super-large LED displays. In multi-card mode, the MCTRL4K can be used as two independent controllers, making the images of two input sources perfectly displayed on the screen.
Key Features
- Product Type: Independent Controller
- Input Resolution: Up to 3840x2160 @ 60Hz
- Capacity: 8.3 million pixels
- Control Method: USB/TCP/IP
- Video Interface: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2
- Audio Interface: HDMI
- Video Format: RGB, YCrCb4:4:4, YCrCb4:2:2, YCrCb4:2:0
- Output Interface: Neutrik EtherCON - 16 / OPT Ports - 4
- Bit Depth Of Video Resource: 8/10/12bit
Technical Specifications
Connectors
Input
DP 1.2, HDMI 2.0, DUAL DVI-D1, DUAL DVI-D2
Output
16 Neutrik (NE8FBH) Gigabit Ethernet outputs, OPT1-4
Genlock In/Loop
Weight & Dimensions
Dimensions
482.6 372.0 -96.0 mm
Weight
4.6 kg
Control
ETHERNET (PC)
USB IN/OUT (PC, cascading)
Power & Current
100-240VAC, 50-60 Hertz
Power Consumption
30W
Thermal
Max. Operating Temp.
-20C-60C
Operating Humidity
10% RH-90% RH
