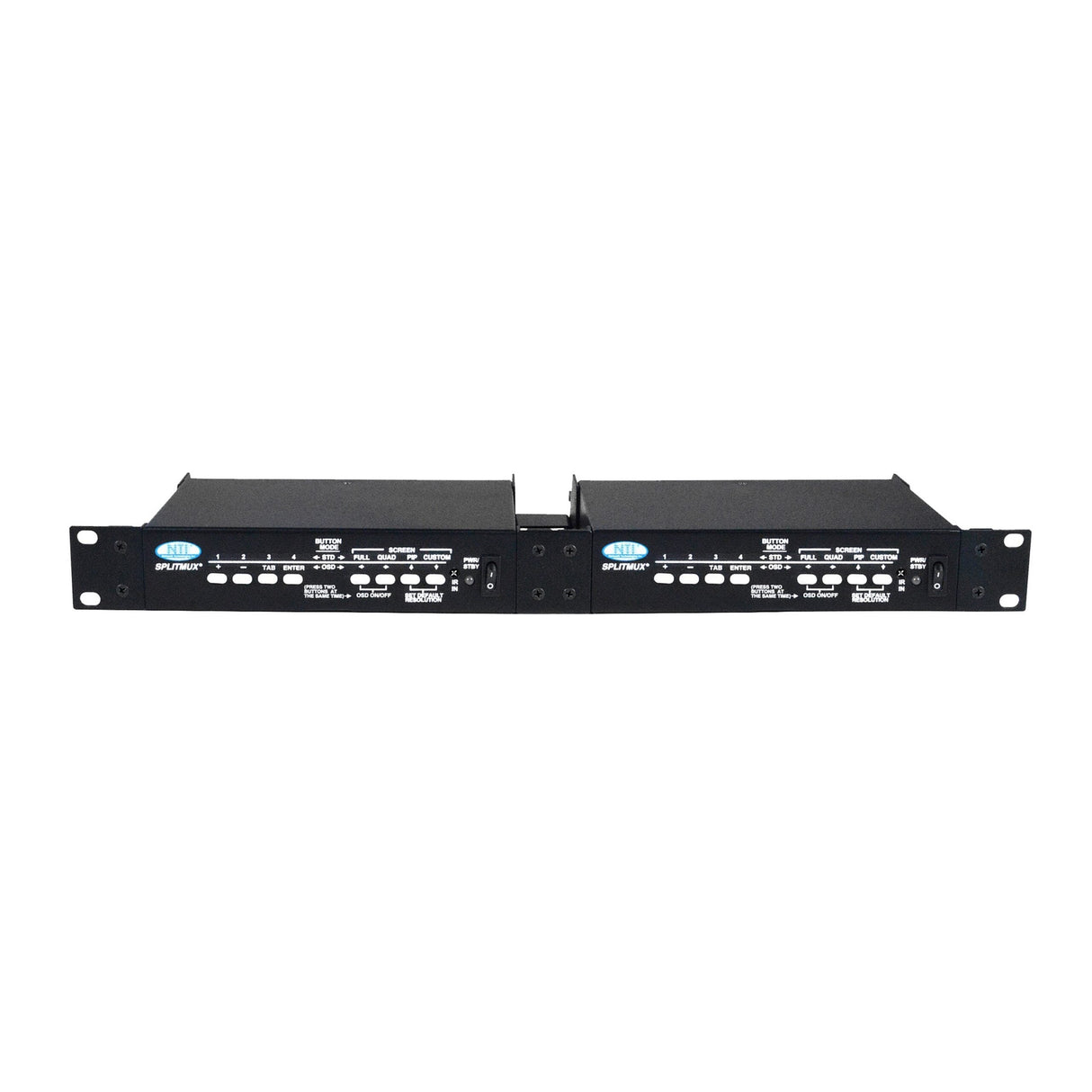

NTI SPLITMUX-4K-4RT-2R 4K HDMI Quad Screen Multiviewer, 1RU Dual Side-By-Side

NTI SPLITMUX-4K-4RT-2R 4K HDMI Quad Screen Multiviewer, 1RU Dual Side-By-Side

The SPLITMUX 4K HDMI Quad Screen Multiviewer allows you to simultaneously display real-time video from four different sources on a single HDMI Ultra-HD 4Kx2K monitor. It is capable of displaying the video signals in quad, PiP, full, or custom mode. In quad and full screen display modes, the multiviewer supports 4K, 2K, 1080p, and 2560x1600 output resolutions. In picture-in-picture and custom display modes, it supports 2K, 1080p, and 1920x1200 output resolutions.

Key Features

• Quad, Picture in Picture, Full Screen, and Custom display modes (Custom Display Mode: the size, position and selection of any or all windows are customizable)
• 2- and 3-source viewing is possible with this method
• Maintain input aspect ratio if desired - no stretching necessary
• Layer display windows and adjust transparency of each video source display
• Inputs: 2K resolution 2048x1080, HDTV resolutions to 1080p and computer resolutions to 1920x1200

Technical Specifications

Video Input
Four female HDMI connectors.
Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supported video input resolutions
2K Cinema (2048x1080 @ 60Hz).
HDTV resolutions to 1080p.
Computer resolutions to 1920x1200.
Supports HDCP 1.4.
Video Output
One female HDMI connector.
Supported video output resolutions
Quad and Full mode
Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz).
2K Cinema (2048x1080 @ 60Hz).
HDTV resolutions to 1080p.
Computer resolutions to 2560x1600.
PiP and Custom mode
2K Cinema (2048x1080 @ 60Hz).
HDTV resolutions to 1080p.
Computer resolutions to 1920x1200.
HDMI-embedded audio switching (four-channel stereo mixing).
Supports HDCP 2.2.
Protocols
HTTP, HTTPS.
TCP/IP, DHCP, UDP, ARP.
IPV4.
Power
110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
Power consumption
20W.
Environmental
Operating temperature
32F to 122F (0C to 50C).
Storage temperature
-22F to 140F (-30C to 60C).
Operating and storage relative humidity
17 to 90% non-condensing RH.
Dimensions WxDxH (in)
Without rackmount kit
7.35x4.98x1.75 (187x126x45 mm).
With rackmount kit
19x4.98x1.75 (483x126x45 mm) (excludes cable tray).
Can be mounted so that the front panel buttons are facing the front or back of the rack.
Includes cable management tray.
Adds 3.37" to the depth.
Regulatory Approval
CE, RoHS, TAA compliant.
Item Includes
1x SPLITMUX-4K-4RT-2R Multiviewer
1x country-specific power cord
1x DB9 female to RJ45 female adapter
1x 5-ft CAT5 super flat patch cable
1x IR remote control with two AAA batteries
1x CD that contains the manual and the NTI Discovery Tool
6x ear brackets
2x short rack ears
1x cable tray connector
2x connector plates
2x cable trays
28x flat head screws
